Product Overview
The Bently Nevada 330980-50-00 3300 XL NSv Proximitor Sensor provides accurate non-contact displacement measurements for rotating machinery. Moreover, it integrates seamlessly with 3300 RAM or 3300 NSv Proximity Probes using extension cables. Its compact, lightweight design allows both panel mount and high-density installations without requiring additional modifications.
Functional Highlights
- Wide Operating Range: Functions reliably from -52°C to +100°C (-62°F to +212°F).
- Durable Construction: Industrial-grade materials provide resistance to vibration and humidity.
- High Accuracy: Maintains stable output voltage with minimal influence from environmental changes.
- Flexible Installation: Can easily integrate into existing condition monitoring systems.
- Probe Compatibility: Supports both 3300 RAM and 3300 NSv Proximity Probes for precise readings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330980-50-00 |
| Total Length & Mounting | 5.0 meters, panel mount |
| Proximitor Input | Accepts one 3300 RAM or 3300 NSv Proximity Probe |
| Power Requirements | Without barriers: -17.5 Vdc to -26 Vdc, 12 mA max With barriers: -23 Vdc to -26 Vdc |
| Supply Sensitivity | <2 mV per volt input change |
| Output Resistance | 50 Ω |
| System Weight | 255 g (9 oz) |
| Operating Temperature | -52°C to +100°C (-62°F to +212°F) |
| Storage Temperature | -52°C to +105°C (-62°F to +221°F) |
| Relative Humidity | 100% condensing, non-submersible (with protected connectors) |

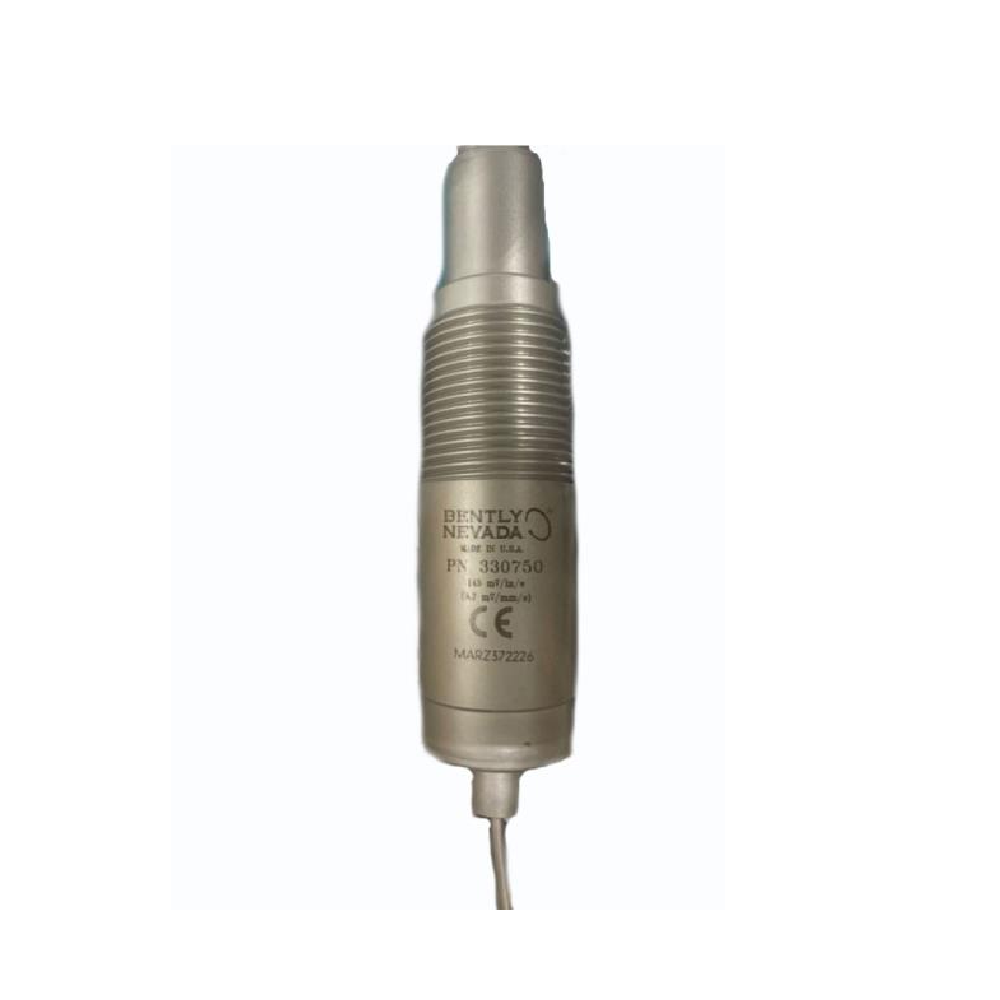

Bently Nevada 330750-40 | High Temperature Velomitor System
Description & Overview
The 330750-40 High Temperature Velomitor System is engineered for extreme industrial environments, enduring surface temperatures up to +400°C (+752°F). In addition, the sensor head and cable are permanently connected, removing connectors and improving reliability. Internal electronics operate from -55°C to +121°C (-67°F to +250°F), while signal conditioning can be placed in cooler areas for optimal performance.
Technical Data
| Parameter | Specification |
|---|---|
| Sensitivity | 5.7 mV/mm/s (145 mV/in/s) ±5% |
| Frequency Response | 15-2000 Hz ±3.0 dB / 20-1000 Hz ±0.9 dB |
| Transient Temperature Sensitivity | 0.0762 mm/s/°C (0.003 in/s/°C) |
| Amplitude Range | 635 mm/s peak <680 Hz / 2940 m/s² peak >680 Hz |
| Output Bias Voltage | -12 ±2.0 VDC |
| Grounding | Case Isolated |
| Maximum Cable Length | 305 meters (1000 feet) without signal degradation |
| Temperature Range | Sensing Head & Cable: -55°C to +400°C Electronics: -55°C to +121°C |
| Shock Survivability | 24,535 m/s² (2500 g) peak |
| Humidity | 100%, non-submerged; hermetically sealed case |
| Weight | 2m: 635 g / 4m: 794 g / 6m: 953 g / 8m: 1,111 g |
| Case Material | 300-series stainless steel |
| Connector | 2-pin Mil-C-5015, hermetically sealed |
Applications & System Integration
- High-Temperature Monitoring: Measures vibration reliably on turbines, compressors, and industrial machinery.
- Extreme Conditions: Functions under harsh environments with high shock, temperature, and humidity.
- Industrial Safety: Moreover, the integrated design reduces failure points in critical operations.
- Flexible Signal Conditioning: Allows electronics placement in cooler areas while sensing in high-temperature zones.
Details
| Weight | 0.794 kg |
|---|
