Product Overview

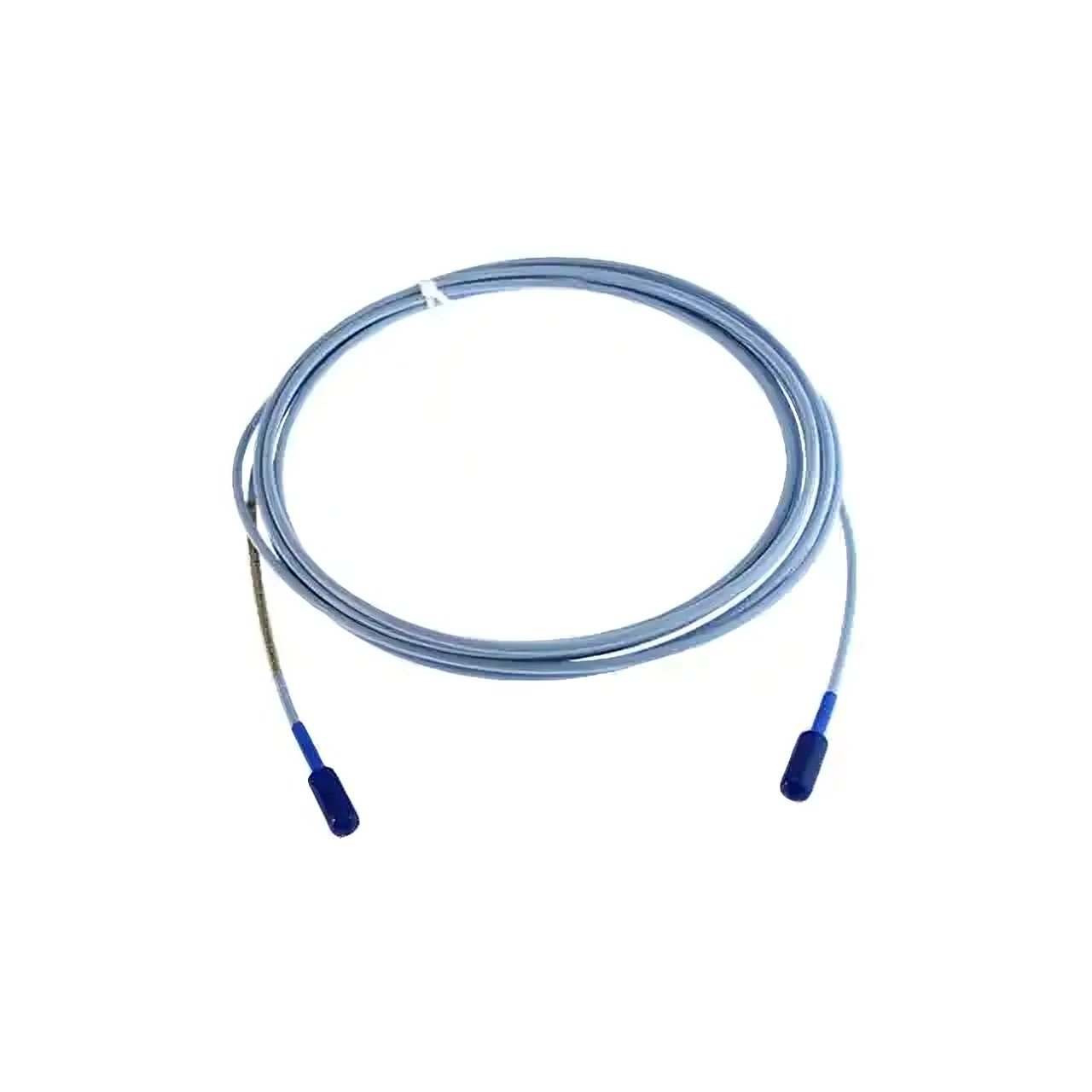

The Bently Nevada 330910-06-25-05-11-00 3300 NSv Probe is designed for high-precision, non-contact vibration and displacement measurements in rotating machinery. Built with an M10x1 threaded case and armored FluidLoc cable, it ensures excellent durability and stable signal transmission under harsh environmental conditions.
Moreover, its stainless-steel body and FEP insulation provide long-term resistance against heat, moisture, and mechanical wear. Therefore, it is an ideal choice for predictive maintenance systems in turbines, compressors, and high-speed rotating equipment.
Functional Highlights
This probe combines mechanical robustness with superior electrical stability. The FluidLoc cable prevents moisture intrusion, extending the probe’s lifespan in humid or oil-rich environments. In addition, the ClickLoc connector ensures secure coupling, reducing downtime during installation and service.
Key Benefits:
- Accurate, real-time vibration and displacement data
- Rugged stainless-steel (AISI 304) housing for reliability
- Wide operating temperature range: -52°C to +177°C
- Armored cable design for enhanced mechanical protection
- Fully compatible with Bently Nevada 3300 NSv system components
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330910-06-25-05-11-00 |
| Type | 3300 NSv Probe with Armor |
| Thread Type | M10x1 |
| Maximum Thread Engagement | 15 mm |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 304 stainless steel |
| Cable Type | 75Ω coaxial, FEP insulated |
| Available Cable Lengths | 0.5 m, 1 m, 5 m, or 7 m |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Weight (Typical) | 14–150 g (0.5–5.3 oz) |
| Connector | Miniature coaxial ClickLoc with protector |
| Seal Type | Viton® O-ring, FluidLoc cable seal |
| Part Breakdown | 06 (60 mm) / 25 (250 mm) / 05 (0.5 m) / 11 (ClickLoc) / 00 (No approval) |
Furthermore, prolonged operation below -34°C may lead to premature seal degradation; therefore, maintaining optimal temperature conditions ensures extended service life.
System Integration
The Bently Nevada 330910-06-25-05-11-00 integrates seamlessly with 3300 NSv proximity systems, delivering consistent signal integrity across various monitoring setups. For instance, it is widely used in compressor stages, gearbox shafts, and other confined machinery where smaller probes are required.
Common Application Areas:
- Turbine and compressor vibration monitoring
- Machine health diagnostics in petrochemical plants
- Condition monitoring in power generation systems
- Critical process equipment protection
In addition, its compact size and armored construction make it suitable for tight installation zones where high sensitivity is still essential.
Details
| Weight | 0.15 kg |
|---|
