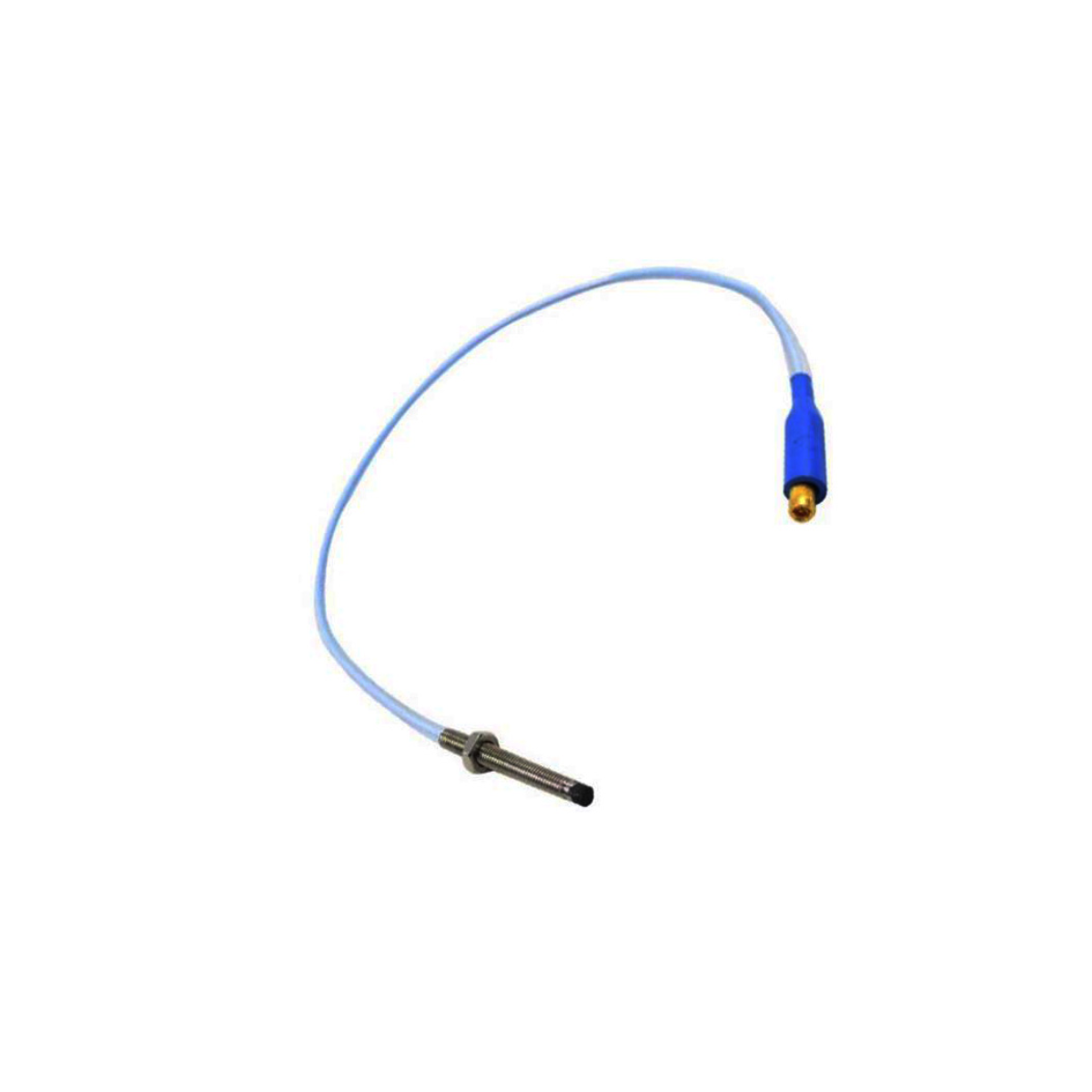

The Bently Nevada 330901-00-96-10-02-05 is a precision 3300 NSv Probe designed for non-contact vibration and displacement measurement. It ensures accurate readings for rotating machinery and industrial monitoring systems.
This probe operates reliably under extreme temperatures, providing durability and stable performance. Its compact design simplifies installation while maintaining high measurement accuracy.
Key Features
- High-precision 3300 NSv Probe for industrial vibration monitoring
- Operating temperature ranges from -52°C to +177°C (-62°F to +351°F)
- Miniature coaxial ClickLoc connector with standard cable ensures secure connections
- Lightweight design: 14–150 g depending on probe length
- Viton O-ring seals probe for pressure applications (not pressure-tested by default)
- Threaded 1/4-28 UNF for standard installations
- Supports multiple agency approvals for compliance in industrial environments
Technical Specifications
| Feature | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product ID | 330901-00-96-10-02-05 |
| Product Type | 3300 NSv Probe |
| Thread Type | 1/4-28 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 9.9 in (96 mm) |
| Total Length | 1.0 meter (39 in) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard cable |
| Agency Approval | Multiple Approvals |
| Probe Weight | 14–150 g (0.5–5.3 oz) depending on length |
| Linear Range | 1.5 mm (60 mils) |
| Recommended Gap | 1.0 mm (40 mils) |
| Maximum Field Wiring Length | 305 meters (1,000 feet) |
| Thread Engagement Limit | 0.375 in |
Electrical Specifications
| Specification | Details |
|---|---|
| Power Supply | -17.5 Vdc to -26 Vdc (without barriers), -23 Vdc to -26 Vdc (with barriers) |
| Supply Sensitivity | <2 mV change per volt input |
| Output Resistance | 50 Ω |
| Probe DC Resistance | 4.0–5.9 Ω depending on length |
| Extension Cable Resistance | 0.220 Ω/m (center), 0.066 Ω/m (shield) |
| Extension Cable Capacitance | 69.9 pF/m typical |
Ordering Information
The Bently Nevada 330901 series allows custom configurations via the code 330901-AA-BB-CC-DD-EE. Users can select unthreaded length, case length, total length, connector type, and approvals.
Configuration Options:
- A (Unthreaded Length): 00 = 0.0 in
- B (Overall Case Length): 96 = 9.9 in
- C (Total Length): 10 = 1.0 meter (39 in)
- D (Connector & Cable Type): 02 = Miniature coaxial ClickLoc connector, standard cable
- E (Agency Approval): 05 = Multiple Approvals
Details
| Weight | 0.15 kg |
|---|
