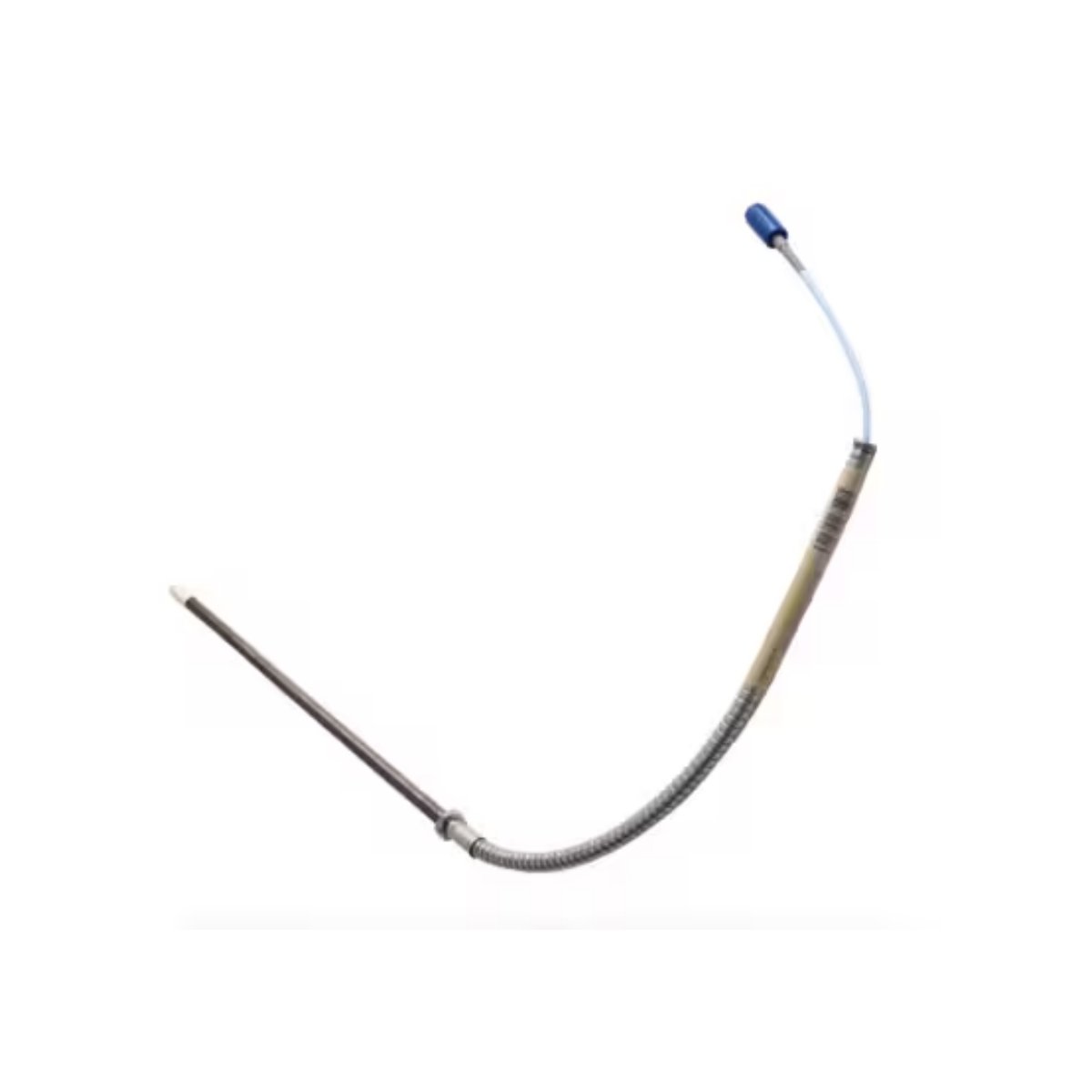

The 330901-00-90-05-02-00 from Bently Nevada provides precise shaft displacement measurements in industrial machinery. Part of the 3300 NSv series, this 5 mm probe delivers high sensitivity and reliability for turbines, compressors, motors, and pumps in challenging environments.
High-Precision Measurement and Sensitivity
The 330901-00-90-05-02-00 measures displacement over a range of 0.25 to 2.75 mm with a linear range of 0.25 to 2.03 mm. Sensitivity reaches 7.87 mV/µm (200 mV/mil), enabling highly accurate monitoring for critical applications.
Rugged Mechanical and Environmental Design
Engineered for harsh conditions, this probe withstands operating temperatures from –35°C to +177°C and storage up to –51°C to +177°C. It tolerates pressures up to 10,000 psi (68,947 kPa) and 100% condensing relative humidity, ensuring reliable performance in extreme industrial environments.
Connector and Cabling
The 330901-00-90-05-02-00 includes a 5-meter extension cable with a miniature ClickLoc connector. The total system length reaches 9 meters, allowing flexible installation with threaded, reverse-mounted, or clamp options.
Electrical and Frequency Performance
This probe maintains a 0–10 kHz frequency response, ensuring accurate dynamic measurement in high-speed machinery. Its voltage output provides a direct signal proportional to the shaft displacement, supporting real-time system monitoring.
Certifications and Compliance
Bently Nevada certifies this probe under CSA, ATEX, IECEx, and various regional standards, making it suitable for hazardous areas worldwide.
Technical Specifications
General Information
- Manufacturer: Bently Nevada
- Model: 330901-00-90-05-02-00
- Series: 3300 NSv Proximity Probe
- Approvals: CSA, ATEX, IECEx, regional certifications
Mechanical Properties
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 5 mm |
| Extension Cable Length | 5 m |
| Total System Length | 9 m |
| Mounting Options | Threaded, reverse-mounted, clamp |
| Connector | Miniature ClickLoc |
Electrical & Performance
| Parameter | Value |
|---|---|
| Measurement Range | 0.25–2.75 mm |
| Linear Range | 0.25–2.03 mm |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Frequency Response | 0–10 kHz |
| Output Signal | Voltage proportional to gap distance |
Environmental Properties
| Parameter | Value |
|---|---|
| Operating Temperature | –35°C to +177°C |
| Storage Temperature | –51°C to +177°C |
| Pressure Rating | Up to 10,000 psi (68,947 kPa) |
| Relative Humidity | 100% condensing |
Origin
- Country of Manufacture: USA
Size & Weight
- Probe Tip Diameter: 5 mm
- Extension Cable Length: 5 m
- Total System Length: 9 m
Details
| Weight | 0.3 kg |
|---|
