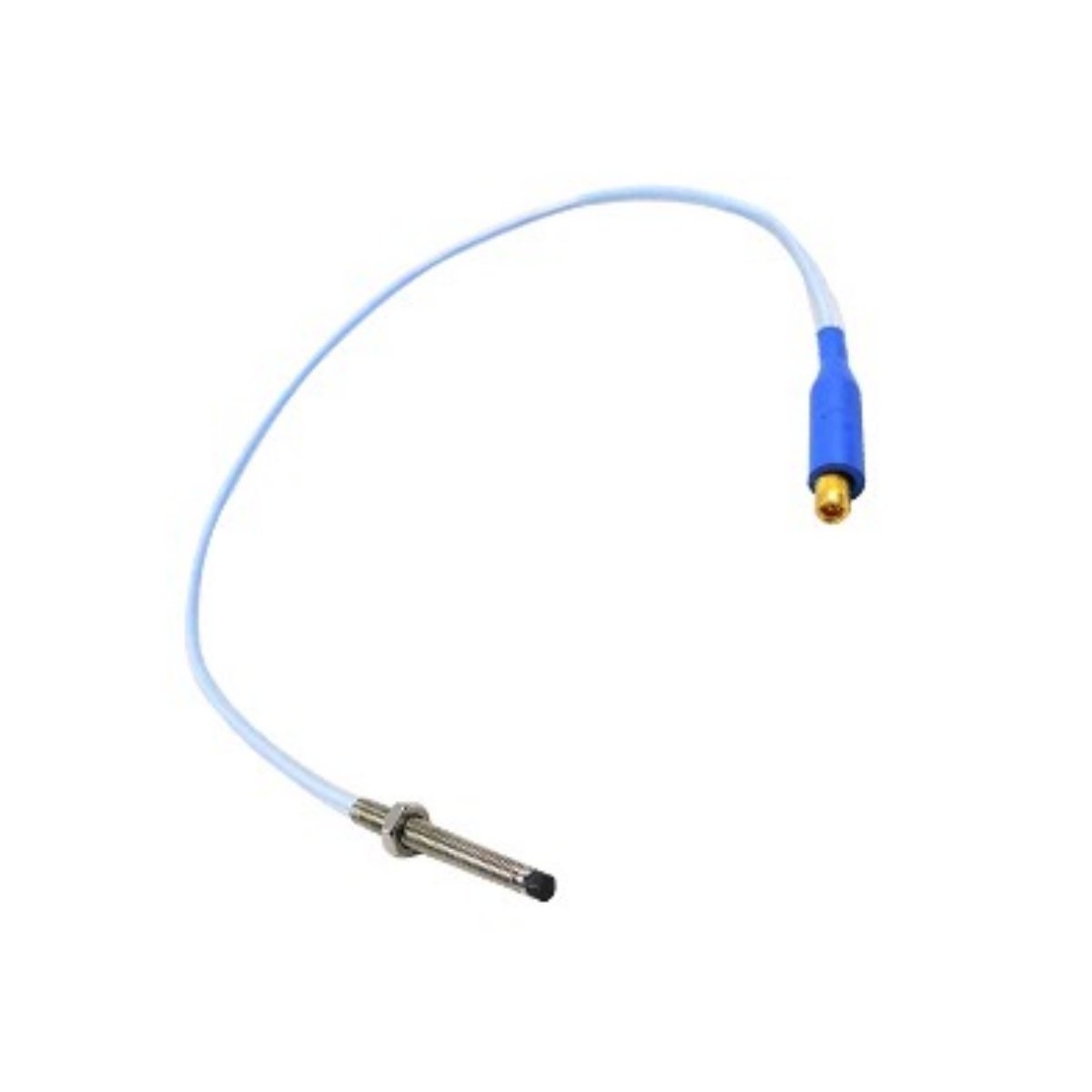

The 330901-00-30-10-02-00 proximity probe from Bently Nevada provides precise displacement measurements for rotating machinery in industrial environments. As part of the 3300 NSv series, this probe delivers high sensitivity and excellent system accuracy, making it ideal for turbines, compressors, motors, and small pumps.
High-Precision Measurement
The 330901-00-30-10-02-00 features a linear range of 0.050 inches (1.27 mm) with system accuracy of ±1.0 mil (±25.4 μm). Its voltage output is proportional to the measured gap, ensuring reliable monitoring and real-time diagnostics.
Rugged Mechanical Design
This probe has a 30-inch length with a 0.5-inch unthreaded tip and a 3/8-24 UNF thread. Engineers can choose armored or non-armored cable options depending on environmental and installation requirements. The probe withstands extreme temperatures from –51°C to +177°C (–60°F to +350°F).
Electrical and Performance Features
The operates with a –24 VDC to –30 VDC power supply and maintains a frequency response from 0 to 10 kHz. Sensitivity reaches 7.87 mV/mil (200 mV/mm), supporting precise vibration and displacement analysis in critical applications.
Certifications and Applications
Bently Nevada certifies this probe under CSA, ATEX, and IECEx standards for hazardous locations. Common applications include small pumps, gearboxes, turbines, compressors, and industrial motors. Flexible mounting options allow seamless integration in complex systems.
Technical Specifications
General Information
- Manufacturer: Bently Nevada
- Model: 330901-00-30-10-02-00
- Series: 3300 NSv Proximity Probe
- Certifications: CSA, ATEX, IECEx
Mechanical Properties
| Parameter | Value |
|---|---|
| Probe Length | 30 inches |
| Unthreaded Length | 0.5 inches |
| Thread Size | 3/8-24 UNF |
| Cable Type | Armored or non-armored |
| Mounting Options | Various flexible options |
| Material | Stainless steel body with protective jacket |
Electrical Properties
| Parameter | Value |
|---|---|
| Output Signal | Voltage proportional to gap distance |
| Power Supply | –24 VDC to –30 VDC |
| Sensitivity | 7.87 mV/mil (200 mV/mm) |
| Frequency Response | 0–10 kHz |
Performance & Range
| Parameter | Value |
|---|---|
| Measurement Range | 80 mils (2.0 mm) |
| Linear Range | 0.050 inches (1.27 mm) |
| System Accuracy | ±1.0 mil (±25.4 μm) |
| Operating Temperature | –51°C to +177°C (–60°F to +350°F) |
Origin
- Country of Manufacture: USA
Size & Weight
- Probe Length: 30 inches
- Unthreaded Tip Length: 0.5 inches
Details
| Weight | 0.3 kg |
|---|
