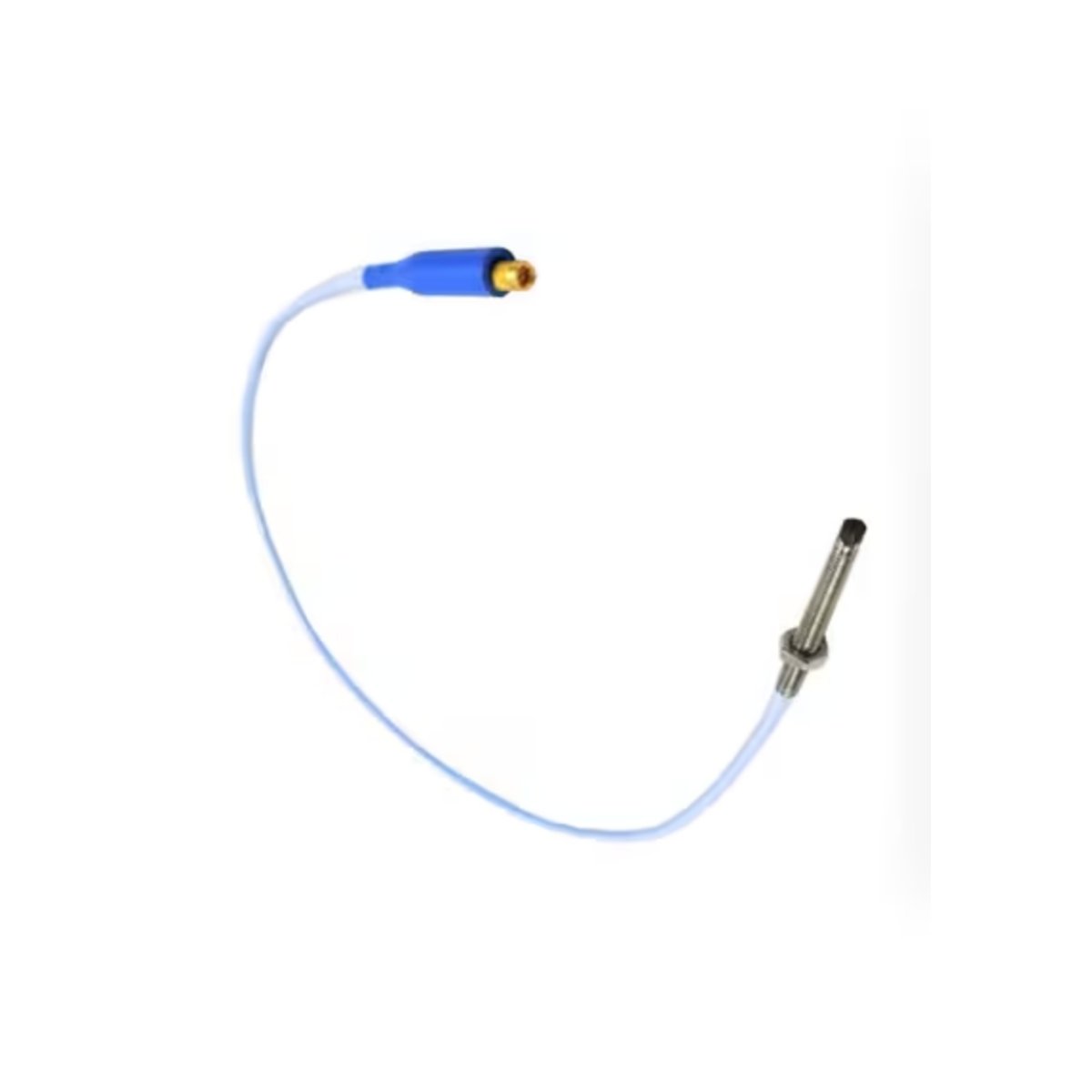

The 330901-00-15-70-02-00 from Bently Nevada offers precise monitoring for rotating machinery in industrial applications. This 3300 NSv proximity probe ensures reliable measurements even under extreme temperatures and challenging conditions.
Probe Design and Materials
The features a robust AISI 304 stainless steel case and a Polyphenylene sulfide (PPS) tip. This combination guarantees durability and high-performance signal integrity.
Electrical and Mechanical Specifications
Engineers can expect a probe DC resistance of 5.9 ± 0.9 ohms. Connector-to-connector torque ratings are 7.3 N·m maximum and 5.1 N·m recommended, ensuring stable connections under vibration. The protection rating is IP54, providing reliable performance in environments with limited dust or water exposure.
Dimensions and Installation
The probe uses a 1/4-28 UNF thread with a 1.5-inch overall case length. The total system length is 7.0 meters (23.0 feet), with a miniature coaxial ClickLoc connector for straightforward installation.
Environmental Range
The 330901-00-15-70-02-00 operates between –52°C and +177°C (–62°F to +351°F) and stores safely within the same range. This wide range allows deployment in extreme industrial settings.
Technical Specifications
General Information
- Manufacturer: Bently Nevada
- Model: 330901-00-15-70-02-00
- Series: 3300 NSv Proximity Probe
- Country of Origin: USA
Mechanical Properties
| Parameter | Value |
|---|---|
| Thread Size | 1/4-28 UNF |
| Overall Case Length | 1.5 in |
| Total Length | 7.0 m (23.0 ft) |
| Protection Rating | IP54 |
| Connector | Miniature coaxial ClickLoc |
| Agency Approval | Not Required |
Electrical Properties
| Parameter | Value |
|---|---|
| Probe DC Resistance | 5.9 ± 0.9 Ω |
| Connector Torque | 7.3 N·m max, 5.1 N·m recommended |
Materials
- Probe Case: AISI 304 Stainless Steel
- Probe Tip: Polyphenylene Sulfide (PPS)
Environmental Properties
| Parameter | Value |
|---|---|
| Operating Temperature | –52°C to +177°C (–62°F to +351°F) |
| Storage Temperature | –52°C to +177°C (–62°F to +351°F) |
Size & Weight
- Total Length: 7.0 m (23.0 ft)
- Weight: Approx. 0.35 kg
Details
| Weight | 0.35 kg |
|---|
