Overview of Bently Nevada 330780-X1-CN

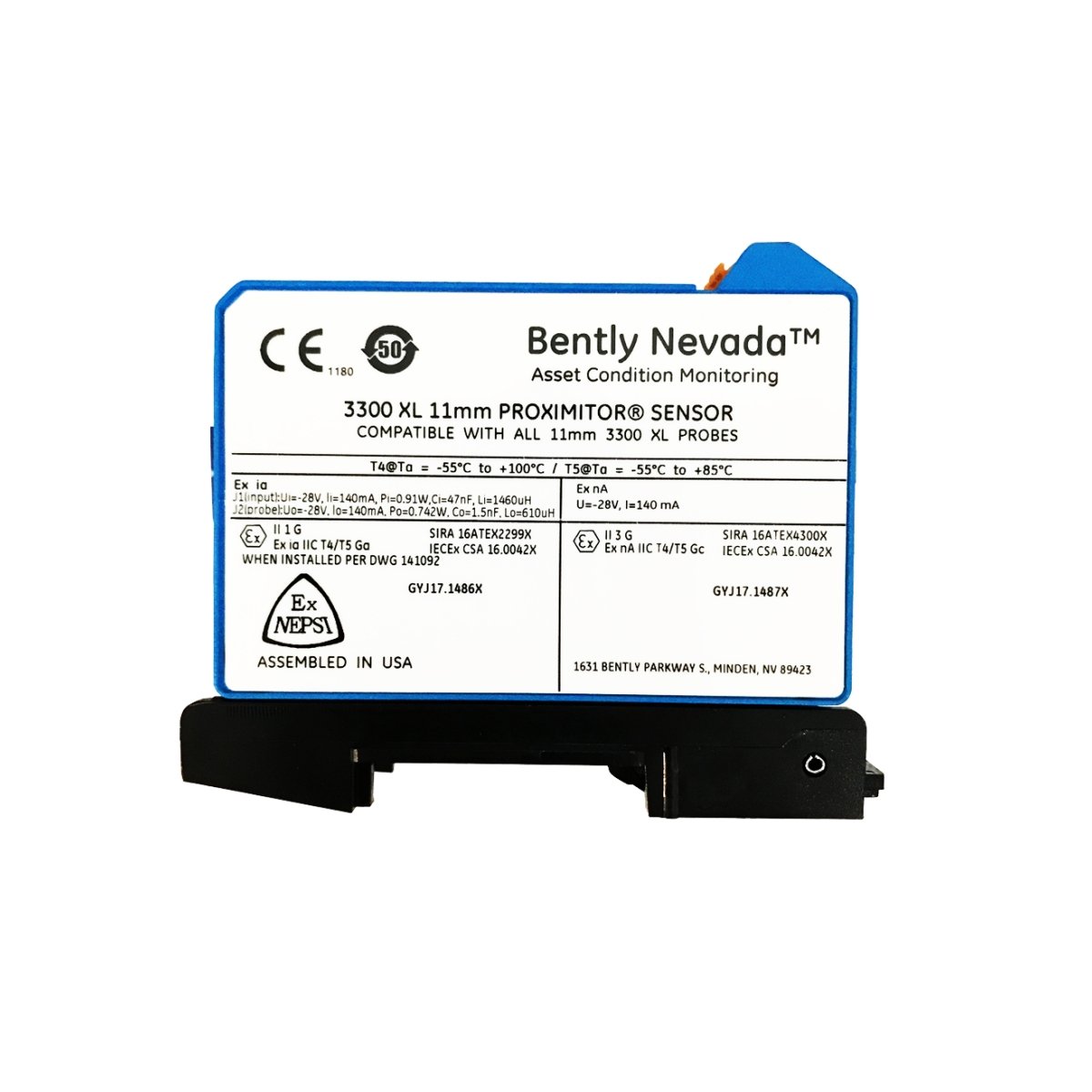

The Bently Nevada 330780-X1-CN is an 11mm 3300 XL Proximitor Sensor designed for precise, non-contact vibration monitoring. It delivers accurate measurements under extreme industrial conditions and integrates seamlessly with 3300 XL monitoring systems.
Key Features
- 11mm NSv Proximitor Sensor with high-resolution displacement measurement
- Measurement range of 0–11 mm (0–0.43 in) for wide application coverage
- 4–20 mA analog output ensures compatibility with control and PLC systems
- Operates between -40°C and +85°C for harsh environmental conditions
- Optional country-specific CN approvals for regulatory compliance
- Compatible with all Bently Nevada 3300 XL monitoring platforms
Product Identification & Suffix Guide
| Suffix | Meaning |
|---|---|
| 330780 | Base 3300 XL Proximitor Sensor model |
| X1 | Sensing element: 148367-16 |
| CN | China-specific approvals (optional) |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330780-X1-CN |
| Series | 3300 XL |
| Sensor Diameter | 11 mm |
| Measurement Range | 0–11 mm (0–0.43 in) |
| Power Supply | 24 VDC ±10% |
| Output Signal | 4–20 mA analog |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Frequency Response | 2 Hz–4 kHz |
| Resolution | 0.01 mm |
| Thread / Mount | Panel or bracket-mounted |
| Installation Torque | 1.5–2.0 Nm |
| Connector Type | 9-pin D-sub or ClickLoc™ optional |
| Weight | 0.6 kg (1.3 lbs) |
| Cable | 3-conductor shielded twisted pair, up to 5 m |
Installation & Compatibility
- Mount sensor securely using panel or bracket kits
- Ensure torque range between 1.5–2.0 Nm during installation
- Supports precise measurement on slow and high-speed machinery
- Compatible with hazardous areas if proper barriers are used
Origin, Dimensions & Weight
- Origin: USA
- Dimensions: 11 mm diameter, 0.43 in max displacement range, system length 5 m
- Weight: 0.6 kg (1.3 lbs)
Package & Support
- Includes: Sensor, mounting kit, documentation, optional COO
- Warranty: 12 months
- Global shipping: FedEx, UPS, DHL
Details
| Weight | 0.6 kg |
|---|
