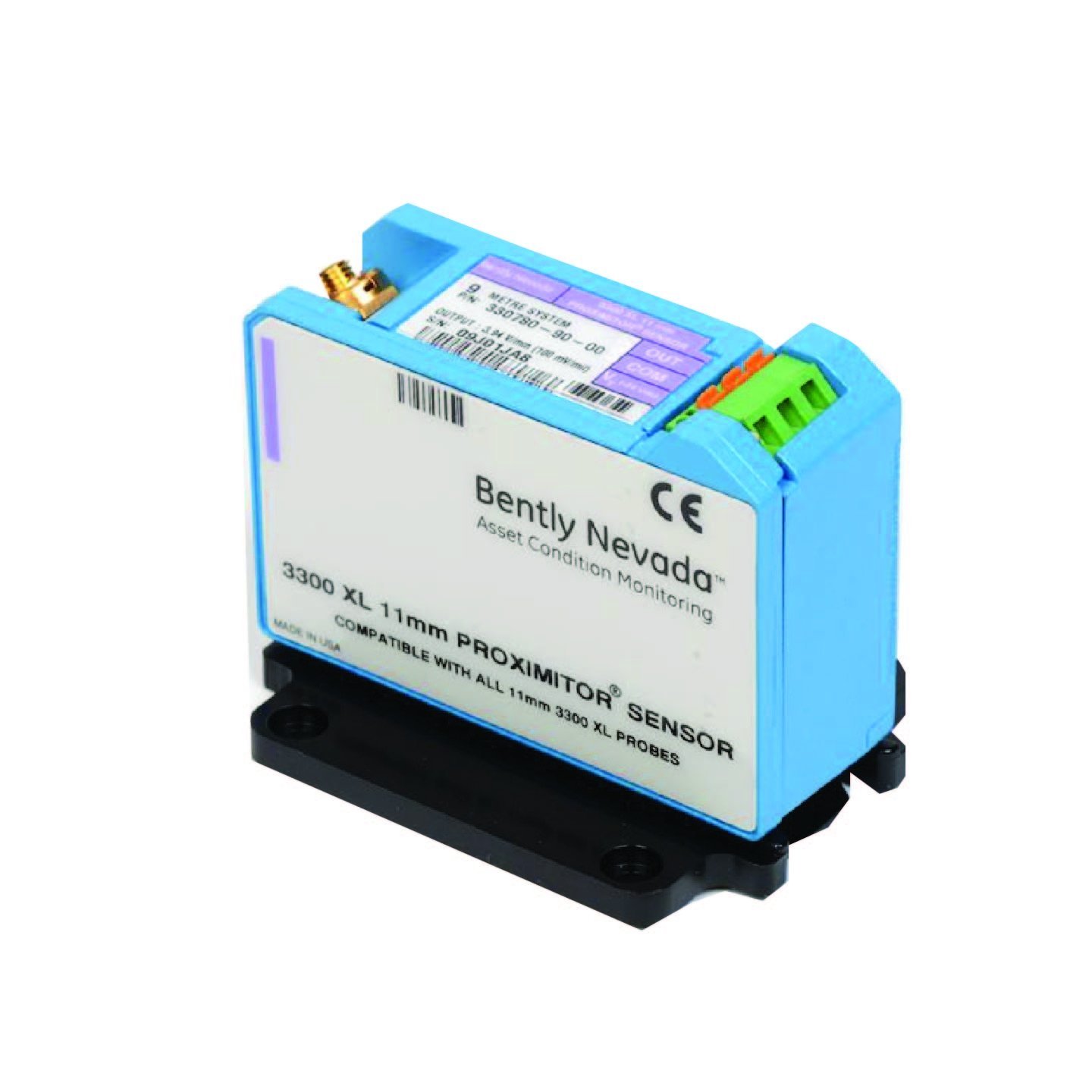

The Bently Nevada 330780-90-00 is a high-performance 3300 XL 11 mm Proximitor Sensor designed to deliver precise vibration and displacement monitoring in demanding industrial applications. Featuring a slim design, it is ideal for both high-density DIN-rail and traditional panel mount installations. The sensor offers excellent RFI/EMI immunity, ensuring compliance with European CE mark standards. It also comes with advanced features, including secure field wiring connections with SpringLoc terminal strips, reliable ClickLoc connectors, and a robust CableLoc design for reliable cable attachment.

This system supports various probe configurations, including armored and unarmored designs. Additionally, FluidLoc® cables prevent oil leakage, and connector protectors increase durability in humid environments.

Key Features

• Enhanced RFI/EMI Immunity
  The sensor minimizes interference from high-frequency signals, ensuring stable operation even in electrically noisy environments.
• SpringLoc Terminal Strips
  These terminal strips simplify field wiring, allowing for quick and secure connections without the need for special tools.
• Gold-Plated ClickLoc Connectors
  The connectors prevent loosening and ensure high reliability. CableLoc provides a 330 N (75 lb) pull strength for secure cable attachment.
• FluidLoc Cable Option
  This option prevents oil or liquid leakage, enhancing safety and operational reliability in hazardous environments.
• Environmental Durability
  The sensor features a locknut with predrilled safety wire holes and silicone tape for additional protection in harsh conditions.

Specifications

Electrical

• Proximitor Sensor Input: Compatible with 3300 XL 11 mm Proximity Probe and extension cables.
• Power Requirements:
  • Without barriers: -17.5 Vdc to -26 Vdc, 12 mA maximum.
  • With barriers: -23 Vdc to -26 Vdc.
  • Note: Operation above -23.5 Vdc may reduce the linear range.
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• Output Resistance: 50 Ω.

Mechanical

• Material: A380 aluminum.
• System Weight: 255 g (9 oz) typical.

Environmental Limits

• Operating Temperature: -35°C to +85°C (-31°F to +185°F).
• Storage Temperature: -51°C to +100°C (-60°F to +212°F).
• Relative Humidity: 100% condensing (non-submersible with protected connectors).
• IEC Compliance: Compliant with IEC 68-2-3 damp heat testing.

Applications

• Vibration and Displacement Monitoring
  Ideal for critical machinery monitoring in industrial environments.
• Durable Performance
  The sensor operates reliably in extreme temperatures and high-humidity conditions.
• Oil and Gas Applications
  Offers exceptional performance in environments prone to oil leakage.

Ordering Information

• Model: 330780-90-00
• Type: 3300 XL 11 mm Proximitor Sensor

Part Number Breakdown

• 330780-AXX-BXX
  • 0 0: Not required.
  • 9 0: 9.0 meters (29.5 feet) system length, panel mount.
  • A: Total length and mounting option
  • B: Agency approval option
