Product Overview

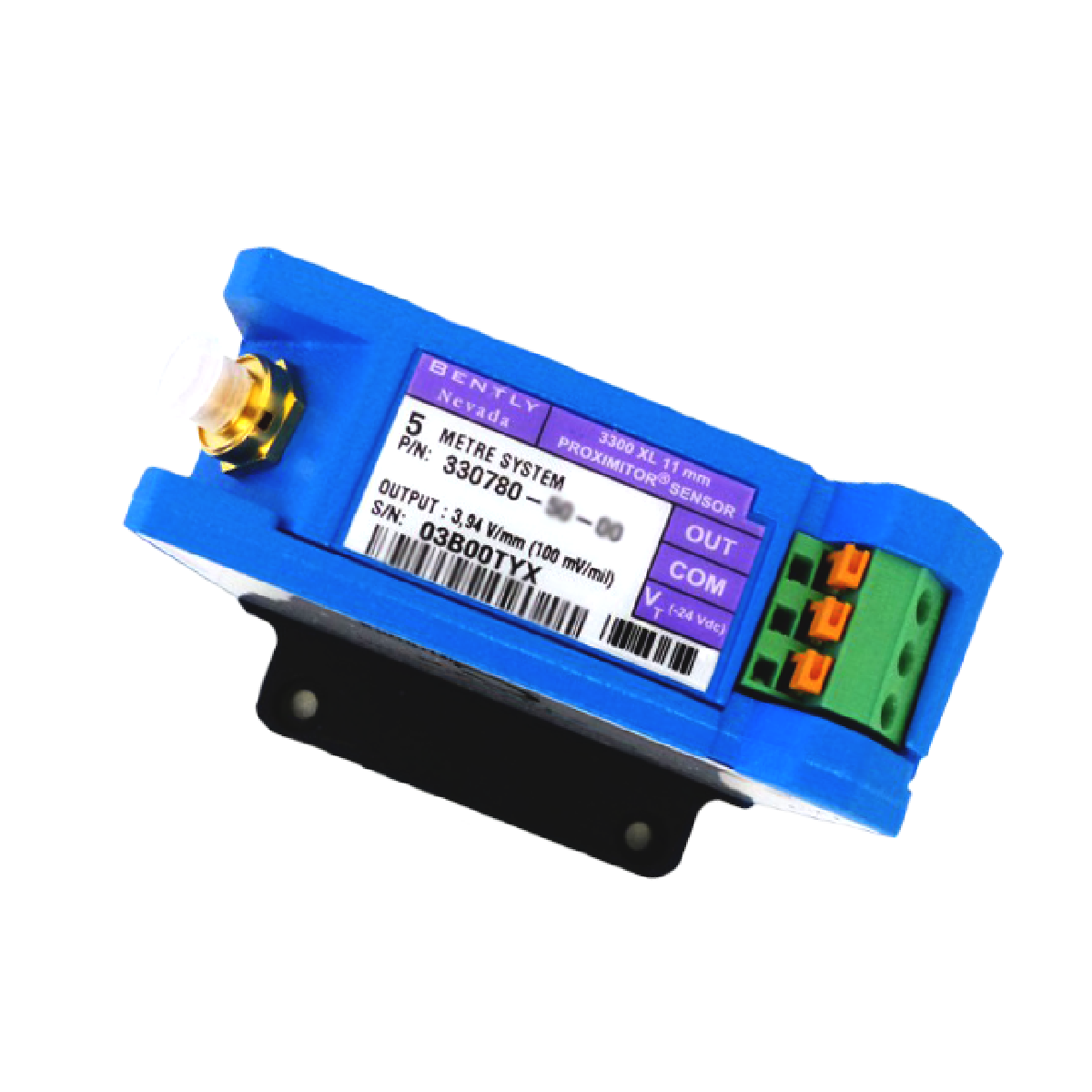

The Bently Nevada 330780-51-00 is a 3300 XL Proximitor Sensor compatible with 11 mm proximity probes and extension cables. Moreover, it provides non-contact, high-accuracy measurements of shaft vibration and position for reliable condition monitoring.
In addition, DIN rail mounting ensures secure installation, while the A380 aluminum housing guarantees mechanical durability under industrial conditions.
Functional Highlights
This sensor offers high performance and operational reliability. For instance, it includes gold-plated connectors for superior signal transmission and high-sensitivity measurement capabilities.
Key Features:
- Works with 3300 XL 11 mm Proximity Probes and extension cables
- DIN rail mounting for flexible installation
- High-sensitivity output with minimal noise interference
- A380 aluminum housing ensures mechanical robustness
- Gold-plated connectors enhance signal reliability
Therefore, the 330780-51-00 sensor ensures consistent performance in critical machinery monitoring applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Electrical Input | One 3300 XL 11 mm Proximity Probe and Extension Cable |
| Power Requirements | -17.5 Vdc to -26 Vdc (no barriers), -23 Vdc to -26 Vdc (with barriers) |
| Supply Sensitivity | < 2 mV change per volt input |
| Output Resistance | 50 Ω |
| Material | A380 Aluminum |
| Weight | 255 g (9 oz) |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -51°C to +100°C (-60°F to +212°F) |
| Mounting | DIN Rail |
Typical Applications
The 330780-51-00 sensor is ideal for industrial and rotating machinery monitoring. Moreover, it supports precision diagnostics for bearings, shafts, and overall equipment health.
Applications Include:
- Turbine and compressor vibration monitoring
- Industrial condition monitoring systems
- Shaft position measurement for rotating machinery
- High-precision diagnostics for critical equipment
Details
| Weight | 0.255 kg |
|---|
