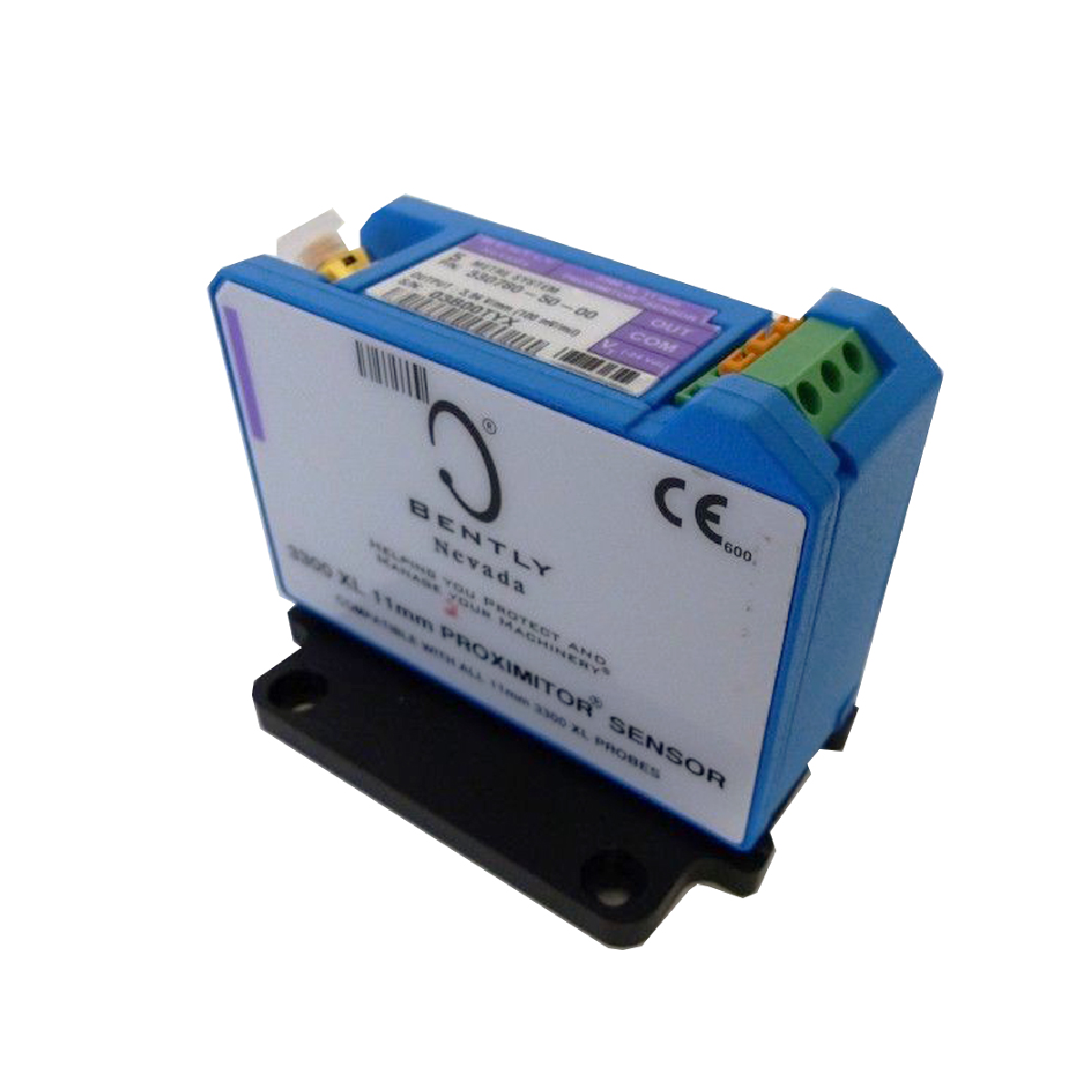

The Bently Nevada 330780-50-05 is a compact and robust 3300 XL 11 mm Proximitor Sensor with a 5-meter system length and panel mount design. It offers high reliability in demanding industrial environments thanks to strong RFI/EMI immunity, CE compliance, and tool-free wiring via SpringLoc terminals.
Key Features
- Thin, compact housing for DIN rail or panel mounting
- Improved EMI/RFI shielding for noisy environments
- SpringLoc terminal strips for fast, secure installation
- CE-compliant without special mounting
Electrical Specifications
- Input: Compatible with 3300 XL 11 mm Proximity Probes and Extension Cables
- Power: -17.5 Vdc to -26 Vdc, max 12 mA
- Barrier use: -23 Vdc to -26 Vdc
- Output resistance: 50 Ω
- Supply sensitivity: <2 mV per volt
Mechanical Details
- Material: A380 aluminum
- Weight: 255 g (9 oz)
- Mounting: Panel mount version
Environmental Limits
- Operating temperature: -52°C to +100°C
- Storage temperature: -52°C to +105°C
- Suitable for harsh environments
Ordering Info
- Part Number: 330780-50-05
- System Length: 5 meters (16.4 ft)
- Mounting: Panel mount
- Approval Option: 05 – Multiple certifications
Details
| Weight | 0.255 kg |
|---|---|
| Dimensions | 500 mm |
