Product Description

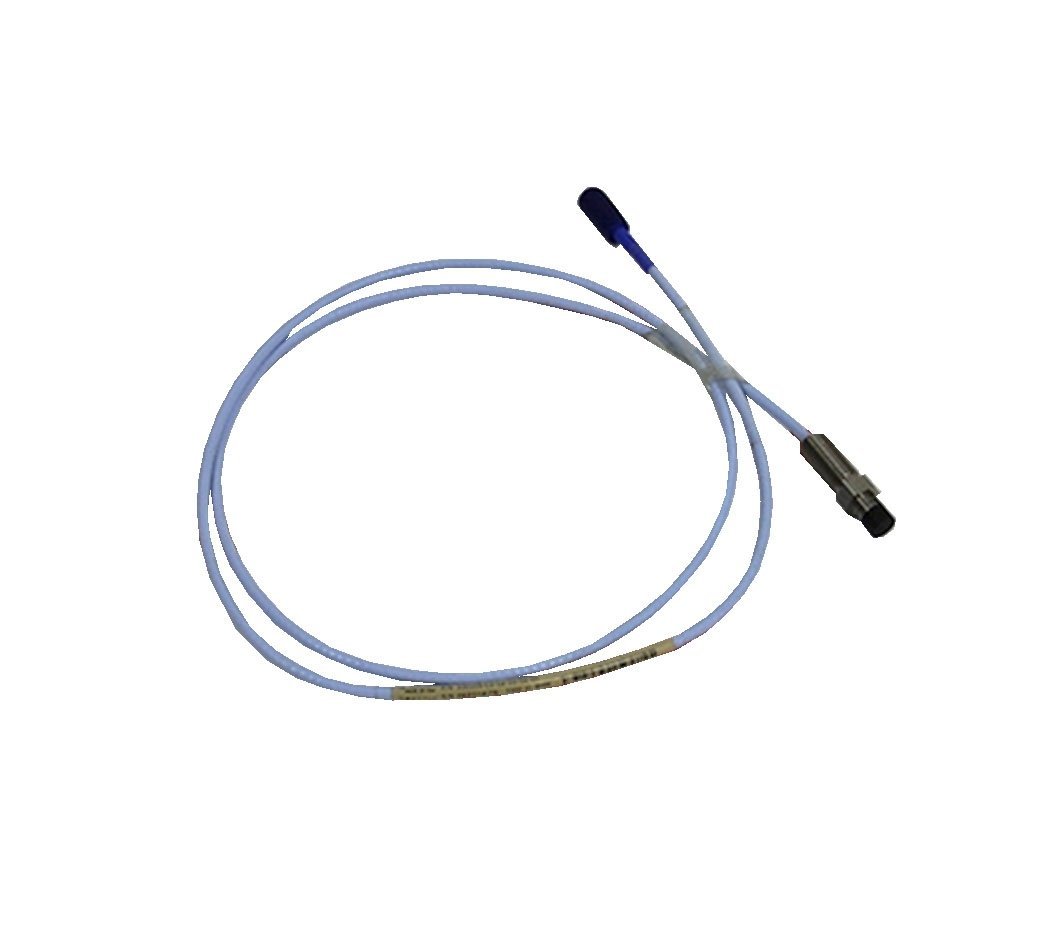

The Bently Nevada 330730-080-12-00 is a high-quality extension cable designed for use with the 3300 XL 11 mm Proximity Probe and Proximitor Sensor. It ensures stable signal transmission between the probe and the monitoring system, supporting precise machinery vibration and position measurements.
Its rugged triaxial FEP-insulated construction resists temperature extremes, mechanical wear, and chemical exposure. Therefore, the cable maintains excellent reliability and electrical integrity even in harsh industrial environments.
Functional Highlights
- Reliable Signal Integrity: Maintains consistent accuracy for vibration and displacement monitoring.
- High Temperature Tolerance: Operates safely from -51°C to +177°C (-60°F to +351°F).
- Optimized Compatibility: Works seamlessly with all 3300 XL 11 mm Proximity Probes and Proximitors.
- Precision Design: ±25% ISF accuracy ensures dependable performance across extended ranges.
- Flexible Installation: Available in multiple cable lengths, including 8.0 meters (26.2 feet).
Moreover, the FluidLoc connector system prevents oil or fluid ingress, providing long-term stability in critical rotating equipment applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330730-080-12-00 |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Cable Length (Option A) | 080 → 8.0 meters (26.2 feet) |
| Connector Type (Option B) | 12 → FluidLoc with connector protectors |
| Agency Approval (Option C) | 00 → Not required |
| Operating Temperature (Cable) | -51°C to +177°C (-60°F to +351°F) |
| Probe Temperature Range | -35°C to +120°C (-31°F to +248°F) |
| Proximitor Temperature Range | 0°C to +45°C (+32°F to +113°F) |
| Scale Factor Accuracy | ±25% of 3.94 V/mm (100 mV/mil) |
| DSL Accuracy | ±0.51 mm (±20 mils); Extended Range: ±0.59 mm (±23 mils) |
| Cable Weight | 45 g/m (0.5 oz/ft) |
System Integration
The Bently Nevada 330730-080-12-00 integrates seamlessly with 3300 XL monitoring systems. It enables extended sensor placement in turbines, compressors, and pumps without loss of signal accuracy.
For instance, engineers can use this cable to connect probes in thermally challenging areas while maintaining system calibration. In addition, its standard connectors simplify replacement or field maintenance during system upgrades.
Details
| Weight | 0.045 kg |
|---|
