Overview

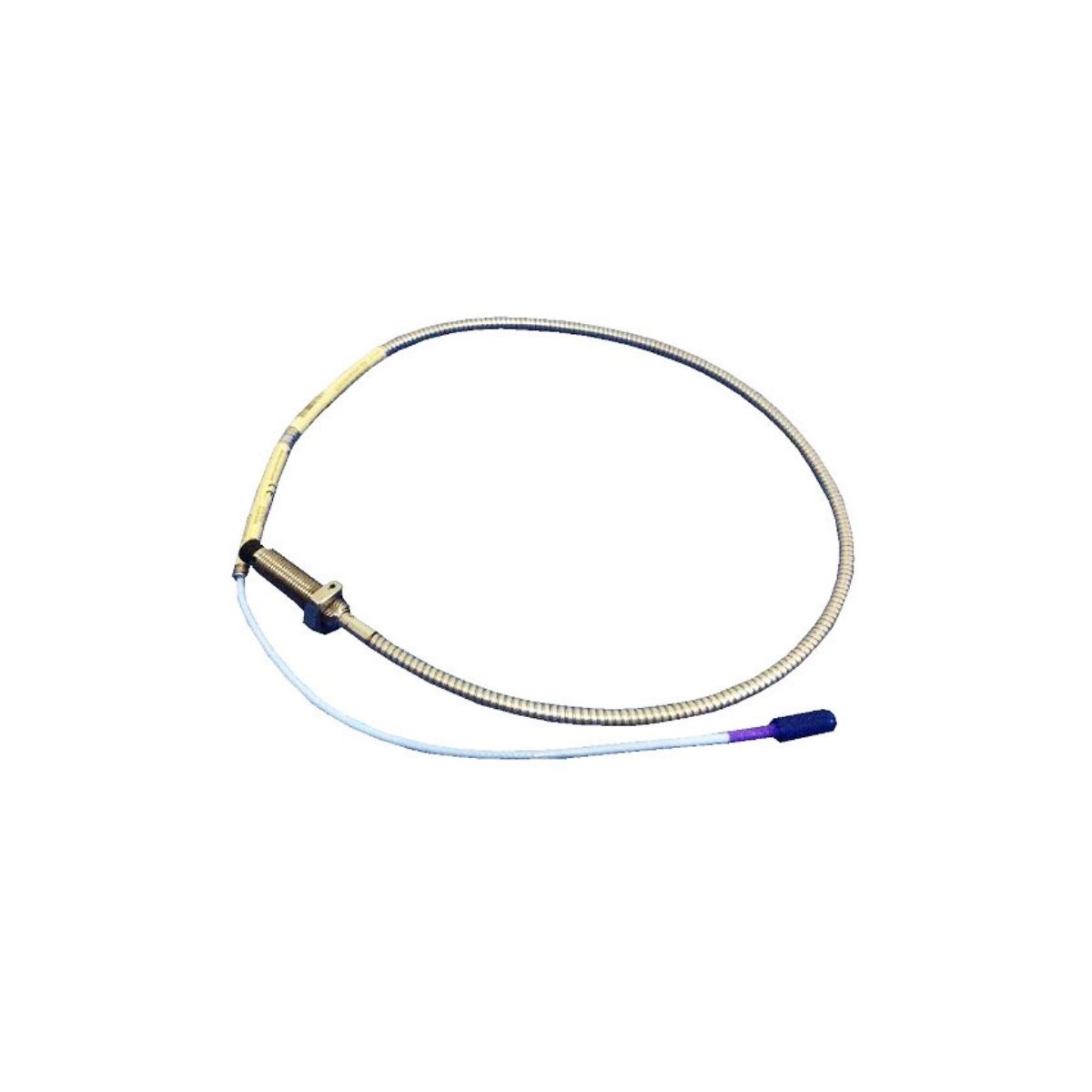

The 330710-000-060-05-02-00 proximity probe from Bently Nevada delivers precise shaft-motion measurements in industrial machinery. Belonging to the 3300 XL series, this 11 mm probe combines rugged construction with fast electrical response. Engineers rely on it for turbines, compressors, and high-speed rotating equipment where accurate displacement sensing matters most.
High-Precision Sensing Performance
The 330710-000-060-05-02-00 maintains linear displacement measurements across a wide range of motion, typically from ±0.25 inches to ±1.0 inch (6.35 mm to 25.4 mm). Its fast response time, under 2 ms, ensures operators capture rapid shaft movements reliably.
Rugged Mechanical Design
Bently Nevada designs the probe housing with stainless steel, offering excellent corrosion resistance and durability. The M16 x 1.5 threaded tip, armored design, and 60 mm case length withstand high-stress environments while supporting long-term reliability.
Electrical Interface and Output
The probe transmits 4–20 mA or 0–10 VDC signals, compatible with the 3300 XL monitoring system. Powered by a 24 VDC nominal supply, the probe ensures stable and consistent output. The miniature coaxial ClickLoc connector simplifies installation and maintenance.
Customizable Cabling Options
The 330710-000-060-05-02-00 comes with flexible cable lengths, typically up to 5 meters (16.4 feet) or extended up to 9 meters (30 feet) per application needs. This adaptability allows seamless integration into various industrial layouts.
Technical Specifications
General Information
- Manufacturer: Bently Nevada
- Model: 330710-000-060-05-02-00
- Series: 3300 XL Proximity Probe
- Protection Rating: IP67
Mechanical
| Parameter | Value |
|---|---|
| Tip Diameter | 11 mm |
| Thread Type | M16 x 1.5 |
| Case Length | 60 mm |
| Housing Material | Stainless Steel |
| Cable Length | 5.0 m standard, customizable up to 9 m |
| Weight | 170 g (6.0 oz) |
Electrical & Performance
| Parameter | Value |
|---|---|
| Output Signal | 4–20 mA or 0–10 VDC |
| Measurement Range | ±0.25 in to ±1.0 in (6.35–25.4 mm) |
| Frequency Response | Up to 10 kHz |
| Response Time | < 2 ms |
| Power Supply | 24 VDC nominal |
Environmental
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Protection Class | IP67 |
Ordering Information
- 330710: 3300 XL 11 mm probe with armor
- -000: 0 mm unthreaded length
- -060: 60 mm case length
- -05: 5 m total cable length
- -02: Miniature coaxial ClickLoc connector
- -00: No agency approval required
Origin
- Country of Manufacture: USA
Size & Weight
- Probe Weight: 170 g (6.0 oz)
- Total Cable Weight (5 m): Approximately 850 g
Details
| Weight | 0.85 kg |
|---|
