Overview

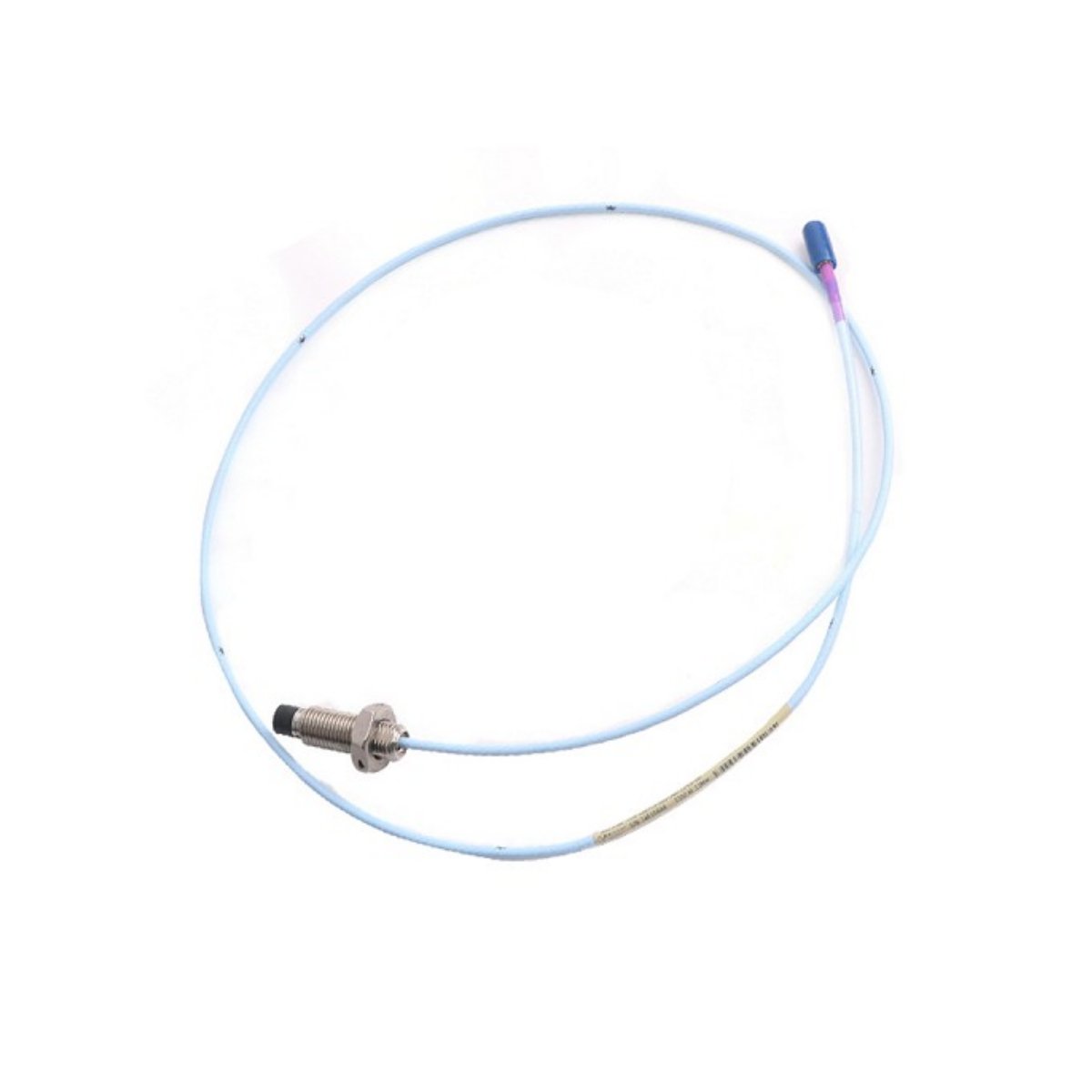

The 330704-000-050-10-01-05 from Bently Nevada provides precise shaft-motion measurements in demanding industrial environments. Part of the 3300 XL series, this 11 mm armored probe offers high reliability for turbines, compressors, and high-speed rotating equipment.
Precision Measurement and Output
The 330704-000-050-10-01-05 delivers a nominal output of –8 V/mm and operates linearly within 2 mm to 7 mm. Engineers rely on this probe to maintain accurate displacement readings in systems with up to 5 meters of total cable length including Proximitor connections.
Rugged Mechanical and Environmental Design
This probe features a stainless steel body and a fluoropolymer-jacketed cable for durability and chemical resistance. It withstands operating temperatures from –34°C to +177°C and storage conditions from –51°C to +177°C, ensuring consistent performance in harsh industrial areas.
Connector and Cabling
The armored 10 mounting option comes with a 1-meter extension cable, producing a total length of 1.5 meters for flexible installation. Its design supports secure and stable connections, maintaining signal integrity in challenging environments.
Technical Specifications
General Information
- Manufacturer: Bently Nevada
- Model: 330704-000-050-10-01-05
- Series: 3300 XL Proximity Probe
- Compliance: ATEX certified, CE marked
Mechanical Properties
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 11 mm |
| Probe Length | 0.5 m (50 cm) |
| Extension Cable Length | 1 m |
| Total Probe + Cable Length | 1.5 m |
| System Length | 5 m (including Proximitor) |
| Mounting Option | 10 (armored with connector) |
| Material | Stainless Steel body, fluoropolymer cable jacket |
| Weight | Approx. 0.2 kg |
Electrical Properties
| Parameter | Value |
|---|---|
| Output | –8 V/mm (nominal) |
| Linear Range | 2 mm – 7 mm |
Environmental Properties
| Parameter | Value |
|---|---|
| Operating Temperature | –34°C to +177°C |
| Storage Temperature | –51°C to +177°C |
Origin
- Country of Manufacture: USA
Size & Weight
- Total Probe + Cable Length: 1.5 m
- Weight: Approx. 0.2 kg
Details
| Weight | 0.2 kg |
|---|
