Product Description

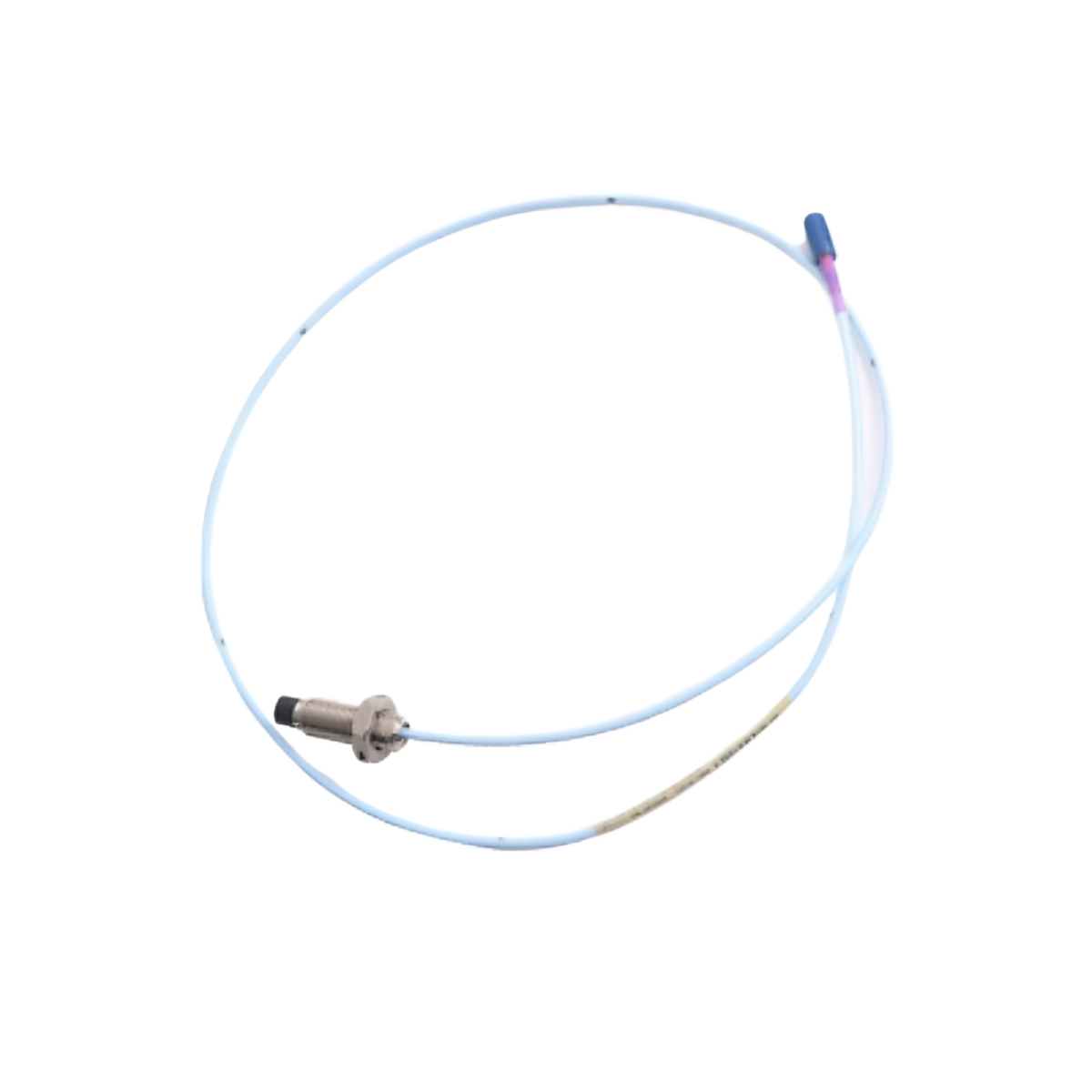

The Bently Nevada 330703-000-070-10-02-00 is part of the 3300 XL 11 mm proximity probe series engineered for high-accuracy vibration and shaft position measurements. It provides stable and consistent performance across wide temperature and environmental ranges.
With an M14 x 1.5 threaded case and a ClickLoc connector, the probe guarantees secure mounting and vibration-resistant connections. Moreover, it supports flexible non-armored installation, making it suitable for a wide range of machinery monitoring applications in oil, gas, and power industries.
Functional Highlights
High precision monitoring: Ensures accurate shaft vibration and displacement measurement.
Rugged design: Operates reliably from –52°C to +177°C, ideal for harsh environments.
ClickLoc connector: Delivers quick, secure cable connections resistant to loosening.
Flexible installation: Non-armored cable design simplifies routing in confined areas.
Optimized thread design: M14 x 1.5 thread provides stable mounting and torque tolerance.
In addition, the probe integrates seamlessly with Bently Nevada 3300 XL systems, ensuring measurement consistency and system compatibility.
Technical Specifications
| Parameter | Description |
|---|---|
| Part Number | 330703-000-070-10-02-00 |
| Probe Tip Diameter | 11 mm |
| Thread Type | M14 x 1.5 |
| Unthreaded Length (A) | 00 mm |
| Case Length (B) | 70 mm |
| Cable Length (C) | 1.0 m (3.3 ft) |
| Connector Type (D) | Miniature coaxial ClickLoc |
| Agency Approval (E) | Not required |
| Probe DC Resistance (1 m) | 5.9 ± 0.5 Ω |
| Operating Temperature | –52°C to +177°C (–62°F to +351°F) |
| Recommended Mounting Torque | 21.1 N·m (187 in·lb) |
| Maximum Torque Limit | 63.3 N·m (560 in·lb) |
| Weight (Typical) | 170 g (6.0 oz) |
| Thread Engagement Limit | 21 mm maximum |
Therefore, its combination of durable design and stable sensitivity ensures dependable readings over long-term operation cycles.
System Integration
The 330703-000-070-10-02-00 integrates effortlessly with Bently Nevada 3300 XL proximity systems, providing consistent signal output for vibration analysis and machinery diagnostics. It is used across:
Turbines and Compressors: For shaft vibration and axial position monitoring.
Pumps and Motors: Detecting imbalance or misalignment.
Industrial Equipment: Condition-based monitoring for predictive maintenance.
Furthermore, its non-armored design supports installations in less aggressive environments while maintaining high signal integrity.
Details
| Weight | 0.17 kg |
|---|
