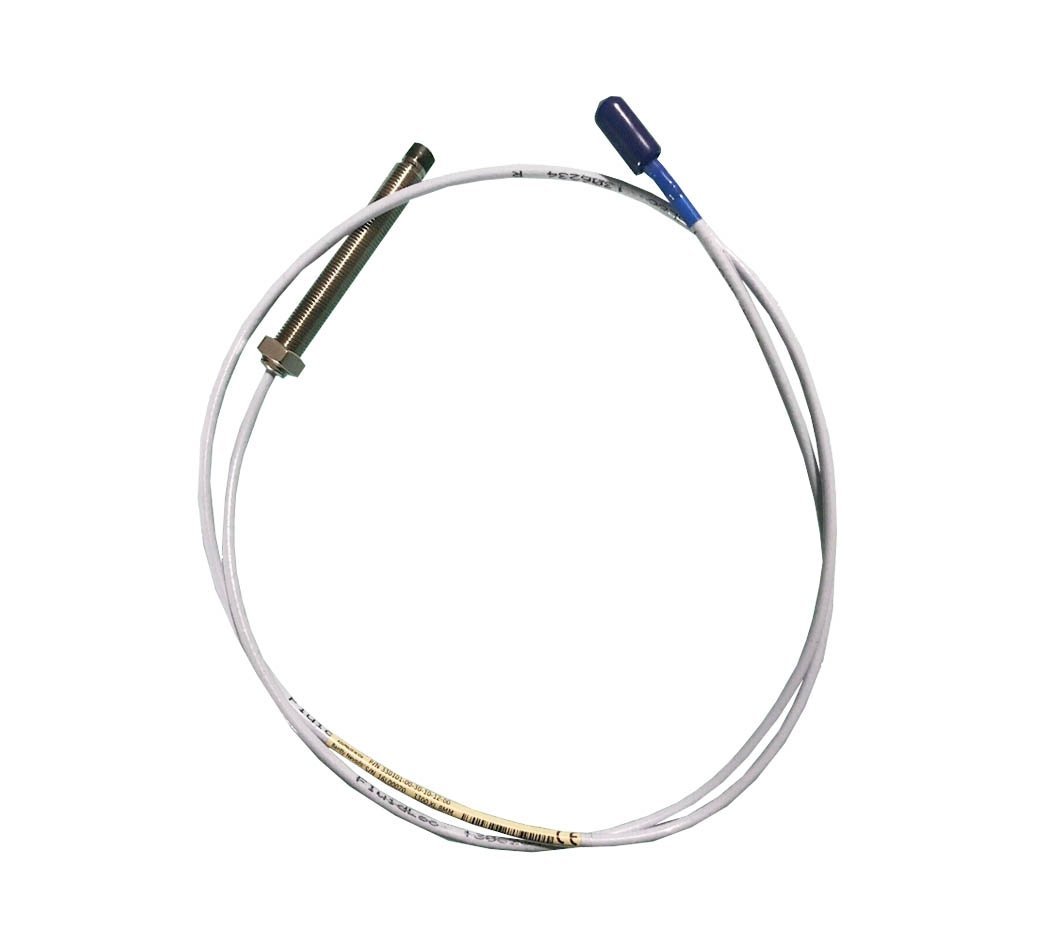

The Bently Nevada 330702-20-30-10-01-05 is a high-precision 3300 XL 11 mm Proximity Probe designed for demanding industrial applications. It provides reliable measurements under extreme temperatures and pressure conditions.
This probe ensures accurate proximity sensing, supporting system monitoring and machine protection. Its robust materials and compact design facilitate easy installation in various industrial settings.
Key Features
- Compact 3300 XL 11 mm Proximity Probe for precise measurement
- Operates in extreme temperatures: -51°C to +177°C (-60°F to +351°F)
- Lightweight design: 0.17 kg for minimal mechanical load
- Polyphenylene Sulfide (PPS) probe tip for durability and chemical resistance
- Case constructed from AISI 304 Stainless Steel (SST) for robust performance
- Miniature coaxial ClickLoc connector with protector for secure signal transmission
- Compatible with multiple agency approvals for industrial compliance
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Number | 330702-20-30-10-01-05 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Probe Pressure | Seals differential pressure via Viton O-ring (not pressure-tested) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel (SST) |
| Weight | 0.17 kg |
| Thread Type | 1/2-20 UNF with optional armor |
| Cable & Connector | Miniature coaxial ClickLoc with protector |
| Custom Ordering Code | 330702-AA-BB-CC-DD-EE (current: 330702-20-30-10-01-05) |
| Length Options | Unthreaded: 2 in, Case: 3 in, Total: 1.0 m (3.3 ft) |
| Agency Approvals | Multiple approvals |
Ordering Information
The Bently Nevada 330702 series supports custom configurations through the code format 330702-AA-BB-CC-DD-EE. This allows precise selection of probe length, cable type, and approvals. For special testing or certification needs, contact Bently Nevada’s custom design department directly.
Details
| Weight | 0.17 kg |
|---|
