Overview

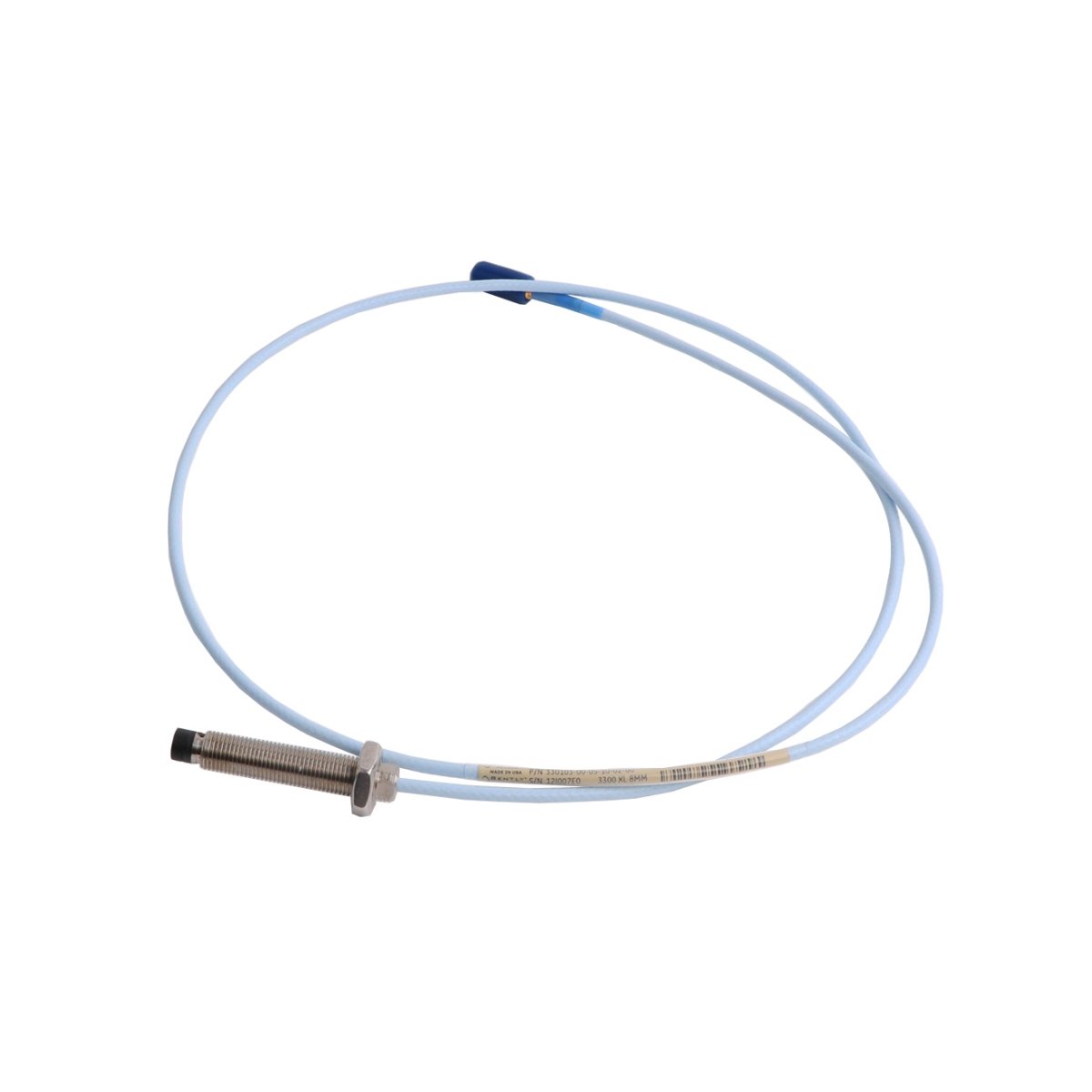

The Bently Nevada 330192-00-20-15-05 8mm ETR vibration probe delivers precise machinery monitoring with global industrial certifications. It integrates CSA, ATEX, and IECEx approvals, ensuring reliable performance in worldwide hazardous environments.
This industrial-grade probe features a robust 2-inch stainless steel case and a practical 1.5-meter cable, providing flexibility during installation. Its PPS Tip and armored design maintain accuracy under harsh conditions.
Core Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330192-00-20-15-05 |
| Series | 3300 XL Monitoring System |
| Probe Type | 8mm ETR with Armor Protection |
| Cable Length | 1.5 meters (4.9 ft) |
| Case Size | 2.0 inches extended |
| DC Resistance | 7.73 ±0.50 Ω |
| Operating Range | -52°C to +177°C |
| Peak Temperature | +218°C at probe tip |
| Mounting | 3/8-24 UNF thread |
| Max Thread Engagement | 0.563 inches |
| Seal Type | Viton O-ring |
| Body Material | 303/304 Stainless Steel |
| Tip Material | PPS Polyphenylene Sulfide |
| Humidity Rating | 93% for 56 days |
| Certifications | CSA, ATEX, IECEx |
Complete Model Breakdown
- 330192: Base ETR probe with armor
- 00: Standard configuration
- 20: 2.0-inch case length
- 15: 1.5-meter cable length
- 05: Global safety certifications
Installation Guidelines
- Use 3/8-24 UNF threaded mounting for secure attachment.
- Limit maximum thread engagement to 0.563 inches for proper sealing.
- Maintain minimum ambient temperature above -34°C during installation.
- Ensure Viton O-ring is intact before mounting.
- Verify cable connection security to prevent signal loss.
- Provide adequate clearance around the probe case for reliable operation.
Global Safety Certifications
- CSA International Certification ensures North American compliance.
- ATEX Directive guarantees European hazardous area acceptance.
- IECEx Standard enables worldwide approval for industrial use.
- Supports multiple hazardous zone approvals for global deployment.
Environmental and Chemical Resistance
- Stainless steel case resists most industrial chemicals and oils.
- PPS tip protects the internal coil from physical and chemical stress.
- Maintains stable performance under 93% humidity for extended periods.
- TipLoc technology ensures durable bond between tip and probe body.
Package Contents
- One Bently Nevada 3300 XL 8mm ETR vibration probe.
- Manufacturer documentation and certification papers.
- Protective packaging for safe transport.
Shipping and Warranty
- 12-month manufacturer quality guarantee.
- Express global shipping via FedEx, UPS, or DHL.
- Real-time tracking with secure packaging included.
- Technical support available for setup and troubleshooting.
Frequently Asked Questions
Why are multiple certifications important?
CSA, ATEX, and IECEx approvals guarantee compliance and worldwide operational acceptance.
What advantage does the 1.5-meter cable provide?
This cable length balances installation flexibility with minimal signal loss in industrial settings.
How often should the probe be maintained?
Visual inspection every 3 months and full performance check every 12 months is recommended.
Can the probe withstand chemical exposure?
Yes, stainless steel body and PPS tip resist most industrial chemicals and oils effectively.
Origin, Dimensions & Weight
- Origin: USA
- Case Length: 2.0 inches
- Cable Length: 1.5 meters
- Weight: 360 g (12.7 oz)
