Overview

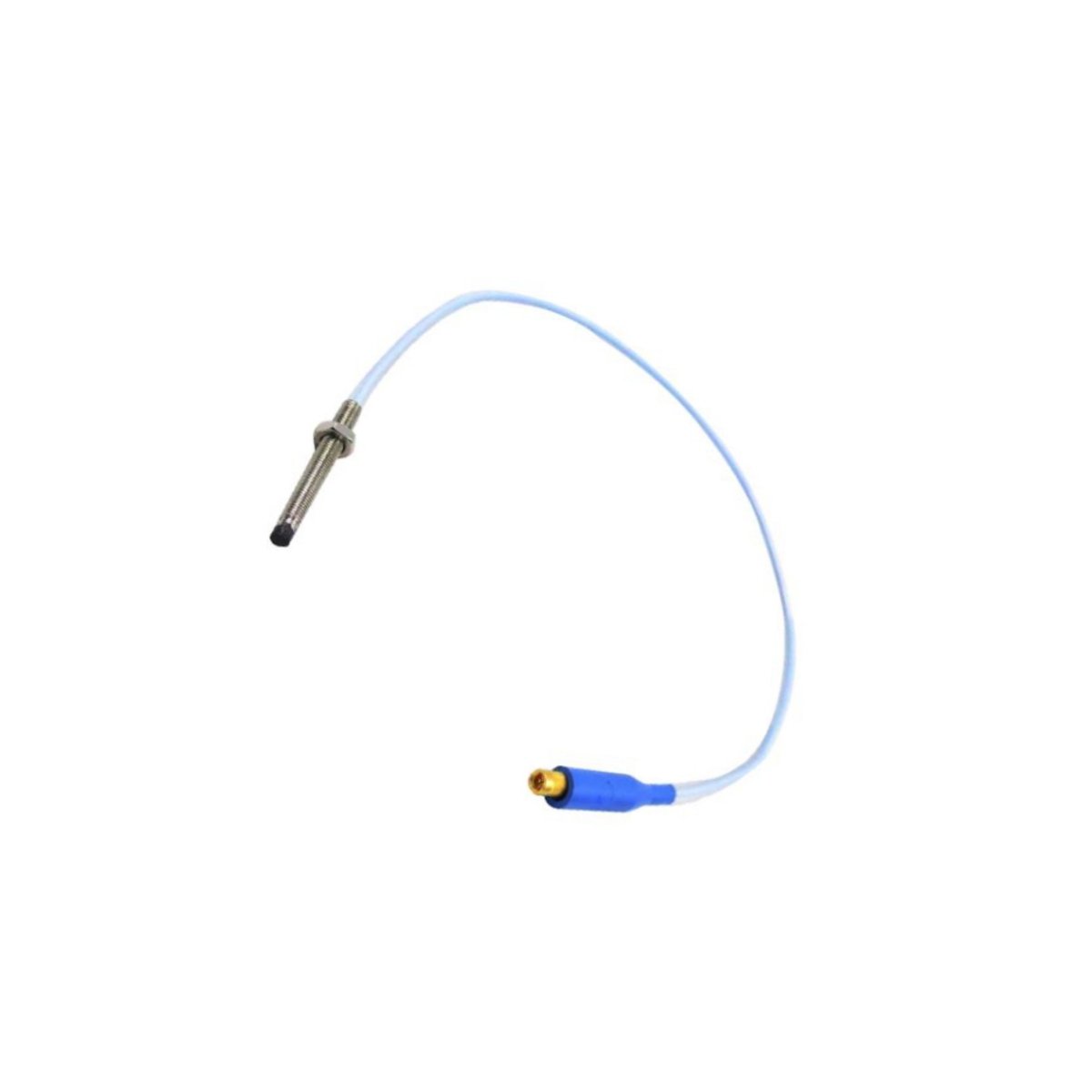

The Bently Nevada 330192-00-20-05-CN probe delivers accurate vibration measurement for machinery operating in hazardous areas. It belongs to the 3300 XL ETR 8mm series and uses armored construction, so technicians gain stronger protection in harsh plants. Moreover, its 0.5-meter cable suits compact layouts, while the 2.0-inch extended case increases mounting reach in restricted equipment spaces.
Key Features
- 8mm ETR armored probe provides reliable performance in demanding plants
- 2.0-inch extended case improves stability during high-vibration operation
- 0.5-meter cable simplifies routing in tight machinery layouts
- Global approvals (CSA, ATEX, IECEx) support use in hazardous zones
- Viton sealing and PPS tip increase durability in extreme temperatures
Technical Specifications
General Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330192-00-20-05-CN |
| Series | 3300 XL 8mm ETR Probe |
| Probe Diameter | 8 mm |
| Case Length | 2.0 in (50.8 mm) |
| Armor Type | ETR Armored Design |
| Thread Type | 3/8-24 UNF |
| Max Thread Engagement | 0.563 in |
| Body Material | AISI 303/304 Stainless Steel |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Seal Material | Viton O-ring |
Electrical Characteristics
| Parameter | Value |
|---|---|
| DC Resistance | 7.45 ± 0.50 Ω |
| Cable Capacitance | Low-loss measurement grade |
| Response Type | Proximity vibration measurement |
| Probe Accuracy | Optimized for stable linear output |
Cable & Connector
| Parameter | Value |
|---|---|
| Cable Length | 0.5 m (1.6 ft) |
| Cable Type | Armored extension (ETR) |
| Connector | Integrated probe connection |
| Designed For | Short-reach monitoring locations |
Environmental Ratings
| Parameter | Value |
|---|---|
| Operating Temperature | –52°C to +177°C |
| Tip Temperature | Up to +218°C |
| Humidity Rating | 93% RH for 56 days |
| Environmental Suitability | Heavy industrial / Hazardous areas |
Measurement Performance
| Parameter | Value |
|---|---|
| Typical Application | Close-range vibration detection |
| Installation Clearance | Requires proper case spacing |
| Optimal Temperature During Install | Above –34°C |
Model Number Breakdown
- 330192 – 3300 XL 8mm ETR armored probe series
- 00 – Standard manufacturing configuration
- 20 – 2.0-inch extended case design
- 05 – 0.5-meter cable length
- CN – CSA, ATEX, IECEx multi-certification
Applications
The 330192-00-20-05-CN supports compressors, pumps, turbines, and motors requiring hazardous-area protection. Its armored build handles cable stress effectively, and the short cable length benefits installations with minimal clearance or dense equipment configurations.
Performance Advantages
Accuracy
The optimized resistance helps maintain clear vibration signals in short cable routing conditions.
Strength
Its armored ETR design resists physical stress and ensures reliable operation under continuous vibration.
Safety
Global certifications allow deployment in explosive environments across multiple plant classifications.
Installation Guidelines
- Use a 3/8-24 UNF threaded mounting point
- Keep thread engagement within the 0.563-inch limit
- Confirm the O-ring condition before installation
- Install above –34°C for proper material performance
- Follow hazardous-area wiring diagrams for certified systems
- Check cable security to prevent tension at the probe entry
Global Certifications
- CSA International
- ATEX European Hazardous Area Standard
- IECEx Global Explosive Atmosphere Approval
- Class I, Zone 0 compliant
- Division 2 location acceptance
- Suitable for multiple gas groups
Origin, Dimensions & Weight
Origin
- Manufactured in the United States
Dimensions
- Probe Diameter: 8 mm
- Case Length: 2.0 in
- Cable Length: 0.5 m
Weight
- Approx. 480–520 g depending on armored configuration
Package Contents
- One Bently Nevada 330192-00-20-05-CN ETR probe
- Certification and compliance documentation
- Factory quality verification papers
FAQ
Why use a 0.5-meter cable?
It offers cleaner routing in compact spaces and provides lower resistance for improved signal quality.
What benefit does the 2-inch housing provide?
It improves stability during high-vibration operation and supports deeper installation.
Can this model enter explosive areas?
Yes, the CN variant meets CSA, ATEX, and IECEx requirements for hazardous locations.
How does the armored design help?
It protects the cable from mechanical stress, especially in tight industrial pathways.
Why does the short cable affect resistance?
Shorter cable length reduces total loop resistance, producing the measured 7.45-ohm value.
Details
| Weight | 0.52 kg |
|---|
