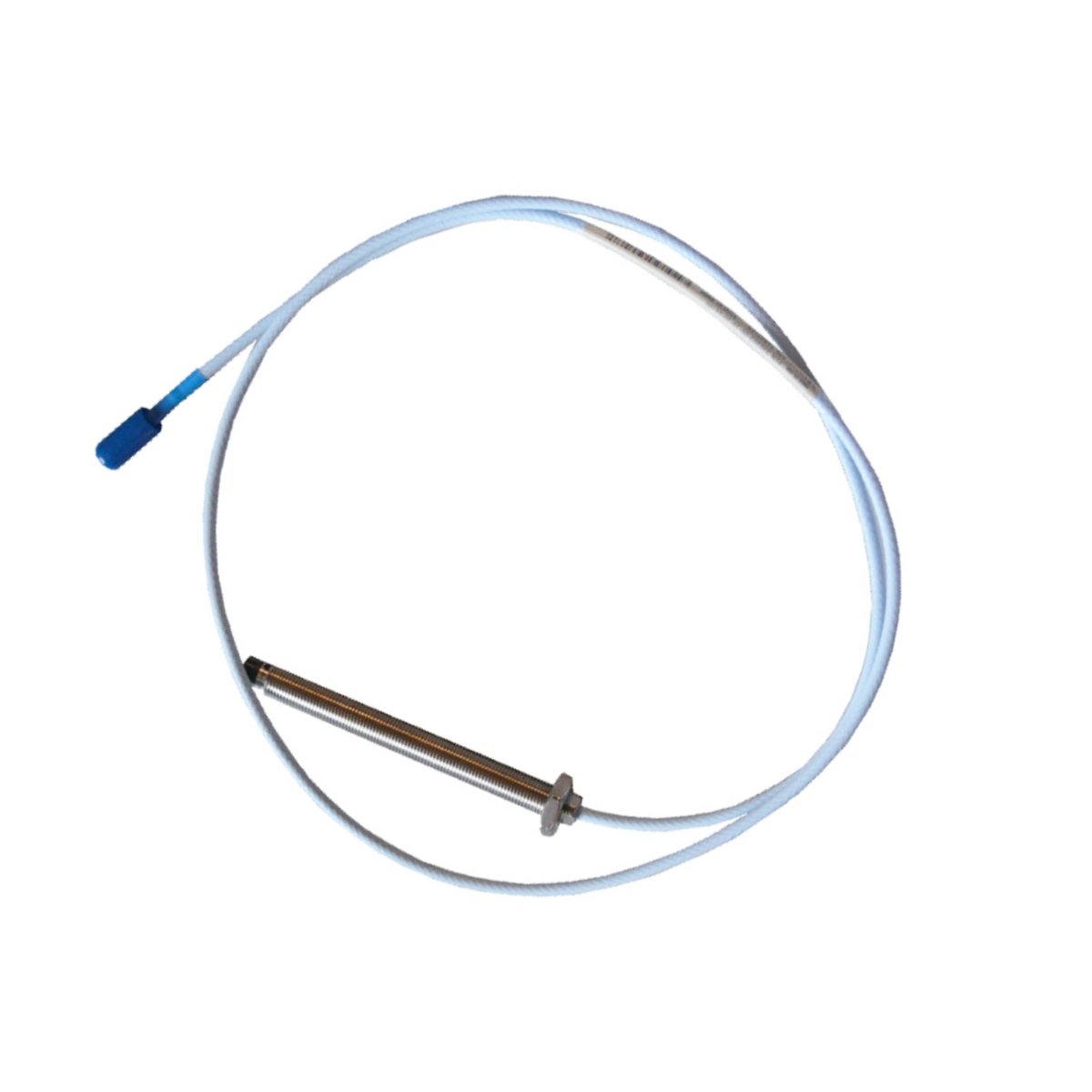

The Bently Nevada 330192-00-10-10-00 Standard Vibration Probe from the 3300 XL 8 mm ETR Series provides accurate shaft vibration and position measurement for rotating machinery. It features a 1.0-inch stainless-steel case and a 1.0-meter armored cable, combining strength and flexibility for demanding environments. Designed and manufactured in the USA, this probe ensures long-term reliability in refineries, turbines, and process industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | Bently Nevada 330192-00-10-10-00 |
| Series | 3300 XL 8 mm ETR |
| Manufacturer | Bently Nevada |
| Product Type | Standard Vibration Probe |
| Measurement Technology | Eddy Current Transducer |
| Case Length | 1.0 inch |
| Cable Length | 1.0 meter (3.3 ft) |
| Cable Type | Stainless-steel armored, double-shielded |
| DC Resistance | 7.59 Ω ± 0.50 Ω @ 25 °C |
| Frequency Response | 0.5 Hz to 10 kHz |
| Displacement Range | 0 to 2.3 mm (0 to 90 mils) |
| Sensitivity | 200 mV/mil ± 2 % |
| Linearity | ± 1.2 % of full scale |
| Resolution | 0.1 mil (2.54 µm) |
| Output Impedance | 50 Ω nominal |
| Response Time | < 1 millisecond |
| Temperature Coefficient | 0.02 % per °C |
| Operating Temperature | –52 °C to +177 °C |
| Max Tip Temperature | +218 °C |
| Cable Temp Rating | +260 °C continuous |
| Humidity Resistance | < 3 % change @ 93 % RH |
| Vibration Tolerance | 15 g operational |
| Case Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Seal Material | Viton O-ring |
| Thread Type | 3/8-24 UNF |
| Thread Engagement | 0.563 inch maximum |
| Minimum Clearance | 0.8 inch |
| Weight | 500 g |
| Origin | USA |
Durable Construction for Harsh Environments
The Bently Nevada 330192-00-10-10-00 Standard Vibration Probe resists corrosion, temperature extremes, and mechanical stress. Its PPS tip withstands high-temperature conditions, while the stainless-steel housing maintains structural integrity during prolonged vibration exposure. The Viton O-ring ensures a secure environmental seal, and the armored cable prevents signal degradation caused by bending or external impact.
Electrical and Performance Characteristics
This probe delivers fast, linear response across its operational range. Its 200 mV/mil sensitivity ensures accurate displacement and vibration readings. The 50-ohm impedance provides smooth integration with Bently Nevada 3300 XL monitoring systems, while its sub-millisecond response enables real-time fault detection and predictive maintenance applications.
Installation and Operation Guidelines
To ensure optimal results, always:
- Maintain at least 0.8-inch clearance between the probe tip and the target.
- Apply anti-rotation hardware for firm positioning.
- Avoid tight cable bends and excessive pulling force.
- Confirm grounding and gap voltage calibration before commissioning.
- Schedule annual calibration for critical assets.
Applications
The 330192-00-10-10-00 Standard Vibration Probe is ideal for turbines, compressors, generators, and pumps requiring high-accuracy shaft displacement measurement. It supports condition-based monitoring systems, helping reduce downtime and improve asset reliability.
Dimensions and Weight
- Length: 1.0 inch
- Cable Length: 1.0 meter
- Weight: 500 g
- Country of Origin: USA
Shipping and Delivery
Each Bently Nevada probe ships in protective industrial packaging with foam cushioning and anti-static barriers. Global delivery options include FedEx International Priority, UPS Worldwide Express, and DHL Express, each fully insured and trackable.
Included Accessories
- One 3300 XL 8 mm ETR Standard Vibration Probe
- Operation and installation manual
- Protective tip and connector caps
- Technical data sheet with detailed specifications
Warranty and Technical Support
The Bently Nevada 330192-00-10-10-00 includes a 12-month manufacturer warranty covering all material and performance defects. Customers can access Bently Nevada technical support for setup assistance, calibration guidance, and warranty service.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 5 × 5 × 1000 mm |
