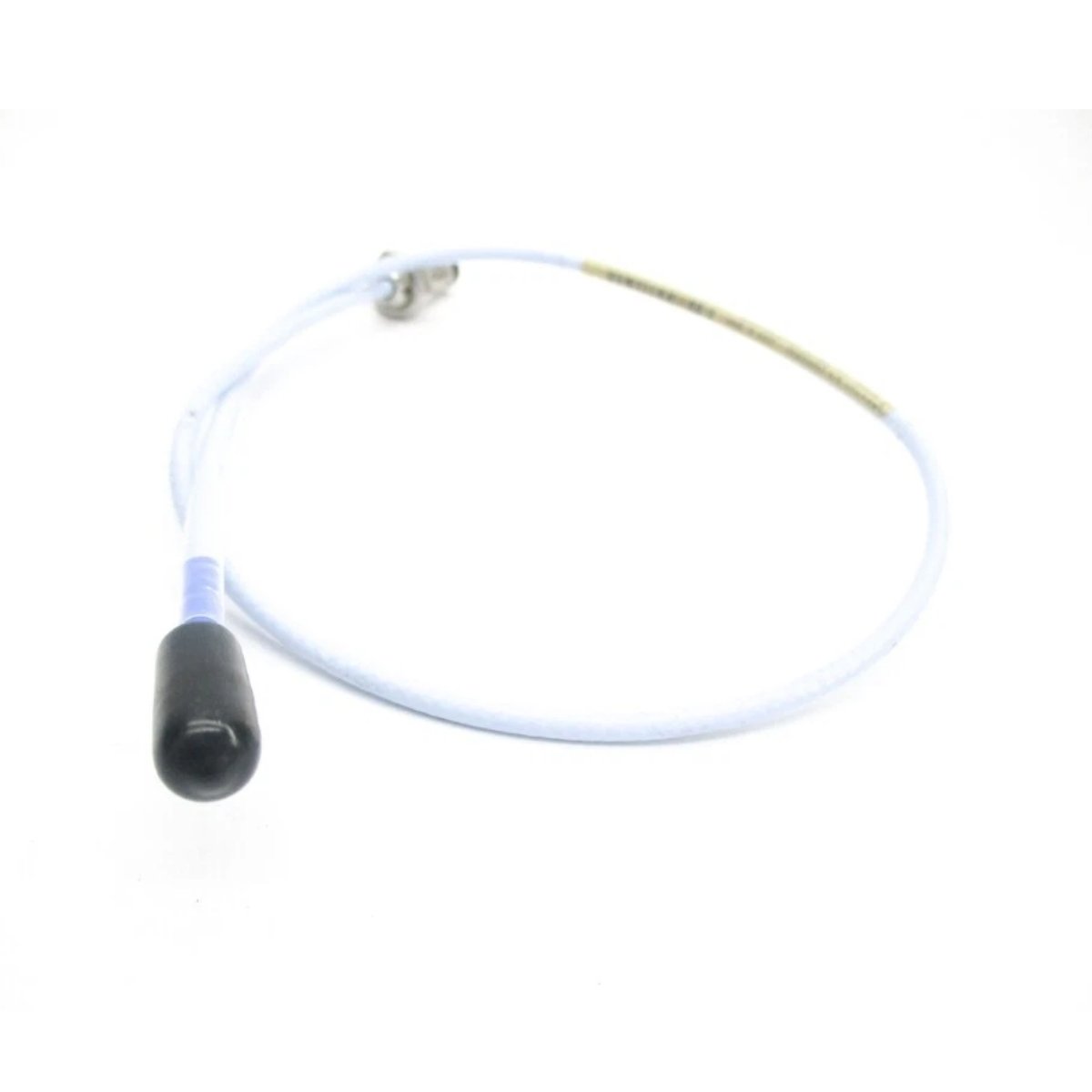

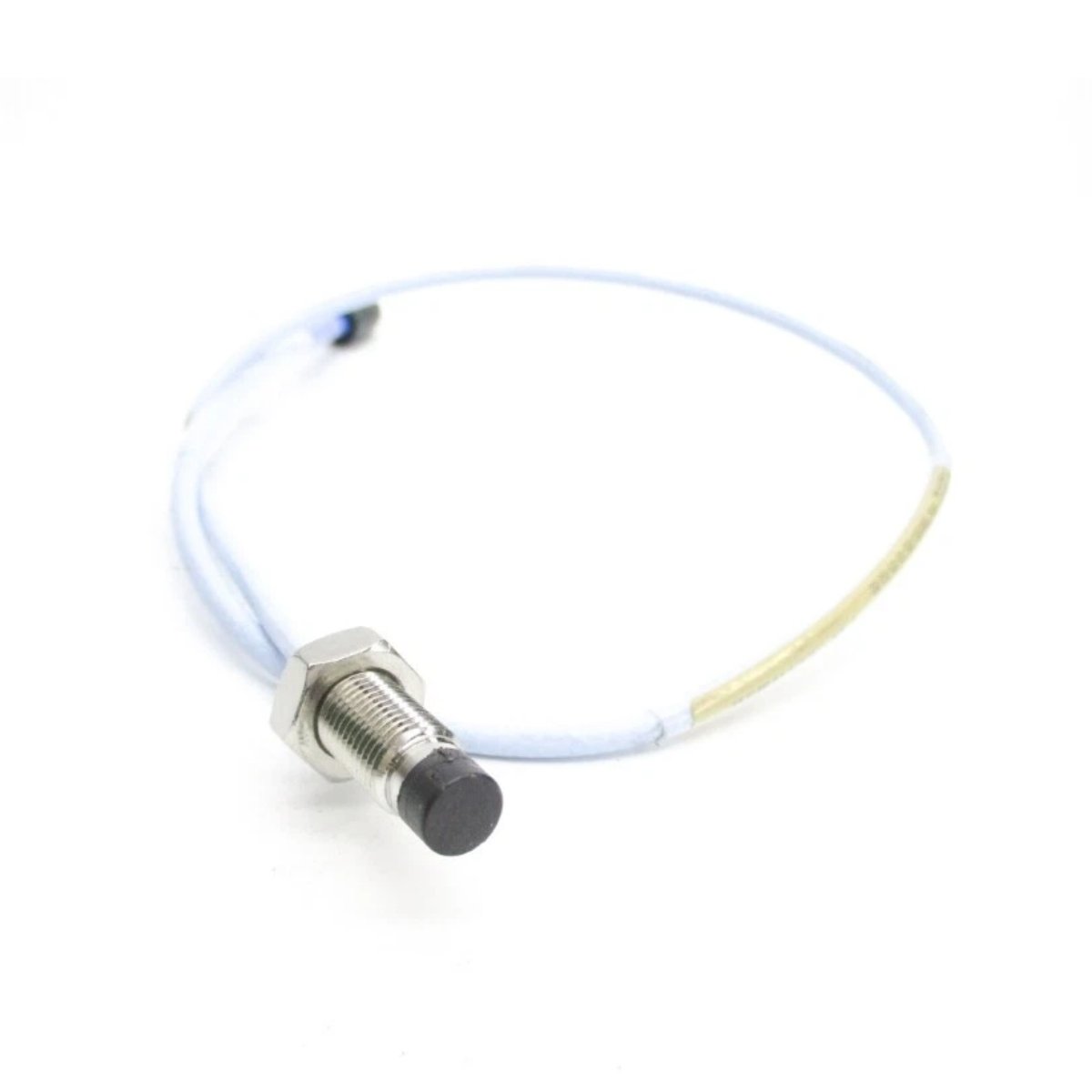

The Bently Nevada 330192-00-10-05-05 is a globally certified Standard Vibration Probe designed for precision vibration measurement in hazardous environments. It combines high sensitivity, durable construction, and advanced safety approvals, making it ideal for critical industrial applications.
Product Overview
The Bently Nevada 3300 XL 8mm ETR Probe delivers reliable and accurate vibration monitoring in demanding industrial conditions. It offers global safety certifications, ensuring full compliance in both North American and European hazardous zones. The probe integrates seamlessly with standard 3300 XL systems, providing high signal integrity and consistent performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330192-00-10-05-05 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 8mm ETR Probe |
| DC Resistance | 7.45 Ω ± 0.50 Ω |
| Frequency Range | 0.5 Hz to 12,000 Hz |
| Measurement Range | 0–80 mils (0–2.0 mm) |
| Sensitivity | 200 mV/mil ±1.5% |
| Linearity | Better than ±1% of actual reading |
| Resolution | 0.08 mils (2.0 μm) |
| Thread Type | 3/8-24 UNF |
| Cable Length | 0.5 m (1.6 ft) |
| Ingress Protection | IP67 |
| Operating Temperature | -52°C to +177°C |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel 303/304 |
| Sealing System | Viton® O-ring |
| Certifications | CSA, ATEX, IECEx |
| Application Zone | Zone 0, 1, and 2 |
| Weight | 500 g |
| Origin | USA |
Design & Construction
The 330192-00-10-05-05 features a robust stainless-steel body for maximum durability and corrosion resistance. Its Polyphenylene Sulfide (PPS) tip ensures thermal stability and long service life under extreme temperatures. A Viton® O-ring provides secure sealing, maintaining reliability in high-pressure or humid environments.
Performance and Accuracy
This probe offers outstanding measurement accuracy, enabling precise vibration detection across a broad frequency range. It supports fast response time and superior linearity, ensuring consistent data for predictive maintenance and asset protection systems.
Safety and Compliance
Certified by CSA, ATEX, and IECEx, the probe complies with international standards for hazardous area operation. It supports applications in Zone 0, Zone 1, and Zone 2 areas, allowing engineers to deploy it confidently across global facilities.
Installation Guidelines
To ensure optimal performance, follow certified installation procedures:
- Maintain correct thread engagement depth.
- Keep clearance between probe tip and target surface.
- Use approved barriers and isolators in hazardous areas.
- Verify grounding and wiring compliance.
Shipping & Documentation
Each unit includes:
- One Bently Nevada 330192-00-10-05-05 probe
- Compliance certificates (CSA, ATEX, IECEx)
- Installation and safety manual
- Protective end caps and mounting accessories
Warranty & Support
Bently Nevada provides a 12-month global warranty, covering all certified materials and components. Technical support includes installation guidance, compliance verification, and system compatibility assistance.
Product Origin, Size & Weight
- Origin: USA
- Length: 1.0 inch (probe body)
- Cable Length: 0.5 meter (1.6 feet)
- Weight: 500 g
Key Features
- Global safety certifications (CSA, ATEX, IECEx)
- High sensitivity with precise displacement accuracy
- Robust stainless-steel housing and armored cable
- Compatible with all 3300 XL monitoring systems
- Wide temperature tolerance and IP67 protection
Typical Applications
- Turbomachinery monitoring
- Rotating equipment vibration analysis
- Compressor and pump protection systems
- Predictive maintenance for hazardous areas
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 5 × 5 × 1000 mm |
