Overview

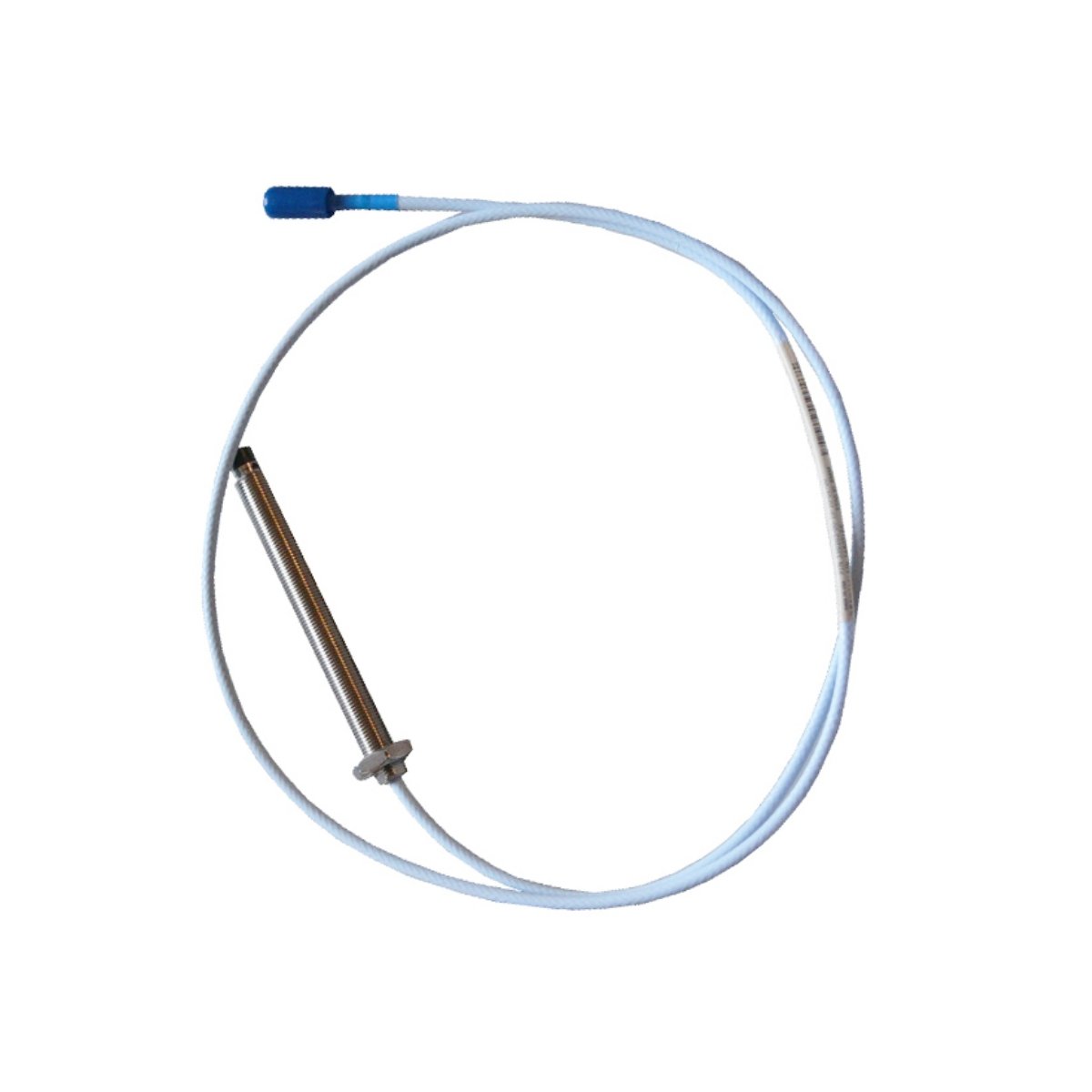

The Bently Nevada 330192-00-10-05-00 is a high-performance 3300 XL series vibration probe, designed for precise industrial monitoring. Its compact 1.0-inch case and 0.5-meter cable enable easy installation in tight spaces, providing accurate displacement readings without requiring additional agency approvals.
Core Technical Specifications
| Specification | Details |
|---|---|
| Model | Bently Nevada 330192-00-10-05-00 |
| Series | 3300 XL |
| Case Dimensions | 1.0 inch length, armored stainless steel |
| Cable Length | 0.5 meters (1.6 ft) |
| Electrical Resistance | 7.45 Ω ± 0.50 Ω DC |
| Measurement Range | 0 to 2.0 mm (80 mils) displacement |
| Frequency Response | DC to 12 kHz |
| Case Material | AISI 303/304 stainless steel |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Thread | 3/8-24 UNF, 0.563-inch max engagement |
| Sealing | Viton O-ring |
| Armor Protection | Full stainless steel armor |
| Weight | 500 g |
| Origin | USA |
Environmental Performance
- Operating Temperature: -52°C to +177°C
- Extended Tip Temperature: up to +218°C
- Humidity Resistance: Maintains performance at 93% RH
- Thermal Cycling: 1000 cycles from -40°C to +120°C
- Minimum Temperature Warning: Avoid below -34°C to protect seals
Hazardous Area Compatibility
- Intrinsic Safety: Compatible with zener barriers (drawing 141092)
- Non-Incendive: Works with circuits per drawing 140979
- Class I Zone 0: AEx/Ex ia IIC T5 to T1 Ga
- Class I Zone 2: AEx/Ex nA IIC T5 to T1 Gc
- Group Classification: A, B, C, D, E, F, G
Installation Guidelines
- Maintain a minimum 0.8-inch clearance from internal casing surfaces
- Follow drawing specifications for hazardous locations
- Use proper cable strain relief to prevent mechanical stress
- Ensure correct probe-to-target gap for accurate readings
- Verify electrical continuity and insulation resistance prior to operation
Shipping & Delivery
- Packaged with industrial-grade protection
- FedEx Ground for domestic U.S. shipments
- UPS Worldwide for international delivery
- DHL Express for urgent shipments with tracking
- Includes full documentation and handling instructions
Technical Notes
- Agency approvals not required: Suitable for certified systems with proper barriers.
- 1.0-inch case advantage: Allows deeper threading engagement in thicker mounting surfaces.
- Hazardous locations: Use with intrinsic safety barriers per specifications.
- Cable length usage: Ideal for installations with monitors near the measurement point.
- Temperature classification: Select based on ambient temperature schedules.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 5 × 5 × 1000 mm |
