Overview

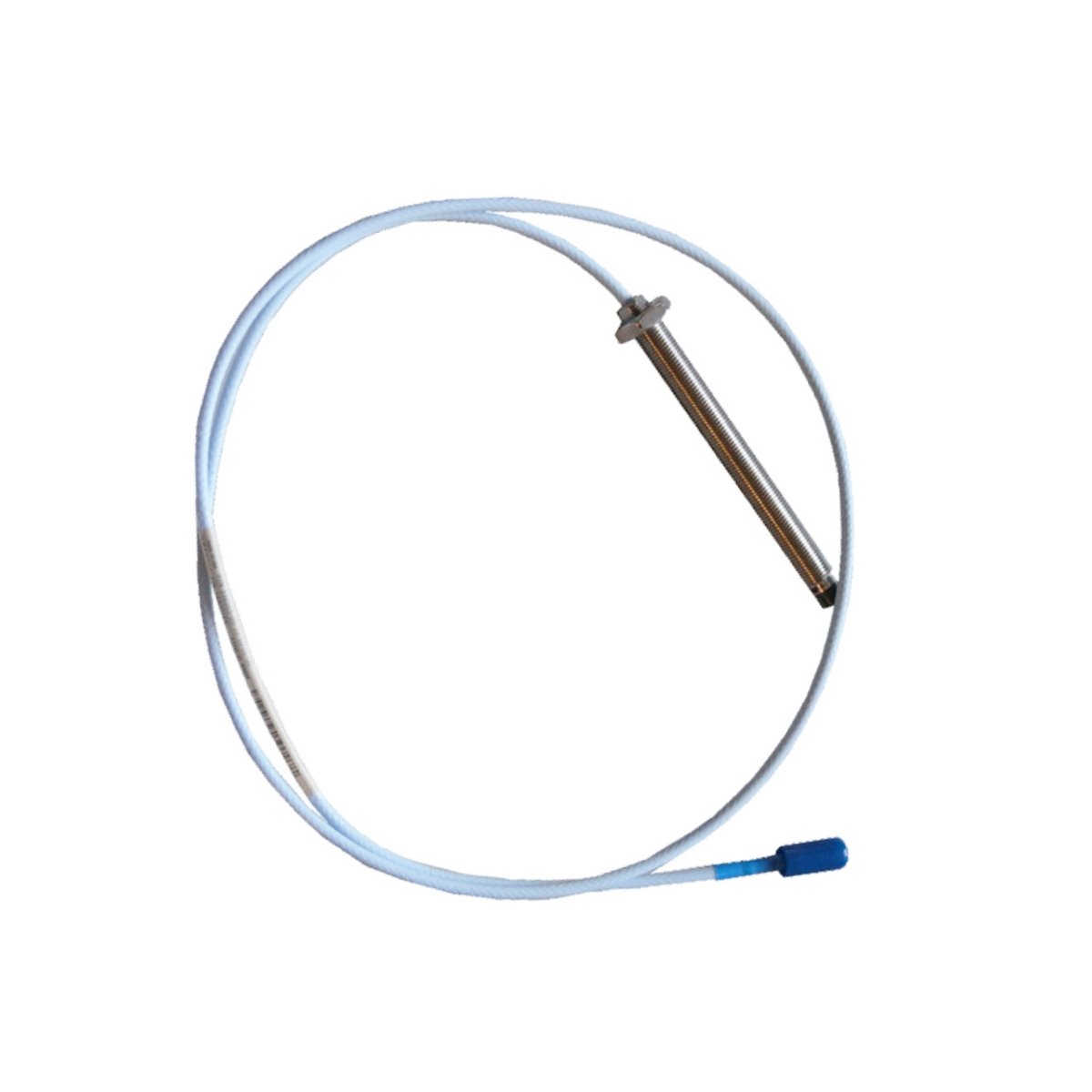

The Bently Nevada 330192-00-08-90-CN 3300 XL 8mm ETR probe provides reliable vibration monitoring for standard industrial machinery. Its 1.0-inch case and short 0.5-meter cable allow compact installations while maintaining precise measurements.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Bently Nevada 330192-00-08-90-CN |
| Series | 3300 XL 8mm ETR System |
| Case Dimensions | 1.0-inch stainless steel housing |
| Cable Length | 0.5 meters (1.6 ft) for close-proximity setups |
| Electrical Resistance | 7.45 Ω ± 0.50 Ω DC |
| Thread Specification | 3/8-24 UNF with 0.563-inch maximum engagement |
| Operating Temperature | -52°C to +177°C |
| Maximum Tip Temperature | +218°C |
| Cable Thermal Rating | +260°C continuous exposure |
| Safety Options | Intrinsic Safety Available |
| Seal Material | Viton O-ring for environmental protection |
| Body Material | 304 Stainless Steel |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Environmental Test | IEC 68-2-3 Compliant |
| Weight | 500 g |
| Origin | USA |
Installation Guidelines
- Ensure the unthreaded section is 0.8 inches less than the 1.0-inch case.
- Do not exceed 0.563-inch thread engagement during installation.
- Install probes above -34°C to maintain optimal seal performance.
- Use proper intrinsic safety barriers when required in hazardous areas.
Applications
- Ideal for general industrial machinery vibration monitoring.
- Compact cable length suits installations near monitoring equipment.
- Works effectively in environments with moderate humidity and temperature ranges.
- Supports intrinsic safety installation in Class I hazardous areas with proper barriers.
Compliance & Safety
- No agency approvals required for standard applications.
- Optional intrinsic safety allows use in hazardous areas per drawing 141092.
- Humidity performance: less than 3% change at 93% relative humidity for 56 days.
- Ensures reliable operation in industrial environments without additional certifications.
Shipping & Delivery
- Ships immediately from stock with protective packaging.
- Standard delivery via FedEx, UPS, and DHL worldwide.
- Includes documentation and technical datasheets for installation and operation.
Warranty & Support
- 12-month warranty against manufacturing defects and material quality.
- Technical support available for installation, calibration, and troubleshooting.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 5 × 5 × 1000 mm |
