Overview

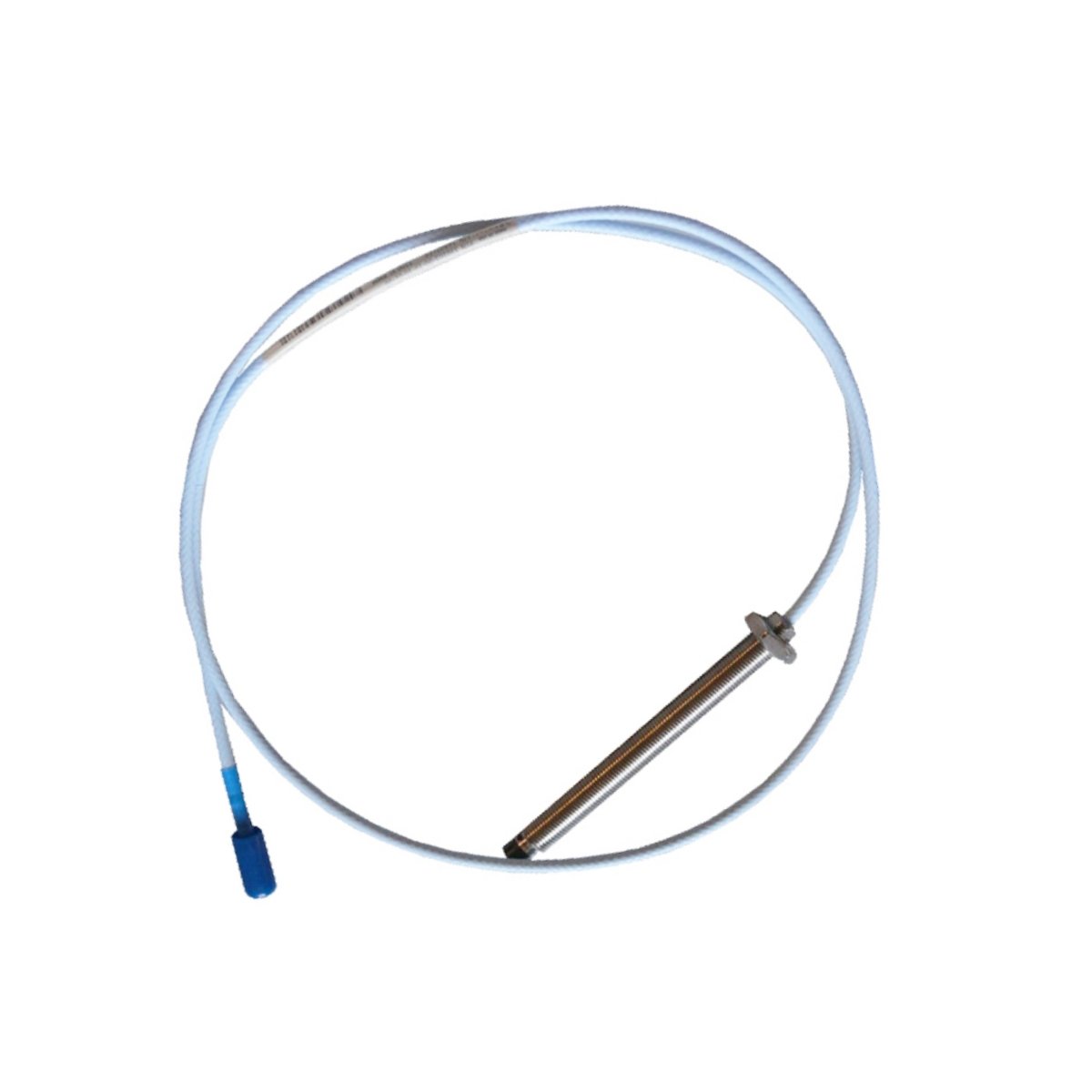

The Bently Nevada 330192-00-08-90-00 3300 XL 8mm ETR probe provides precise vibration monitoring over extreme distances. Its 0.8-inch case and 9.0-meter cable ensure accurate measurements in large industrial facilities.
Core Technical Specifications
| Specification | Details |
|---|---|
| Model | Bently Nevada 330192-00-08-90-00 |
| Series | 3300 XL 8mm ETR System |
| Case Dimensions | 0.8-inch compact stainless steel housing |
| Cable Length | 9.0 meters (29.5 ft) for long-distance applications |
| Electrical Resistance | 9.87 Ω ± 0.50 Ω DC across full cable length |
| Frequency Response | 0.5 Hz to 6 kHz for detailed vibration analysis |
| Displacement Measurement | 0 to 3.8 mm (0 to 150 mils) full range |
| System Sensitivity | 200 mV/mil ±3% accuracy tolerance |
| Linearity | Better than ±2% of actual output signal |
| Signal Resolution | 0.25 mils (6.35 microns) minimum detectable |
| Thread Specification | 3/8-24 UNF with 0.563-inch engagement limit |
| Armor Protection | Full stainless steel interlocked armor |
| Tip Material | Polyphenylene Sulfide (PPS) high-strength material |
| Sealing | Viton® O-ring environmental protection |
| Operating Temperature | -52°C to +177°C continuous use |
| Maximum Tip Temperature | +218°C |
| Cable Thermal Rating | Maximum +260°C continuous exposure |
| Humidity Endurance | Less than 3% ASF change at 93% RH |
| Ingress Protection | IP68 rated for harsh conditions |
| Voltage Rating | 250V RMS maximum |
| Certifications | CSA, ATEX, IECEx |
| Hazardous Area Rating | II 2G Ex ia IIC T1-T5 Ga |
| Weight | 500 g |
| Origin | USA |
Installation Guidelines
- Route the 9.0-meter cable carefully, avoiding sharp bends and abrasion points.
- Use strain relief every 1.5 meters to prevent mechanical stress.
- Maintain at least 0.8-inch clearance between probe tip and target surface.
- Apply anti-seize compound to threads for secure installation.
- Follow intrinsic safety requirements in hazardous areas exactly.
Applications
- Monitors vibration in large-scale industrial plants and offshore facilities.
- Enables measurement from remote locations up to 9.0 meters from control equipment.
- Supports outdoor and harsh environment installations with IP68 protection.
- Maintains accurate readings over long distances with minimal signal attenuation.
Shipping & Delivery
- FedEx International Priority, UPS Worldwide Express, and DHL Express for fast global shipping.
- All shipments include protective packaging, insurance, and complete documentation.
- Packages contain one 3300 XL 8mm ETR probe with 9.0-meter cable and end caps.
- Full installation and operation manual with technical datasheet included.
Warranty & Support
- Provides 12-month warranty against manufacturing defects.
- Covers materials and workmanship quality for reliable operation.
- Expert technical support for installation and troubleshooting.
- Rapid response service for warranty claims processing.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 5 × 5 × 1000 mm |
