Overview

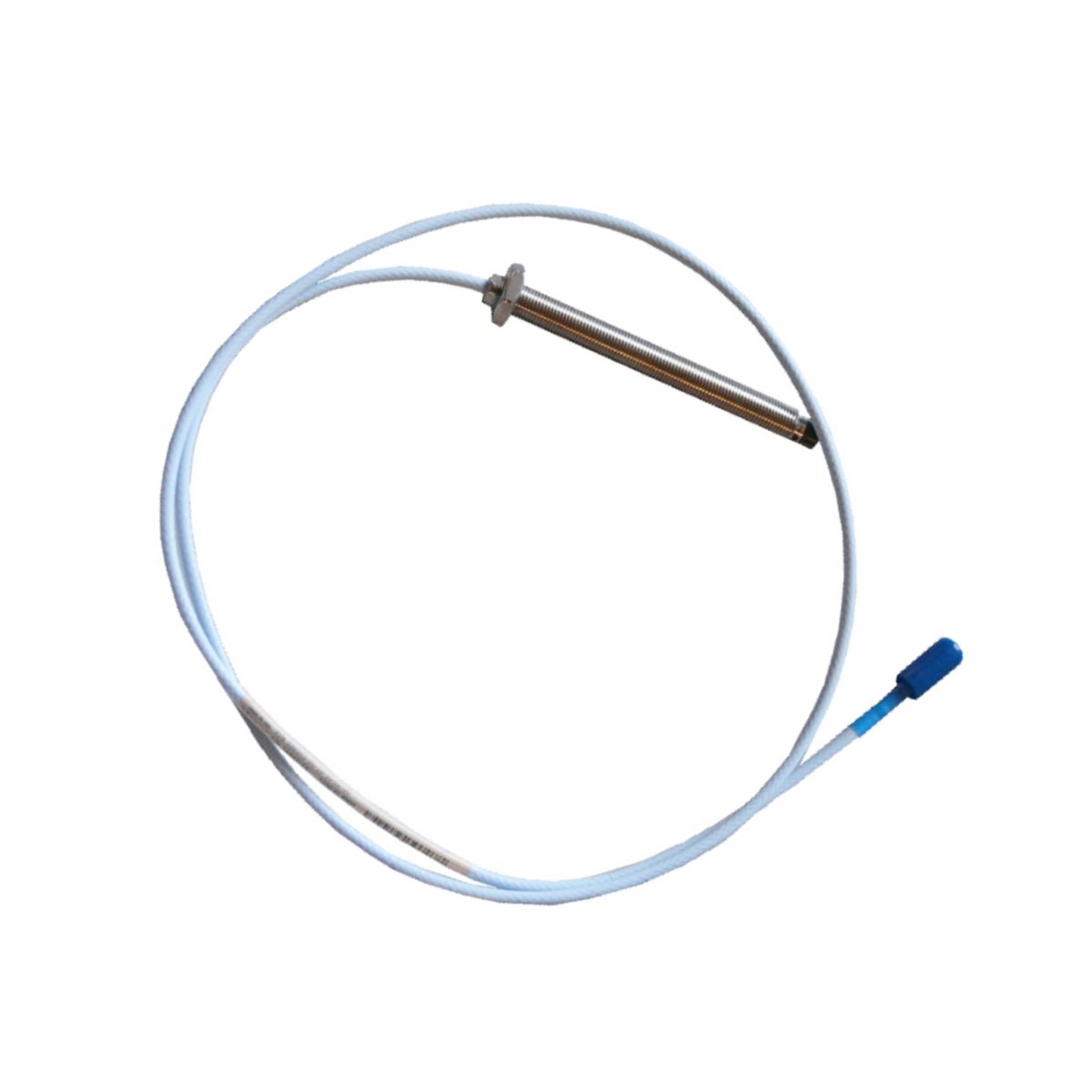

The Bently Nevada 330192-00-08-50-05 3300 XL 8mm ETR probe delivers ultra-long reach vibration monitoring for large industrial applications. Its 5.0-meter cable ensures flexible installation across complex machinery layouts. This probe works exclusively with matching 5-meter Proximitor sensors for optimal measurement accuracy and system performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Bently Nevada 330192-00-08-50-05 |
| Series | 3300 XL 8mm ETR |
| Case Length | 0.8-inch compact stainless steel housing |
| Cable Length | 5.0 meters (16.4 ft) maximum reach |
| Electrical Resistance | 8.73 Ω ± 0.50 Ω at full cable length |
| Measurement Range | 0 to 2.0 mm (80 mils) displacement |
| Frequency Response | DC to 8 kHz for precise vibration analysis |
| System Compatibility | Works only with 5-meter Proximitor sensors |
| Operating Temperature | -52°C to +177°C standard range |
| Tip Maximum Temperature | +218°C |
| Cable Thermal Rating | -51°C to +260°C continuous |
| Seal Material | Viton O-ring for pressure differential protection |
| Tip Material | Polyphenylene Sulfide (PPS) for durability |
| Thread Specification | 3/8-24 UNF, 0.563-inch maximum engagement |
| Armor Protection | Full stainless steel interlocked cable armor |
| Weight | 500 g |
| Origin | USA |
Installation Guidelines
- Use only with compatible 5-meter Proximitor sensor systems for correct calibration.
- Route cable carefully to prevent sharp bends and mechanical stress points.
- Maintain at least 0.8-inch clearance between probe tip and internal surfaces.
- Apply high-quality thread sealant for vibration-prone environments.
- Verify system grounding and electrical continuity before commissioning.
Applications
- Ideal for long-distance machinery monitoring in power plants and industrial facilities.
- Suitable for large compressor stations and remote monitoring locations.
- Excellent for hazardous environments requiring certified intrinsically safe operation.
- Armored cable ensures reliability in harsh or outdoor industrial conditions.
Safety & Compliance
- CSA certified for Canadian industrial applications.
- ATEX compliant for European explosive atmosphere requirements.
- IECEx validated for international hazardous locations.
- Temperature Classification: T2 suitable for +177°C environments.
- Equipment Protection Level: EPL Gb for Group II applications.
Shipping & Delivery
- Special packaging protects the 5.0-meter cable during transport.
- FedEx International Priority ensures urgent global delivery.
- UPS Worldwide Express provides reliable international shipments.
- DHL Express supports time-critical deliveries with full tracking.
- All orders include insurance coverage and complete documentation.
Professional Questions
Why is a 5-meter Proximitor required?
System calibration and electrical performance are optimized specifically for this cable length.
Which industries use 5-meter cable probes?
Power generation, large industrial plants, and distant monitoring applications benefit most.
Can standard Proximitor sensors be used instead?
No, the probe requires the matching 5-meter sensor for accurate operation.
How should the cable be handled and stored?
Keep the cable loosely coiled and protected from kinks during storage and installation.
Why is this probe suitable for hazardous areas?
International certifications ensure safe operation in explosive atmospheres worldwide.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 5 × 5 × 1000 mm |
