Overview

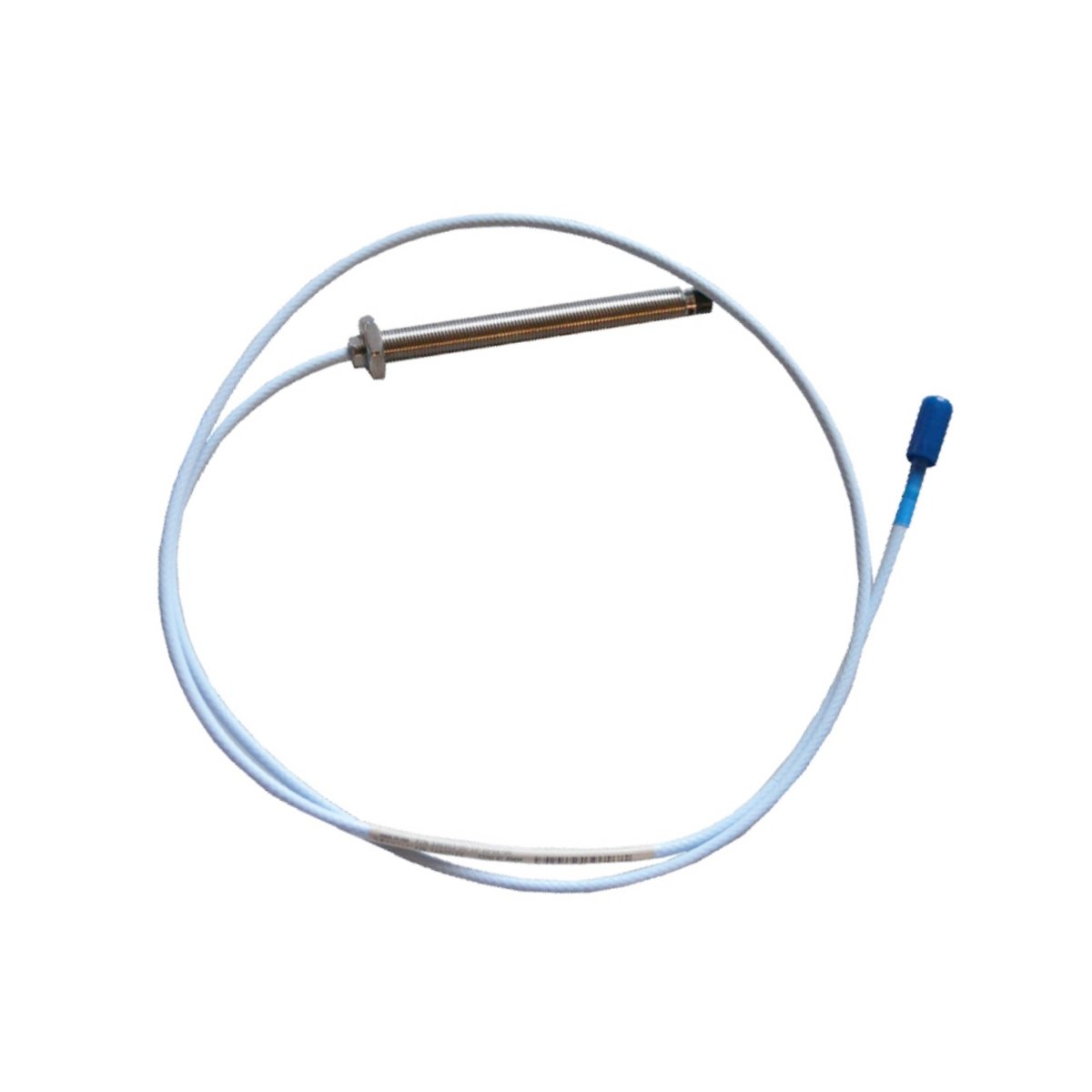

The Bently Nevada 330192-00-08-50-00 3300 XL 8mm ETR probe delivers extreme reach vibration monitoring for complex industrial installations. Its 5.0-meter cable ensures accurate measurements across distant machinery while maintaining signal integrity. This probe works exclusively with 5-meter Proximitor sensors for optimal performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Bently Nevada 330192-00-08-50-00 |
| Series | 3300 XL 8mm ETR |
| Case Dimensions | 0.8-inch compact stainless steel housing |
| Cable Length | 5.0 meters (16.4 ft) |
| Thread Specification | 3/8-24 UNF with 0.563-inch max engagement |
| Electrical Resistance | 8.73 Ω ± 0.50 Ω at 25°C |
| Displacement Range | 0 to 130 mils (0 to 3.3 mm) |
| Frequency Response | 0.5 Hz to 8,000 Hz |
| System Sensitivity | 200 mV/mil ±2.5% |
| Linearity Accuracy | ±1.5% of actual reading |
| Minimum Resolution | 0.2 mils (5.1 µm) |
| Operating Temperature | -52°C to +177°C |
| Tip Maximum Temperature | +218°C |
| Cable Temperature Rating | -51°C to +260°C |
| Humidity Performance | <3% ASF drift at 93% RH |
| Ingress Protection | IP68 |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 stainless steel |
| Sealing System | Viton® O-ring |
| Armor Protection | Full stainless steel interlocked armor |
| Weight | 500 g |
| Origin | USA |
Installation Guidelines
- Use exclusively with compatible 5-meter Proximitor sensors for accurate calibration.
- Route cable carefully to avoid sharp bends and mechanical stress.
- Maintain minimum 0.8-inch clearance between probe tip and surrounding surfaces.
- Apply high-temperature thread sealant for vibration-prone areas.
- Verify grounding and electrical continuity before operation.
Safety & Compliance
- Intrinsic Safety: AEx/Ex ia IIC T1-T5 Ga for Zone 0 areas.
- Non-Incendive Rating: AEx/Ex nA IIC T1-T5 Gc certified.
- Enhanced Protection: AEx/Ex ec IIC T1-T5 Gc classification.
- Gas Groups: A, B, C, D; Dust Groups: E, F, G.
Applications
- Ideal for power plants, compressor stations, and large industrial machinery.
- Suitable for hazardous environments requiring certified intrinsically safe operation.
- Armored cable ensures reliability in outdoor and harsh industrial conditions.
Shipping & Delivery
- Specialized packaging protects the 5.0-meter cable during transit.
- FedEx International Priority, UPS Worldwide Express, DHL Express for urgent deliveries.
- Complete tracking, insurance coverage, and customs documentation included.
Package Contents
- One 3300 XL 8mm ETR probe with 5.0-meter integrated cable
- Installation and operation manual
- Protective end caps for probe tip and connector
- Technical specification and compliance documentation
Warranty & Support
- 12-month warranty against manufacturing defects
- Full coverage for materials and workmanship
- Expert technical support for installation and operation guidance
FAQs
Why does this probe require 5-meter Proximitor sensors?
The cable length needs specialized signal conditioning provided only by 5-meter Proximitors.
What industries use this probe?
Power generation, industrial plants, and remote machinery monitoring.
Can it operate in Class I Division 1 hazardous areas?
Yes, with proper intrinsically safe barriers per drawing 141092.
What differentiates this from shorter models?
Enhanced signal integrity and specialized cable construction enable long-reach monitoring.
How to select correct temperature classification?
Consult the temperature schedule based on your ambient operating conditions.
