Product Overview

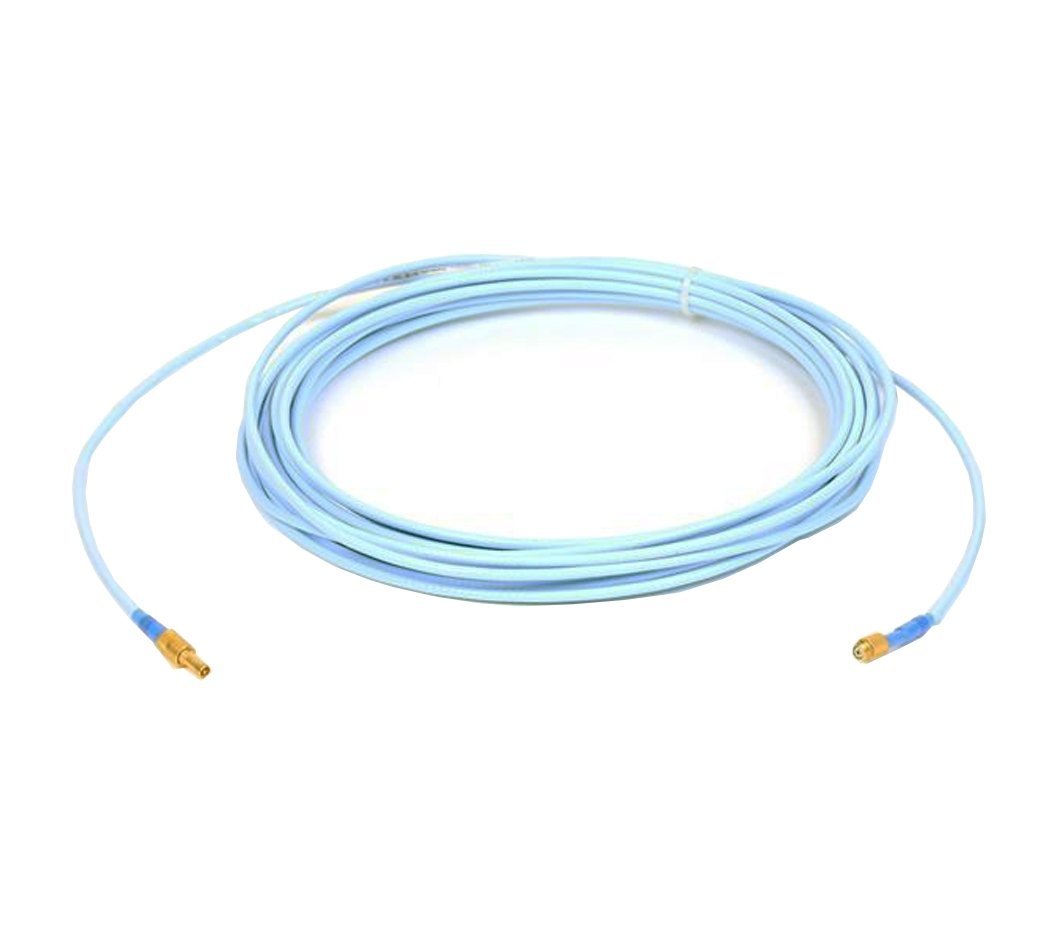

The Bently Nevada 330190-080-01-00 3300 XL Extended Temperature Range (ETR) Extension Cable provides reliable signal transmission under extreme environmental conditions. Moreover, it is engineered for precision monitoring in high-temperature industrial applications. In addition, the cable maintains mechanical stability and electrical integrity across long distances.
Functional Highlights
- High-Temperature Capability: Operates safely between -52°C and +260°C, supporting harsh industrial environments. Therefore, monitoring accuracy remains uncompromised under extreme conditions.
- Durable Construction: Armored design with perfluoroalkoxy (PFA) insulation ensures mechanical and chemical resistance. Furthermore, connectors are gold-plated for consistent electrical performance.
- Compatibility: Electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. For instance, maintaining the minimum bend radius guarantees proper installation and sensor operation.
- Flexibility: Available in multiple lengths, including 8.0 meters, accommodating diverse plant layouts. In addition, the cable supports both standard and extended temperature range Proximitor sensors.
Technical Data
| Specification | Details |
|---|---|
| Model | 330190-080-01-00 |
| Cable Type | 3300 XL ETR Extension Cable |
| Length Option (A) | 8.0 meters (26.2 ft) |
| Cable Option (B) | Armored |
| Agency Approval (C) | Not required |
| Standard Cable Material | 75Ω triaxial, FEP insulated |
| Extended Temp Cable Material | 75Ω triaxial, PFA insulated |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Max Connector Torque | 0.565 N•m (5 in•lbf) |
| Min Cable Bend Radius | 25.4 mm (1.0 in) |
| Armored Cable Weight | 103 g/m (1.5 oz/ft) |
| Operating Temp | Standard: -52°C to +177°C |
| Extended: -52°C to +260°C |
Typical Applications
The 3300 XL ETR Extension Cable is ideal for high-temperature machinery monitoring and critical industrial processes. For instance, it is suitable for steam turbines, compressors, and generators exposed to extreme temperatures. Moreover, it supports reliable signal transmission for both short-term operation and long-term monitoring campaigns. In addition, the cable’s armored construction minimizes physical damage risks during installation or operation.
Details
| Weight | 0.103 kg |
|---|
