High-Performance Condition Monitoring Sensor

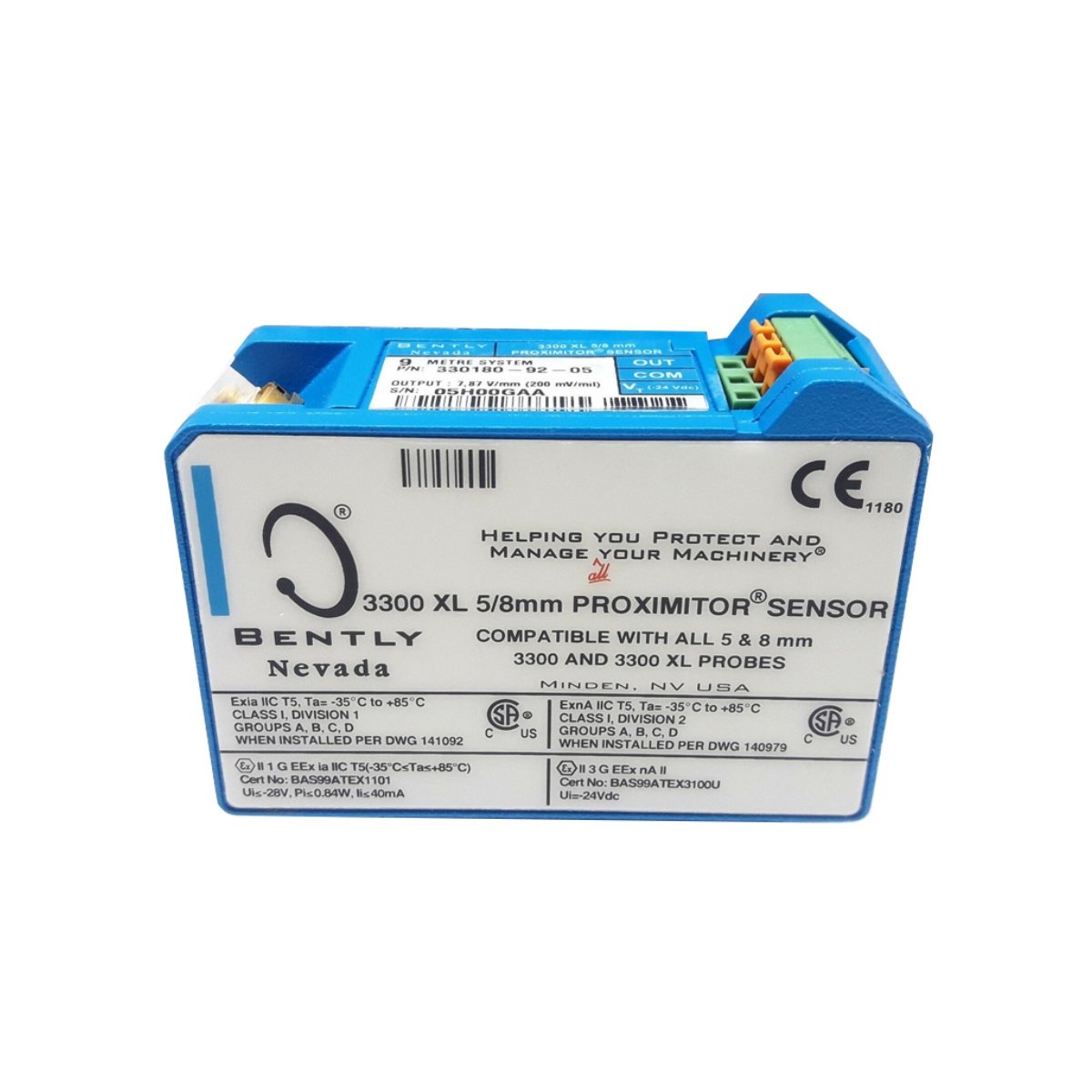

The Bently Nevada 330180-92-CN from the 3300 XL Proximitor® Sensor series delivers stable vibration and displacement measurements for mission-critical rotating machinery. It uses durable A308 aluminum construction and supports 5 mm and 8 mm proximity probes, so it offers strong compatibility across industrial monitoring systems.
Key Features and Functionality
This sensor maintains reliable accuracy across extreme temperatures, while improved RFI/EMI immunity protects signal integrity in electrically noisy environments. It supports simple SpringLoc wiring, and engineers can mount the module on DIN-rail or panel layouts for flexible installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330180-92-CN |
| Series | 3300 XL Proximitor® Sensor |
| Product Type | Proximitor Sensor |
| Country of Origin | U.S.A. |
| Material | A308 aluminum |
| Compatible Probe Types | 3300-series 5 mm, 3300 8 mm, 3300 XL 8 mm |
| Total System Length | 9.0 m (29.5 ft) |
| Operating Temperature | -51 °C to +100 °C |
| Storage Temperature | -51 °C to +105 °C |
| Operating Voltage | 24 VDC (nominal) |
| Frequency Range | 50–400 Hz |
| Output Signal | Analog 0–10 VDC |
| Humidity Tolerance | Up to 95% RH, non-condensing |
| Shock Rating | Up to 50 g |
| Vibration Rating | Up to 5 g |
| Wiring Terminals | SpringLoc terminal strips |
| Mounting Options | DIN-rail or panel installation |
| Certifications | CE, CN approval option |
| Weight | 0.246 kg (0.541 lbs) |
Dimensions & Weight
- Weight: 0.246 kg (0.541 lbs)
- System Length: 9.0 meters (29.5 feet)
- Material: A308 aluminum enclosure
Origin
- Made in: U.S.A.
Details
| Weight | 0.246 kg |
|---|
