Overview

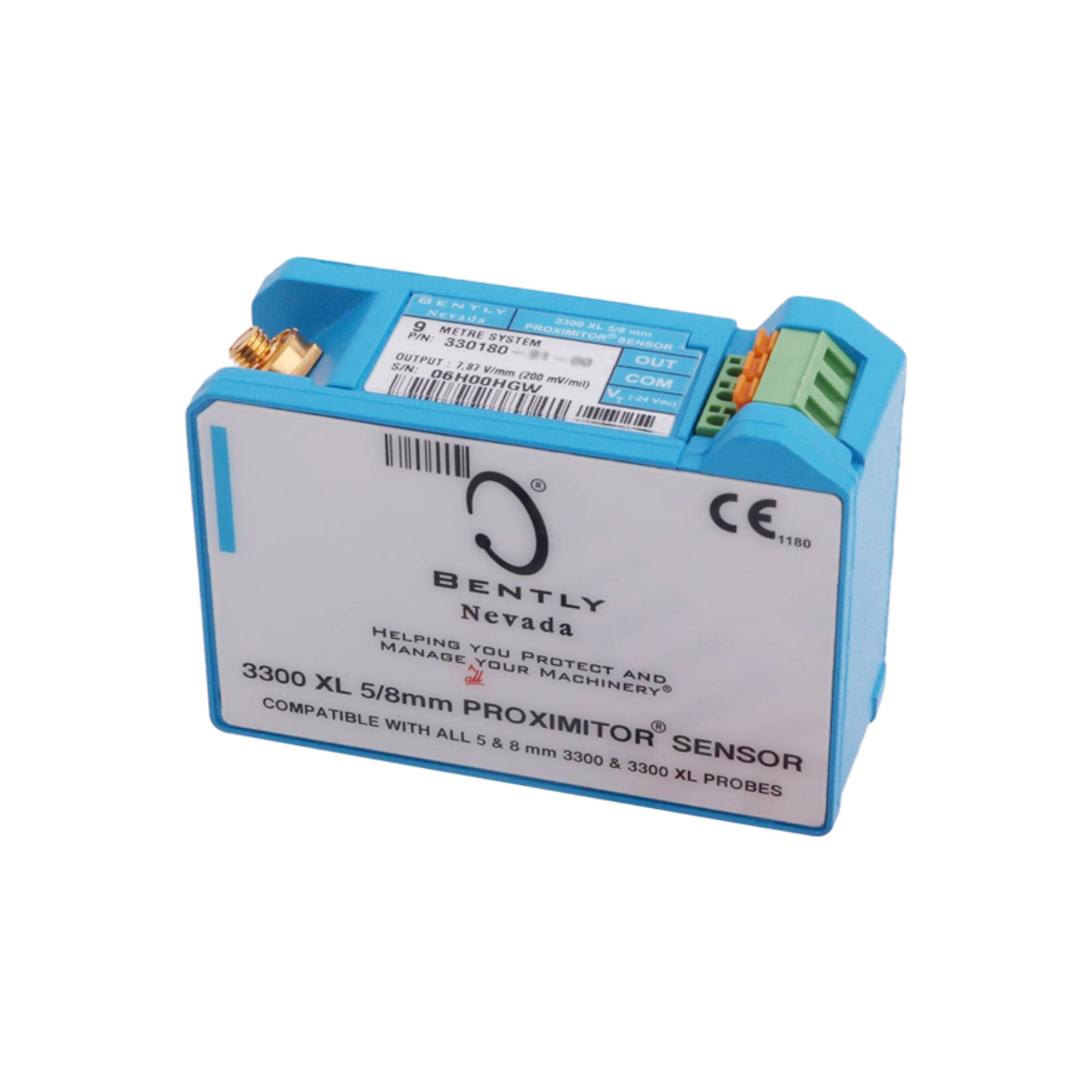

The Bently Nevada 330180-91-00 is part of the 3300 XL Proximitor Sensor family, designed for precise, non-contact measurement of shaft vibration and position in rotating machinery. It supports both 3300-series 5 mm and 3300 XL 8 mm proximity probes, offering high accuracy and reliable signal transmission.

Built with durable A308 aluminum housing and gold-plated connectors, this sensor ensures long service life and consistent performance even under harsh industrial environments. It provides dependable vibration feedback essential for predictive maintenance and machinery protection systems.

Electrical Specifications

This model works with a single 5 mm or 8 mm probe and corresponding extension cable.
Operating voltage ranges from -17.5 Vdc to -26 Vdc, with a maximum current consumption of 12 mA.
When used with intrinsic safety barriers, it supports -23 Vdc to -26 Vdc, though operation above -23.5 Vdc may reduce the linear range slightly.
The supply sensitivity remains below 2 mV change in output voltage per volt change in input.
Its output resistance is approximately 50 ohms, maintaining stable signal quality.

Environmental Limits

The 330180-91-00 performs reliably in a wide range of temperatures.
Operating range: -52°C to +100°C (-62°F to +212°F).
Storage range: -52°C to +105°C (-62°F to +221°F).
This makes it suitable for compressors, turbines, and other equipment exposed to fluctuating ambient conditions.

Material and Physical Characteristics

The sensor body is made of A308 aluminum, ensuring strength and corrosion resistance.
Connectors use gold-plated brass or beryllium copper to maintain clean signal contact.
System length options include 5 meters, 9 meters, or 1 meter probe only configurations.
Total weight is around 246 grams (8.67 ounces), making it compact and easy to install.

Ordering Information

Part number: 330180-91-00
Configuration code: 330180-AA-BB
Option A (Length and Mounting): 91 = 9.0 meters, DIN mount
Option B (Agency Approval): 00 = Not required

The 3300 XL Proximitor Sensor family provides flexible installation choices, allowing engineers to match system length and mounting according to plant layout and equipment requirements.

FAQ

Q1: Are your Bently Nevada 330180-91-00 sensors brand new?
Yes, all products are 100% original and brand-new from the manufacturer.

Q2: Is this model in stock?
We usually keep this sensor in regular stock, and it ships within 3 to 14 days after order confirmation.

Q3: What delivery methods do you provide?
We normally ship via DHL, FedEx, or UPS, ensuring fast and safe international delivery.

Q4: Can it be used with both 5 mm and 8 mm probes?
Yes, the 330180-91-00 supports both 5 mm and 8 mm probe configurations.

Q5: What if there’s a quality problem after purchase?
We provide a 30-day return and replacement policy for any verified quality issue.

​
