Product Overview

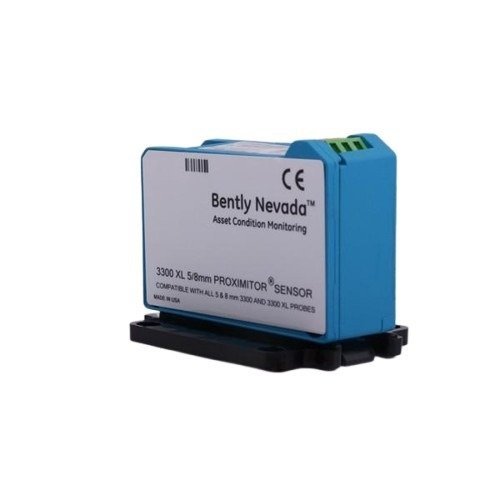

The Bently Nevada 330180-50-00 3300 XL Proximitor Sensor delivers accurate and stable vibration and displacement monitoring in rotating machinery. It provides superior reliability for condition monitoring systems in power generation, oil and gas, and heavy industrial applications.
Moreover, this 5.0-meter panel-mount version ensures optimal signal integrity across a wide temperature range. The sensor’s robust aluminum housing and gold-plated connectors guarantee long-term performance in demanding environments.
Functional Advantages
- High Accuracy: Maintains precise vibration and displacement readings under varying temperatures.
- Extended Compatibility: Works seamlessly with 3300 series 5 mm and 8 mm probes.
- Durable Design: A308 aluminum housing and corrosion-resistant connectors ensure ruggedness.
- Stable Power Operation: Supports -17.5 to -26 Vdc input range for consistent signal output.
- Temperature Versatility: Performs reliably from -51 °C to +100 °C in standard use.
- Low Sensitivity Drift: Less than 2 mV variation per volt change in supply voltage.
In addition, its consistent scale factor and displacement sensitivity make it ideal for both standard and extended temperature applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330180-50-00 |
| System Length | 5.0 m (16.4 ft), panel mount |
| Compatible Probes | 3300-series 5 mm, 8 mm, 3300 XL 8 mm |
| Power Requirements | -17.5 to -26 Vdc (12 mA max) |
| Output Resistance | 50 Ω |
| ISF Accuracy (Standard 5 m) | ±10% of 7.87 V/mm (200 mV/mil) |
| DSL Accuracy (Standard 5 m) | ±0.076 mm (±3 mils) |
| Operating Temperature | -51 °C to +100 °C (-60 °F to +212 °F) |
| Material | A308 aluminum |
| Weight | 246 g (8.67 oz) |
| Humidity Resistance | <3% ASF change at 93% humidity (IEC 68-2-3) |
| Agency Approval | Not required |
Therefore, the 330180-50-00 sensor provides consistent output accuracy even under wide temperature fluctuations, ensuring stable system performance.
System Integration Applications
The Bently Nevada 330180-50-00 Proximitor Sensor integrates seamlessly into 3500 Series machinery protection systems. It is commonly used for:
- Turbine and compressor shaft vibration measurement
- Displacement and thrust position monitoring
- Power generation and petrochemical machinery protection
- Predictive maintenance and condition-based monitoring
For instance, the sensor’s high immunity to RFI and EMI interference allows installation near high-voltage equipment without performance degradation.
Details
| Weight | 0.246 kg |
|---|
