Product Overview

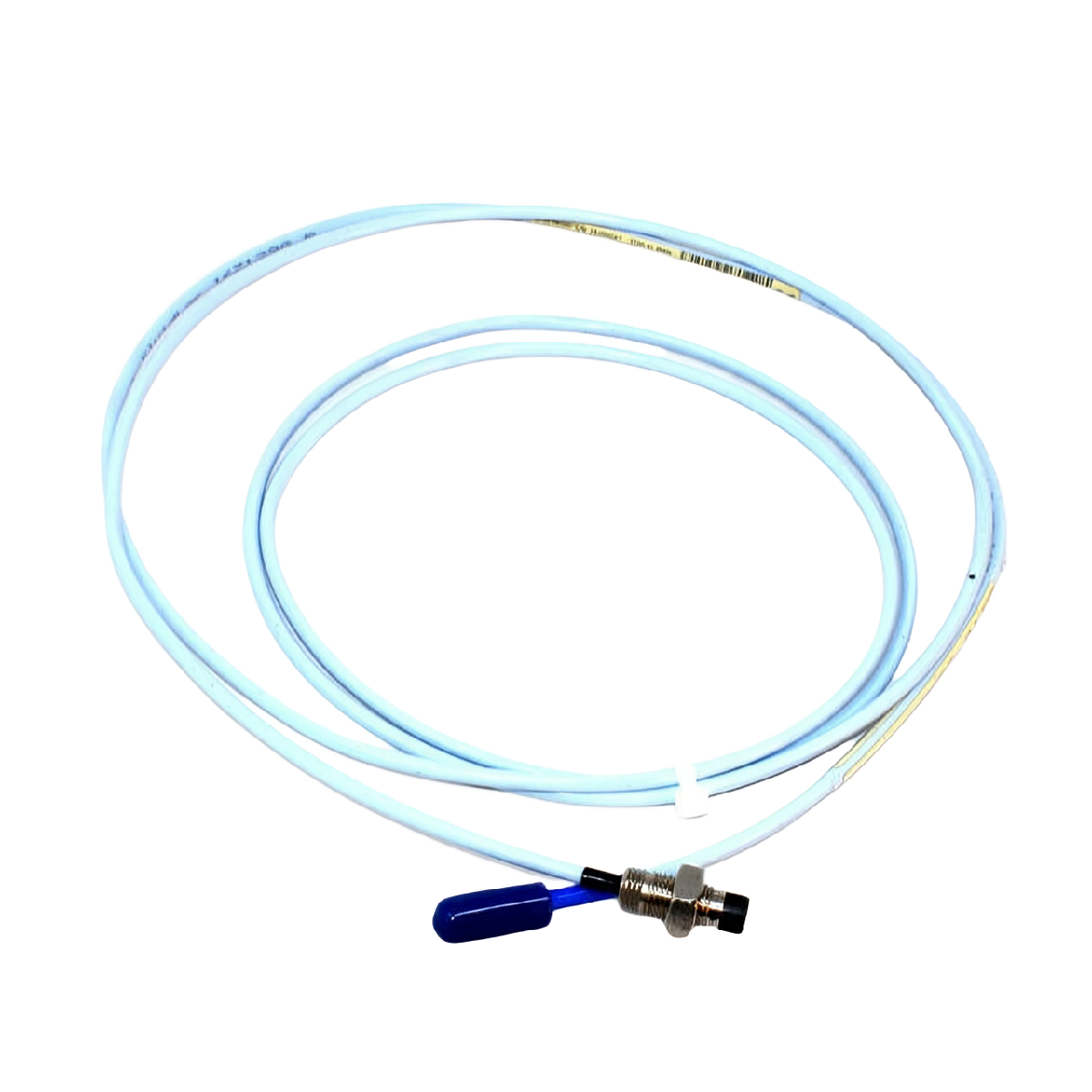

The Bently Nevada 330171-12-41-10-02-05 3300 5mm Proximity Probe is designed to offer enhanced durability and precision for industrial vibration monitoring. Featuring the patented TipLoc molding method, this probe ensures a stronger bond between the probe tip and body, offering a longer lifespan. The Fluidloc cable options further improve system integrity by preventing the leakage of oils and other liquids.
Specifications
Electrical Specifications:
- Proximitor Sensor Input: Compatible with one noncontacting 3300 5mm Proximity Probe and XL Extension Cable.
- Power Requirement: -17.5 Vdc to -26 Vdc with a maximum consumption of 12 mA. Operating above -23.5 Vdc may reduce the linear range.
- Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
- Output Resistance: 50 Ω.
- Probe DC Resistance (at different probe lengths):
| Probe Length (m) | Resistance (Ω) |
|---|---|
| 0.5 | 7.45 ± 0.50 |
| 1.0 | 7.59 ± 0.50 |
| 1.5 | 7.73 ± 0.50 |
| 2.0 | 7.88 ± 0.50 |
| 5.0 | 8.73 ± 0.70 |
| 9.0 | 9.87 ± 0.90 |
- Electrical Certification: Complies with the European CE mark.
Mechanical Specifications:
- Probe Tip Material: Polyphenylene sulfide (PPS).
- Probe Case Material: AISI 303 or 304 stainless steel (SST).
- Probe Cable: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated cable, available in lengths of 0.5, 1, 2, 5, or 9 meters (1.6, 3.3, 16.4, or 29.5 feet).
- Extension Cable Material: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated.
- Connector Material: Gold-plated brass or gold-plated beryllium copper.
- Weight: 323 g (11.39 oz).
Environmental Limits:
- Probe Temperature Range: Operating temperature from -35°C to +177°C (-31°F to +351°F). Avoid exposing the probe to temperatures below –34°C (-30°F) to prevent premature failure of the pressure seal.
Ordering Information:
- Product Number: 330171-AA-BB-CC-DD-EE
- A: Unthreaded Length Option: 12 = 1.2 inches
- B: Overall Case Length Option: 41 = 4.1 inches
- C: Total Length Option: 10 = 1.0 meter (3.3 feet)
- D: Connector Option: 02 = Miniature coaxial ClickLoc connector, standard cable
- E: Agency Approval Option: 05 = Multiple Approvals
FAQ
Q: What is the operating temperature range for the Bently Nevada 3300 5mm Proximity Probe?
A: The 3300 5mm Proximity Probe operates in temperatures ranging from -35°C to +177°C (-31°F to +351°F). Ensure it is not exposed to temperatures below –34°C to avoid premature failure.
Q: What type of cable is compatible with the 3300 5mm Proximity Probe?
A: The 3300 5mm Proximity Probe uses 75 Ω triaxial, fluoroethylene propylene (FEP) insulated cables, available in various lengths: 0.5, 1, 2, 5, or 9 meters.
Q: How soon will my order be shipped?
A: We typically ship orders within 3-14 days, depending on the order size and stock availability.
Q: Is the Bently Nevada 3300 5mm Proximity Probe a new, original product?
A: Yes, the 3300 5mm Proximity Probe is 100% new, original, and factory sealed.
Q: What happens if the product is defective?
A: We offer a 30-day return policy for any defective products. Please contact us for further assistance.
Details
| Weight | 0.323 kg |
|---|
