Product Overview

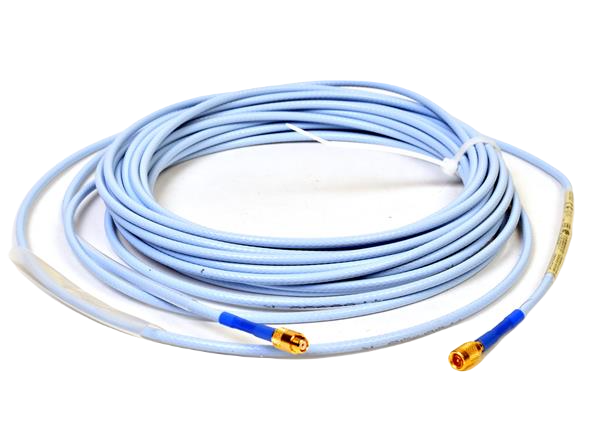

The Bently Nevada 330130-085-03-05 is a standard extension cable designed for 3300 XL Proximitor Sensor systems. Moreover, it provides reliable, high-accuracy signal transmission between probes and sensors.
In addition, the cable ensures mechanical and electrical compatibility with 8 mm and 5 mm 3300 XL components when bend radius requirements are maintained.
Key Functional Highlights
This extension cable ensures durable operation in extreme environments. For instance, the armored cable option with connector protector enhances mechanical reliability.
Benefits include:
- 75Ω triaxial FEP-insulated standard cable or PFA-insulated extended temperature cable
- Compatible with 3300 XL 8 mm probes and extension cables
- Armored cable option for protection in demanding installations
- Gold-plated brass or beryllium copper connectors for stable signal transmission
- Flexible lengths: 1 m (probe only), 5 m, 9 m (system length including cable)
Therefore, it supports precise condition monitoring in industrial machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Material | Standard: 75Ω FEP; Extended: 75Ω PFA |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass or beryllium copper |
| Maximum Connector Torque | 0.565 N•m (5 in•lbf) |
| System Length Options | 1 m (probe), 5 m, 9 m (including cable) |
| Operating Temp | Standard: -52°C to +177°C; Extended: -52°C to +260°C |
| Storage Temp | Standard: -52°C to +177°C; Extended: -52°C to +260°C |
| Weight | Total system: 0.7 kg; Probe: 323 g/m; Cable: 34 g/m |
| Agency Approval | CSA, ATEX, IECEx |
Typical Applications
The 330130-085-03-05 extension cable is ideal for connecting 3300 XL Proximitor probes in industrial monitoring systems. Moreover, it supports extreme temperature environments while maintaining signal integrity.
Applications include:
- Vibration monitoring in turbines, compressors, and pumps
- Integration with 3300 XL 8 mm probes and Proximitor sensors
- Industrial condition monitoring requiring extended temperature operation
- Precise shaft position measurement and vibration diagnostics
Details
| Weight | 0.034 kg |
|---|
