Product Overview

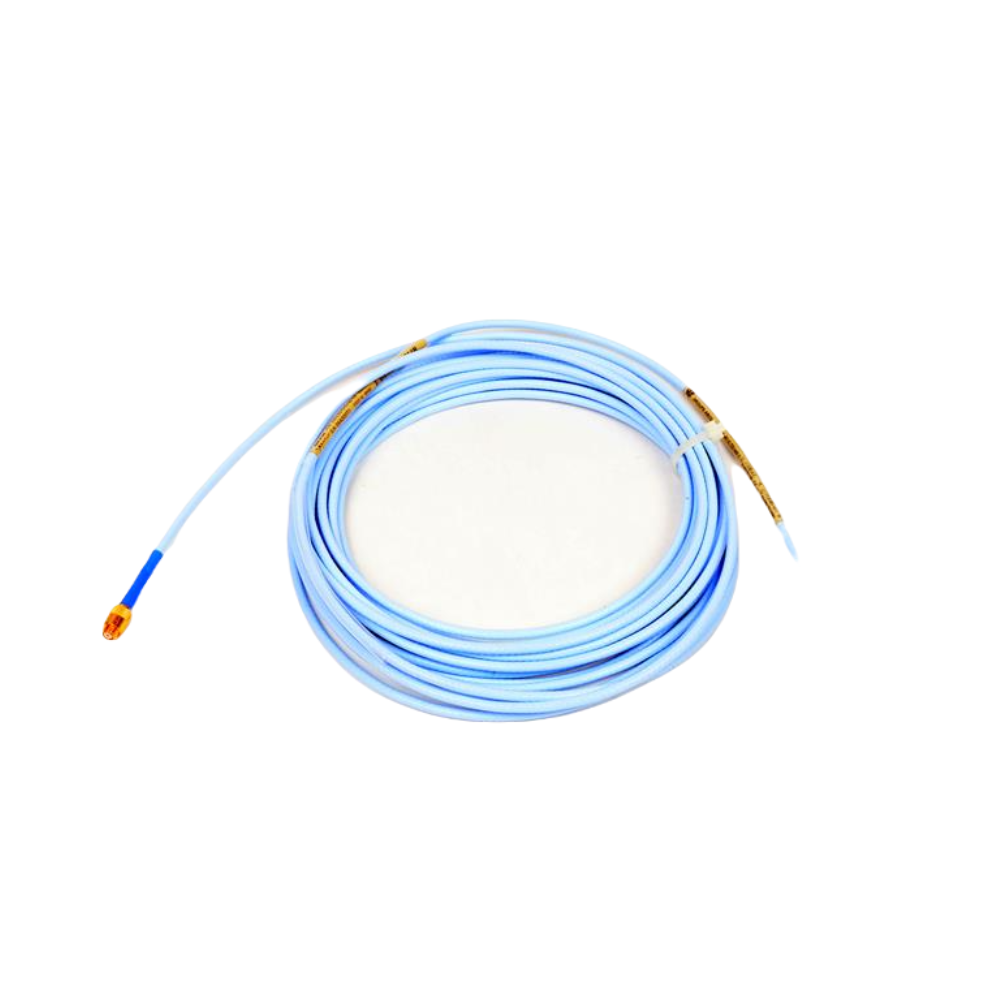

The Bently Nevada 330130-070-00-05 is a 7.0-meter (22.9 ft) 3300 XL Standard Extension Cable, engineered for precision and reliability in demanding industrial environments. Designed for seamless integration with Bently Nevada’s 3300 XL 8 mm Proximity Transducer System, this cable maintains signal integrity across long distances and harsh temperatures.
Its triaxial 75Ω design minimizes noise interference and ensures consistent measurement accuracy. Whether you are maintaining rotating machinery or monitoring vibration in critical assets, this extension cable delivers trusted performance that meets rigorous industrial standards.
Key Features & Functional Highlights
- Optimized Signal Transmission:
Ensures low-noise, high-fidelity communication between probe and Proximitor® sensor. - High-Temperature Resistance:
Operates effectively in environments up to +177°C (standard) or +260°C (extended). - Rugged Construction:
Uses FEP or PFA insulation to resist abrasion and chemicals. - Precision Engineering:
Features gold-plated brass or beryllium copper connectors for superior conductivity and corrosion resistance. - Flexible Installation:
Maintains performance with a minimum bend radius of 25.4 mm (1 inch), suitable for tight industrial setups.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | 75Ω triaxial, FEP or PFA insulated |
| Cable Length | 7.0 m (22.9 ft) |
| Temperature Range (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Temperature Range (Extended) | -52°C to +260°C (-62°F to +500°F) |
| Connector Material | Gold-plated brass / beryllium copper |
| Connector Torque | 0.565 N•m (5 in•lbf) |
| Capacitance | 69.9 pF/m (21.3 pF/ft), typical |
| Bend Radius | 25.4 mm (1.0 inch) |
| Weight | 34 g/m (0.4 oz/ft) |
| Approvals | CSA, ATEX, IECEx |
| Model Number | 330130-070-00-05 |
This model supports system lengths of 5 or 9 meters, allowing flexible configuration for both XL and non-XL Bently Nevada 5 mm or 8 mm probes.
System Integration
The 330130-070-00-05 extension cable plays a vital role in vibration monitoring and machinery protection systems. It is widely used in:
- Turbomachinery and rotating equipment diagnostics
- Power generation plants
- Oil and gas compressors and pumps
- Industrial automation and predictive maintenance systems
By maintaining signal clarity and reducing electromagnetic interference, this cable ensures accurate data for system health monitoring and reliability-based maintenance programs.
FAQ
Q1: Is the Bently Nevada 330130-070-00-05 compatible with older 3300 proximity probes?
Yes, it supports both XL and non-XL 5 mm and 8 mm systems, ensuring backward compatibility.
Q2: What is the delivery time and availability?
This product is brand-new, original, and in stock. Typical lead time is 3 days to 2 weeks, depending on order size.
Q3: How is the product shipped and what is the return policy?
Orders are shipped via DHL, FedEx, or UPS. We offer 30-day return support for any verified quality issues.
Details
| Weight | 0.034 kg |
|---|
