Overview

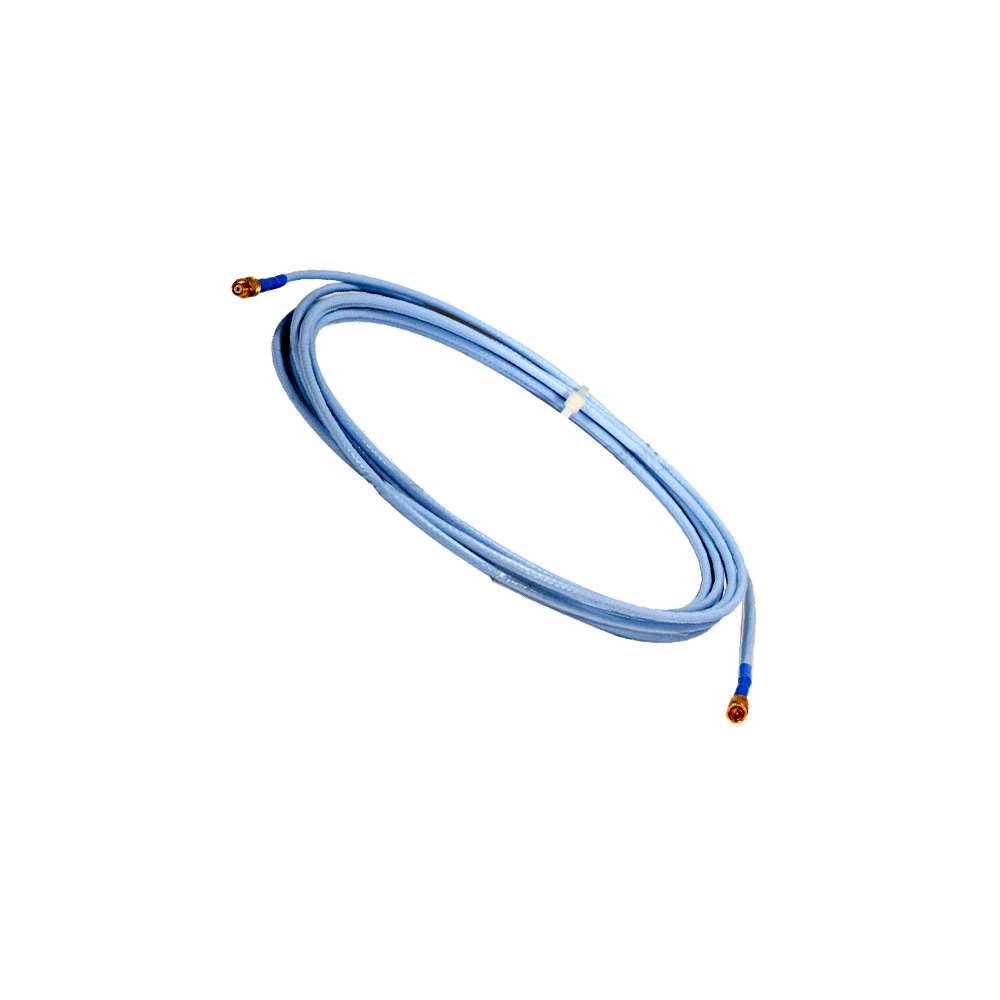

The Bently Nevada 330130-040-01-00 3300 XL Standard Extension Cable is designed to extend connections in 3300 XL vibration and machinery protection systems. It ensures precise signal transmission from transducers to monitoring equipment, maintaining high data integrity even in harsh industrial environments.
Key Features
- High-Quality Cable Construction: 75Ω triaxial cables with FEP (standard) or PFA (extended temperature) insulation for reliable signal transmission.
- Durable Connectors: Gold-plated brass or beryllium copper connectors with torque specification up to 0.565 N•m (5 in•lbf) for secure connections.
- Extreme Temperature Tolerance: Operates in temperatures from -52°C to +177°C (standard) and up to +260°C (extended).
- Flexible Design: Minimum bend radius of 25.4 mm (1.0 in) ensures easy installation in tight spaces.
- Armored Protection: Armored cable option provides additional mechanical protection for demanding applications.
Technical Specifications
| Specification | Details |
|---|---|
| Cable Type | 75Ω triaxial |
| Standard Insulation | FEP |
| Extended Temp Insulation | PFA |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass or beryllium copper |
| Maximum Connector Torque | 0.565 N•m (5 in•lbf) |
| Standard Cable Temperature | -52°C to +177°C (-62°F to +350°F) |
| Extended Cable Temperature | -52°C to +260°C (-62°F to +500°F) |
| Armored Cable Weight | 103 g/m (1.5 oz/ft) |
| Cable Length | 4.0 meters (11.5 ft) |
| Part Number | 330130-040-01-00 |
Applications
- Extending sensor and transducer connections in 3300 XL machinery protection systems
- Vibration monitoring and machinery health diagnostics
- Industrial environments requiring reliable, high-temperature signal cabling
Ordering Information
- Part Number: 330130-040-01-00
- Length: 4.0 meters (11.5 ft)
- Connector Protector: Armored cable (01)
- Agency Approval: Not required (00)
Details
| Weight | 0.103 kg |
|---|
