Product Overview

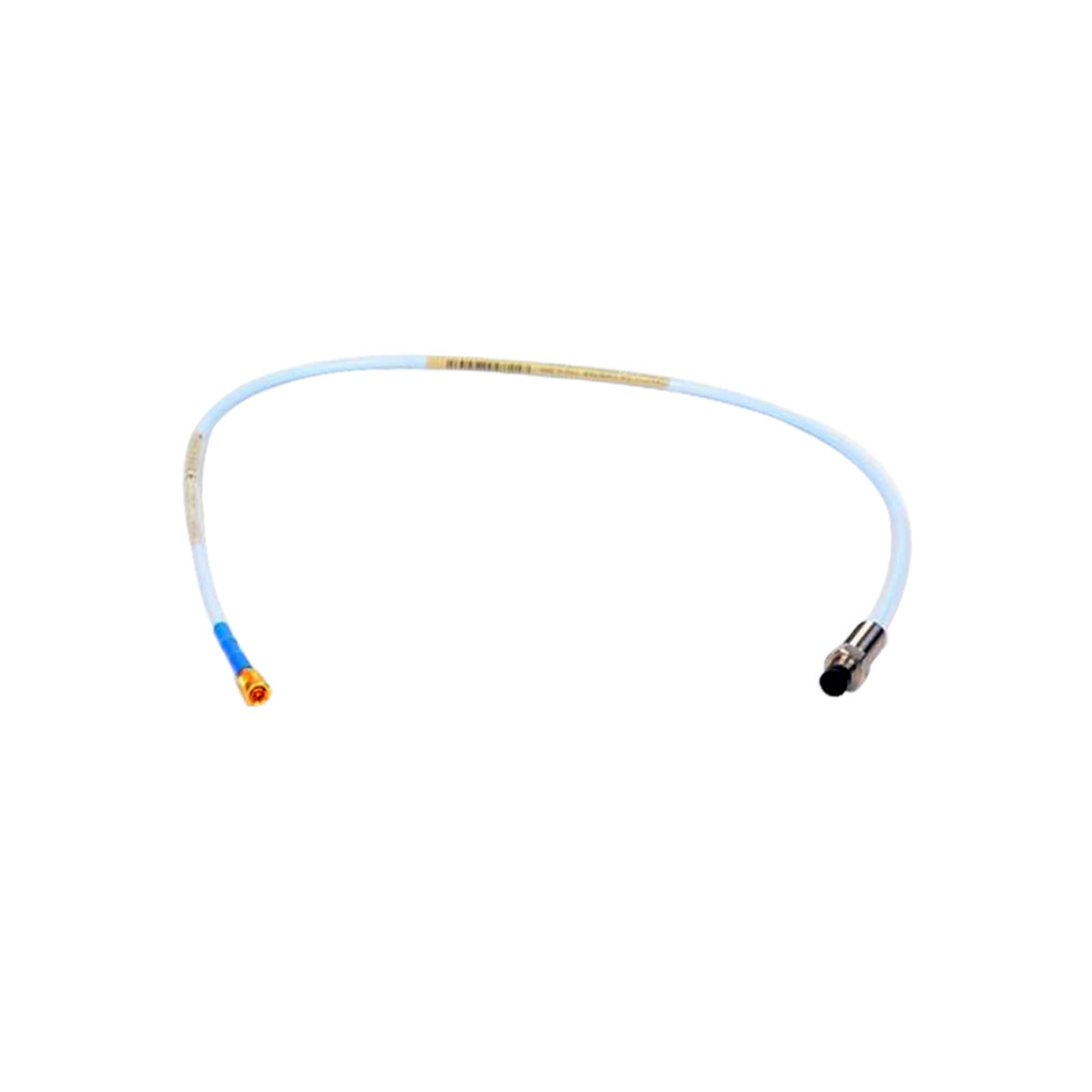

The Bently Nevada 330105-02-12-90-02-00 3300 XL Reverse Mount Probe is designed for precise vibration and displacement monitoring in industrial machinery. Moreover, its patented TipLoc molding method ensures a stronger bond between the probe tip and body.

In addition, the CableLoc design provides a maximum pull strength of 330 N (75 lbf), ensuring secure attachment of both probe tip and cable. Therefore, the probe maintains reliability even in high-vibration environments.

Furthermore, optional FluidLoc cables prevent fluid leaks from probe or extension cables, enhancing operational safety in oil and lubricant-rich environments. For instance, this feature is critical in turbine and pump monitoring applications.

Functional Highlights

This reverse mount probe offers exceptional durability, precision, and installation flexibility. Moreover, its stainless steel case resists corrosion and mechanical damage.

Key Benefits Include:

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel
• Cable Options: 75 Ω triaxial FEP or PFA insulation, lengths 0.5–9 meters
• Tensile Strength: 330 N (probe to lead), 270 N (lead to extension)
• Connector Material: Gold-plated brass or beryllium copper
• Weight: 323 g (11.4 oz)

In addition, the reverse mount configuration supports tight installation spaces without sacrificing measurement accuracy.

Technical Data

Moreover, the Viton® O-ring provides a pressure seal between the probe tip and case, though the probe is not pressure-tested before shipment.

Typical Applications

This probe is ideal for industrial machinery monitoring, especially turbines, compressors, and pumps. Therefore, it is compatible with standard 3300 XL monitoring systems.

In addition, the reverse mount design enables installation in constrained spaces where forward-mount probes may not fit. Moreover, optional FluidLoc cables improve performance in oil-rich or wet environments.
