Product Overview

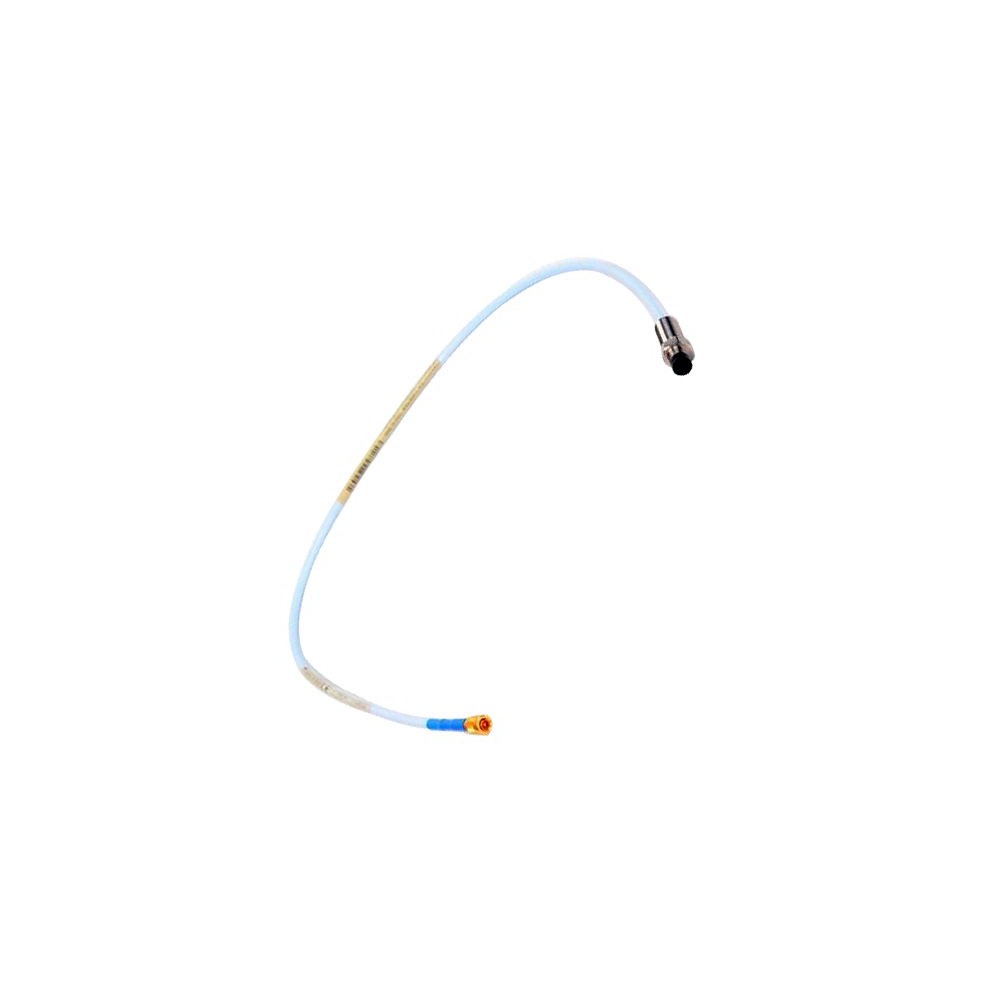

The Bently Nevada 330105-02-12-10-02-05 is a high-precision reverse mount probe from the 3300 XL 8 mm series. It ensures accurate machinery monitoring and reliable performance in demanding industrial environments. Moreover, its design allows installation in tight spaces without compromising measurement accuracy.
Functional Highlights
- Thread Type: 3/8-24 UNF for secure and stable mounting
- Measurement Accuracy: High precision for critical monitoring applications
- Design: Reverse mount for optimal placement in specific configurations
- Durability: Built to withstand harsh industrial conditions and vibrations
- Certifications: CSA, ATEX, and IECEx approved for global compliance
Technical Data
| Feature | Specification |
|---|---|
| Part Number | 330105-02-12-10-02-05 |
| Total Length Option (C) | 1.0 m (3.3 feet) |
| Connector & Cable Option (D) | Miniature ClickLoc coaxial connector, FluidLoc cable |
| Agency Approval Option (E) | CSA, ATEX, IECEx |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Probe Cable | 75Ω triaxial, FEP insulated, available lengths: 0.5–9 m |
| Operating & Storage Temperature | -51°C to +177°C (-60°F to +350°F) |
| Pressure Rating | Seals differential pressure with Viton® O-ring |
Typical Applications
This probe integrates seamlessly with 3300 XL monitoring systems, providing vibration and position feedback for rotating machinery. In addition, it supports turbine, compressor, and generator installations, ensuring reliable machinery protection and extended operational safety.
Details
| Weight | 0.323 kg |
|---|
