Product Overview

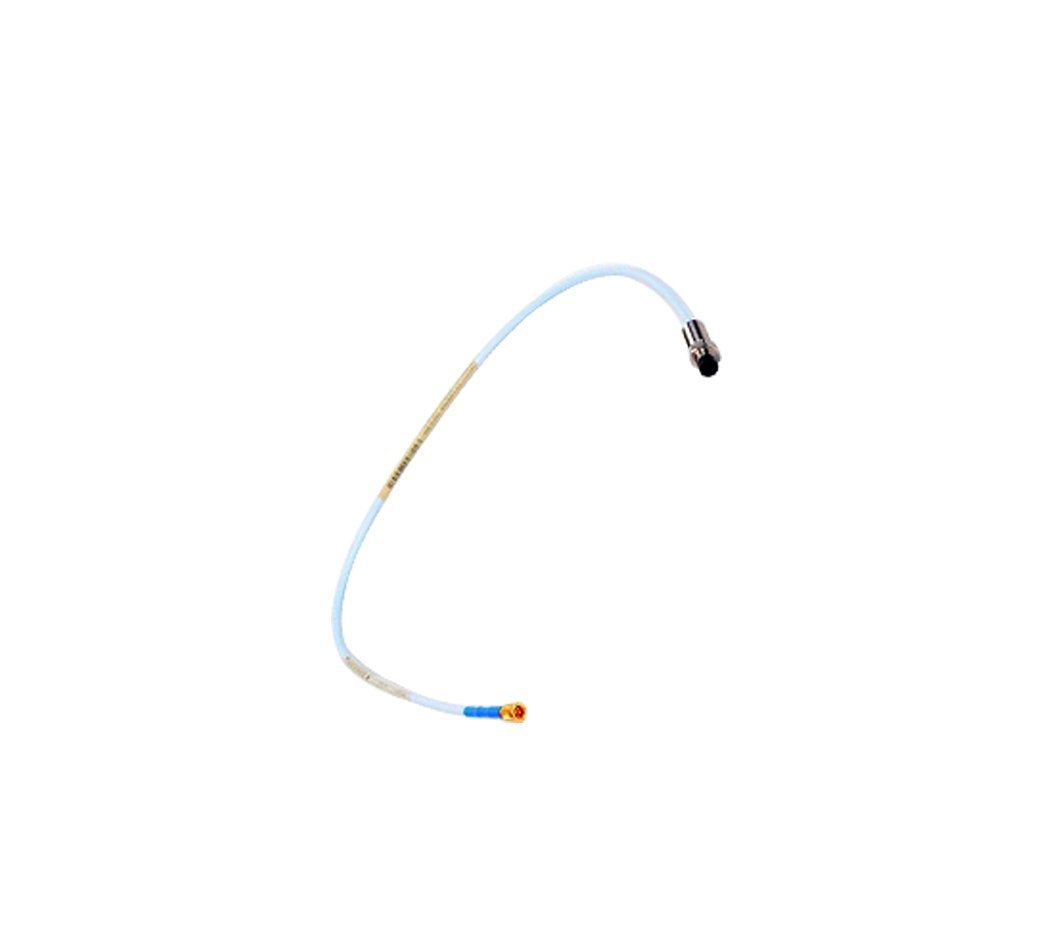

The Bently Nevada 330105-02-12-05-12-05 3300 XL 8mm Reverse Mount Probe is a robust, high-performance probe designed for industrial systems. This model provides precise diagnostics under a wide range of conditions. The probe includes advanced features such as a Viton® O-ring for pressure sealing and exceptional temperature and humidity resistance.

Key Features:

• Thread Engagement:
  • Probe Case Thread: 3/8-24
  • Maximum Thread Engagement Length: 0.563 in
• System Length:
  • Available in 5 meters or 9 meters (including extension cable).
  • 1 meter (probe only).
• Weight:
  • Total System Weight: 0.7 kg (1.5 lb).
• Temperature Range:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F).
  • Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F).
  • Note: Exposing the probe to temperatures below -34°C (-30°F) may cause premature failure of the pressure seal.
  • Standard Operating Temperature: -52°C to +177°C (-62°F to +350°F).
  • Extended Temperature Range:
• Pressure Sealing:
  • The probe includes a Viton® O-ring for differential pressure sealing between the probe tip and case.
  • Probes are not pressure-tested prior to shipment. Contact Bently Nevada’s custom design department for pressure seal testing.
• Humidity Resistance:
  • The probe maintains less than 3% change in Average Scale Factor (ASF) when exposed to 93% humidity for up to 56 days (IEC standard 68-2-3 compliant).

Ordering Information

• Model Number: 330105-02-12-CC-DD-EE

Option Descriptions:

• C: Total Length Option:
  • 05: 0.5 meter (1.6 feet)
  • 5-meter probes are compatible with 5-meter Proximitor sensors only.
• D: Connector and Cable-Type Option:
  • 12: Miniature ClickLoc coaxial connector, FluidLoc cable.
• E: Agency Approval Option:
  • 05: CSA, ATEX, IECEx Approvals.
