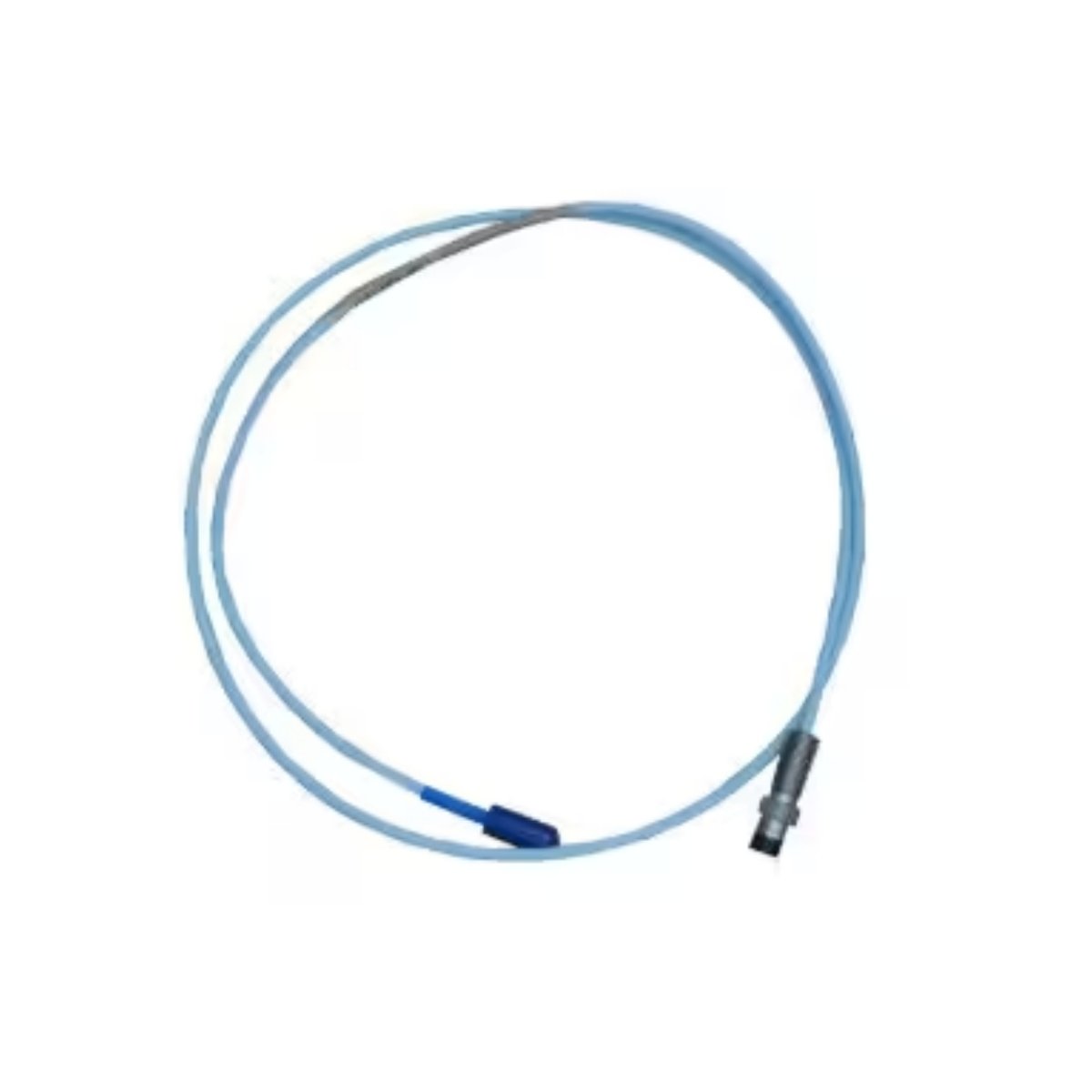

The 330105-02-12-05-02-CN from Bently Nevada provides accurate vibration and shaft displacement measurements in industrial machinery. Part of the 3300 XL series, this 8 mm reverse mount probe offers high reliability for turbines, compressors, pumps, and motors.
Precision Measurement and Output Signal
The delivers a 4–20 mA output with an output sensitivity of 3.94 V/mm (100 mV/mil). It supports precise vibration monitoring and real-time displacement detection in demanding industrial environments.
Mechanical and Installation Features
This probe uses 3/8-24 UNF threads for mounting and features a total length of 0.5 meters (1.6 feet) with a diameter of 7.24 mm (0.285 in). The miniature ClickLoc coaxial connector allows flexible and secure installation in reverse mount configurations.
Electrical and Frequency Performance
Operating at –24 VDC nominal, the 330105-02-12-05-02-CN maintains a frequency range from 0.5 Hz to 10 kHz, providing accurate dynamic measurement for rotating machinery at various speeds.
Temperature and Environmental Range
Engineers can rely on this probe to perform in extreme conditions, operating between –51°C and +177°C, ensuring reliable monitoring in high-temperature and industrial settings.
Technical Specifications
General Information
- Manufacturer: Bently Nevada
- Model: 330105-02-12-05-02-CN
- Series: 3300 XL 8 mm Reverse Mount Probes
Mechanical Properties
| Parameter | Value |
|---|---|
| Thread Size | 3/8-24 UNF |
| Total Length | 0.5 m (1.6 ft) |
| Diameter | 7.24 mm (0.285 in) |
| Weight | 0.323 kg |
| Connector Type | Miniature ClickLoc coaxial |
Electrical & Performance
| Parameter | Value |
|---|---|
| Output Signal | 4–20 mA |
| Output Measurement | 3.94 V/mm (100 mV/mil) |
| Power Supply | –24 VDC |
| Frequency Range | 0.5 Hz – 10 kHz |
Environmental Properties
| Parameter | Value |
|---|---|
| Operating Temperature | –51°C to +177°C |
Origin
- Country of Manufacture: USA
Size & Weight
- Total Length: 0.5 m (1.6 ft)
- Diameter: 7.24 mm (0.285 in)
- Weight: 0.323 kg
Details
| Weight | 0.323 kg |
|---|
