Overview

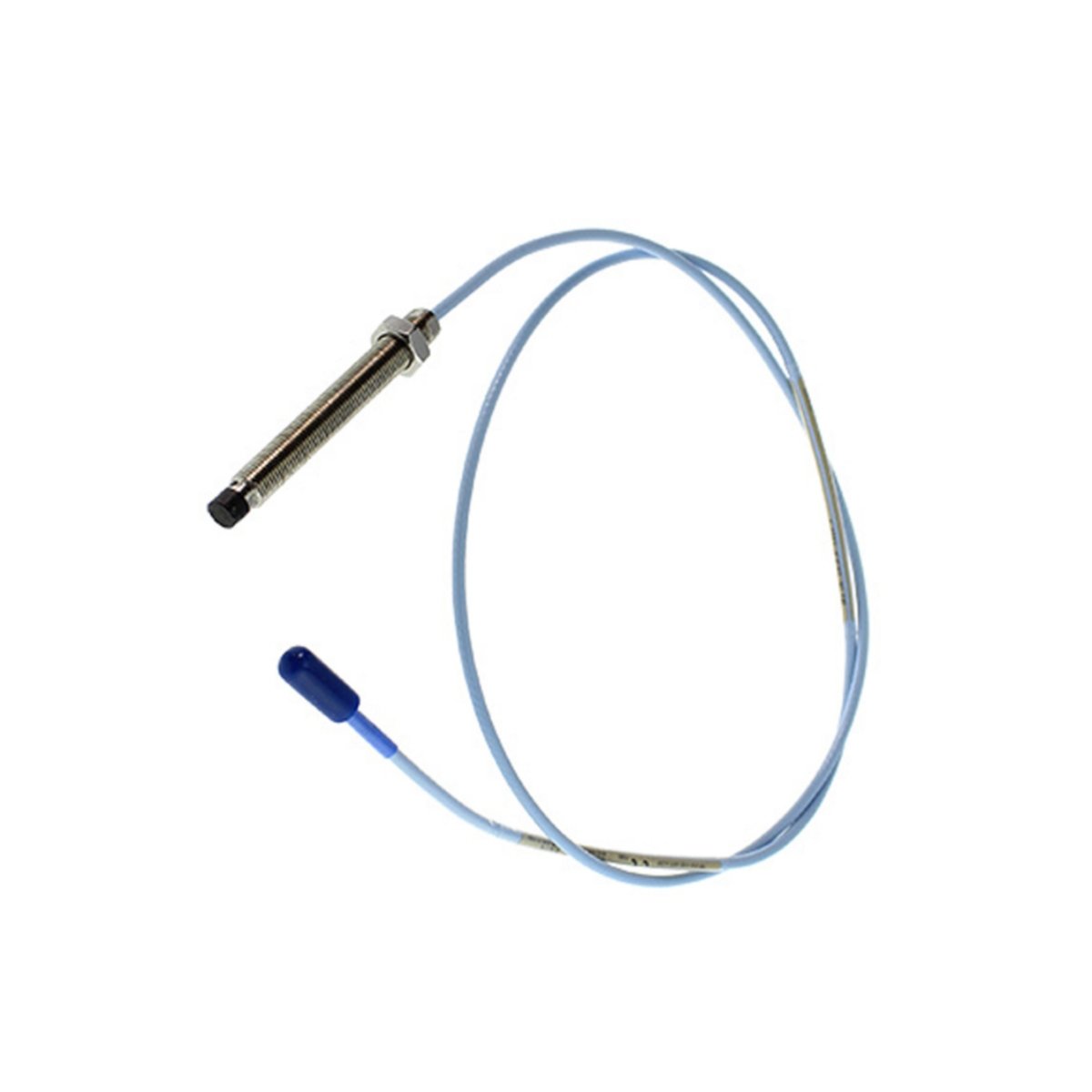

The Bently Nevada 330104-12-20-10-02-00 Proximity Probe delivers high-precision displacement measurements for industrial machinery. Part of the 3300 XL series, it ensures robust performance under harsh conditions. This sensor accurately monitors the distance between the probe tip and conductive surfaces, providing critical data for vibration monitoring and machine diagnostics.
Key Features
- Accurate measurement of distance to conductive surfaces
- Linear range: 60 mils (1.5 mm) for precise readings
- Frequency response: DC to 10 kHz for high-speed monitoring
- Robust stainless steel housing resists corrosion and wear
- ClickLoc connector ensures secure attachment to monitoring systems
- Certified for hazardous locations: CSA, ATEX, IECEx
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 0 to 80 mils (0 to 2 mm) |
| Linear Range | 60 mils (1.5 mm) |
| Sensitivity | 8 mV/mil (200 mV/mm) |
| System Accuracy | ±0.8 mils (±20 μm) |
| Frequency Response | DC to 10 kHz |
| Power Supply | -24 VDC to -30 VDC |
| Operating Temperature | -34°C to +177°C (-30°F to +350°F) |
| Cable Length | 12 ft (3.6 m) standard |
| Probe Thread Size | 3/8-24 UNF |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | Stainless steel |
| Ingress Protection | IP68 |
| Agency Approvals | CSA, ATEX, IECEx |
Suffix and Version Details
- 330104: 3300 XL 8 mm probe, M10 x 1 thread, with armor
- -12: Unthreaded length 120 mm
- -20: Overall case length 200 mm
- -10: Total cable length 1.0 metre (3.3 ft)
- -02: Miniature coaxial ClickLoc connector
- -CN: Agency approval not required
Physical Dimensions & Packaging
| Parameter | Value |
|---|---|
| Probe Length | 3 in (76.2 mm) |
| Cable Length | 12 ft (3.6 m) |
| Net Weight | 300 g (10.6 oz) |
| Shipping Weight | 400 g (14.1 oz) |
| Packaging Dimensions | 200 x 150 x 50 mm (7.87 x 5.91 x 1.97 in) |
| Packaging Type | Anti-static, shock-absorbent materials |
Origin
- Manufactured in the USA
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 200 × 150 × 50 mm |
