Overview

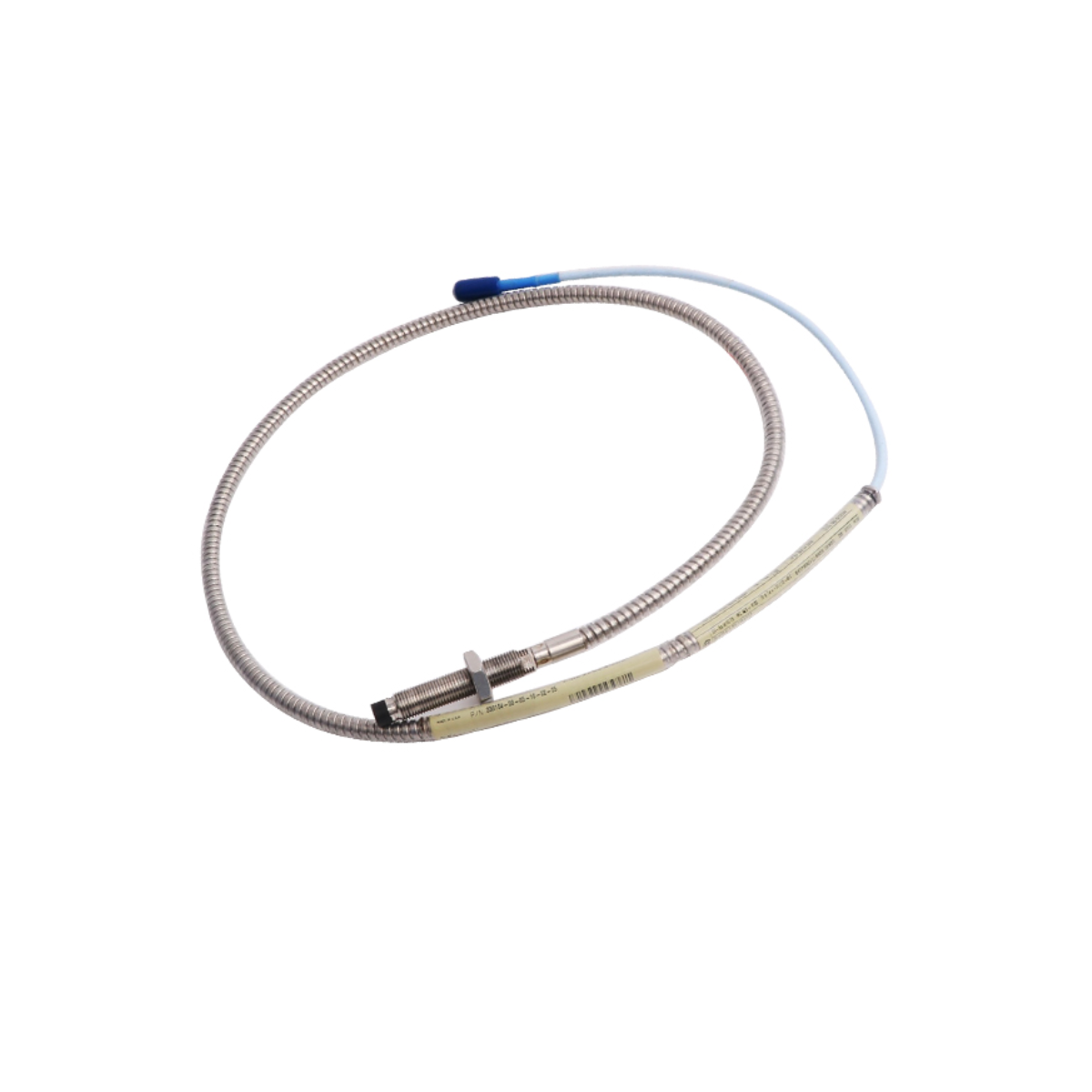

The Bently Nevada 3300 XL 8 mm Probe is a rugged, high-performance proximity probe designed for accurate vibration monitoring in industrial machinery. Its thick encapsulation and robust stainless steel case make it ideal for extreme conditions, including high temperatures and physically demanding environments.
Key Features
- Thicker Encapsulation: Molded PPS plastic probe tip protects the coil for enhanced durability.
- Robust Construction: Stainless steel (AISI 303/304) case resists mechanical damage.
- Flexible Installation: Available with standard or extended temperature cables and optional armor for extra protection.
- High Tensile Strength: Rated for up to 330 N between probe case and probe lead.
- Connector Material: Gold-plated brass or beryllium copper ensures reliable connections.
- Harsh Environment Ready: CSA, ATEX, and IECEx approvals for safety compliance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330104-00-08-90-02-05 |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Standard Cable | 75Ω triaxial, FEP insulated |
| Extended Temp Cable | 75Ω triaxial, PFA insulated |
| Optional Armor | Flexible AISI 302/304 SST with FEP outer jacket |
| Maximum Tensile Strength | 330 N (probe to lead), 270 N (lead to extension) |
| Connector Material | Gold-plated brass / beryllium copper |
| Torque Ratings | Forward-mounted: 33.9 N•m max; Reverse-mounted: 22.6 N•m max |
| System Length Options | 5 m, 9 m; Probe only: 1 m |
| Probe Weight | 323 g/m |
| Armored Cable Weight | 103 g/m |
| Operating Temp (Standard) | -52°C to +177°C |
| Operating Temp (Extended) | Probe tip: -52°C to +218°C; Cable: -51°C to +260°C |
| Humidity | <3% ASF change at 93% RH (IEC 68 2 3, 56 days) |
| Approvals | CSA, ATEX, IECEx |
Applications
- Industrial Machinery Monitoring: Turbines, compressors, and other rotating equipment.
- Vibration Analysis: Predictive maintenance in power generation, oil & gas, and manufacturing.
- Harsh Environments: Suitable for high-abuse and extreme temperature conditions.
Ordering Information
Part Number: 330104-00-08-90-02-05
Configuration Breakdown:
- A (Unthreaded Length): 00 → 0 mm
- B (Case Length): 08 → 80 mm
- C (Total Length): 90 → 9.0 m
- D (Connector/Cable): 02 → Miniature coaxial ClickLoc connector, standard cable
- E (Approvals): 05 → CSA, ATEX, IECEx
Details
| Weight | 0.426 kg |
|---|
