Overview

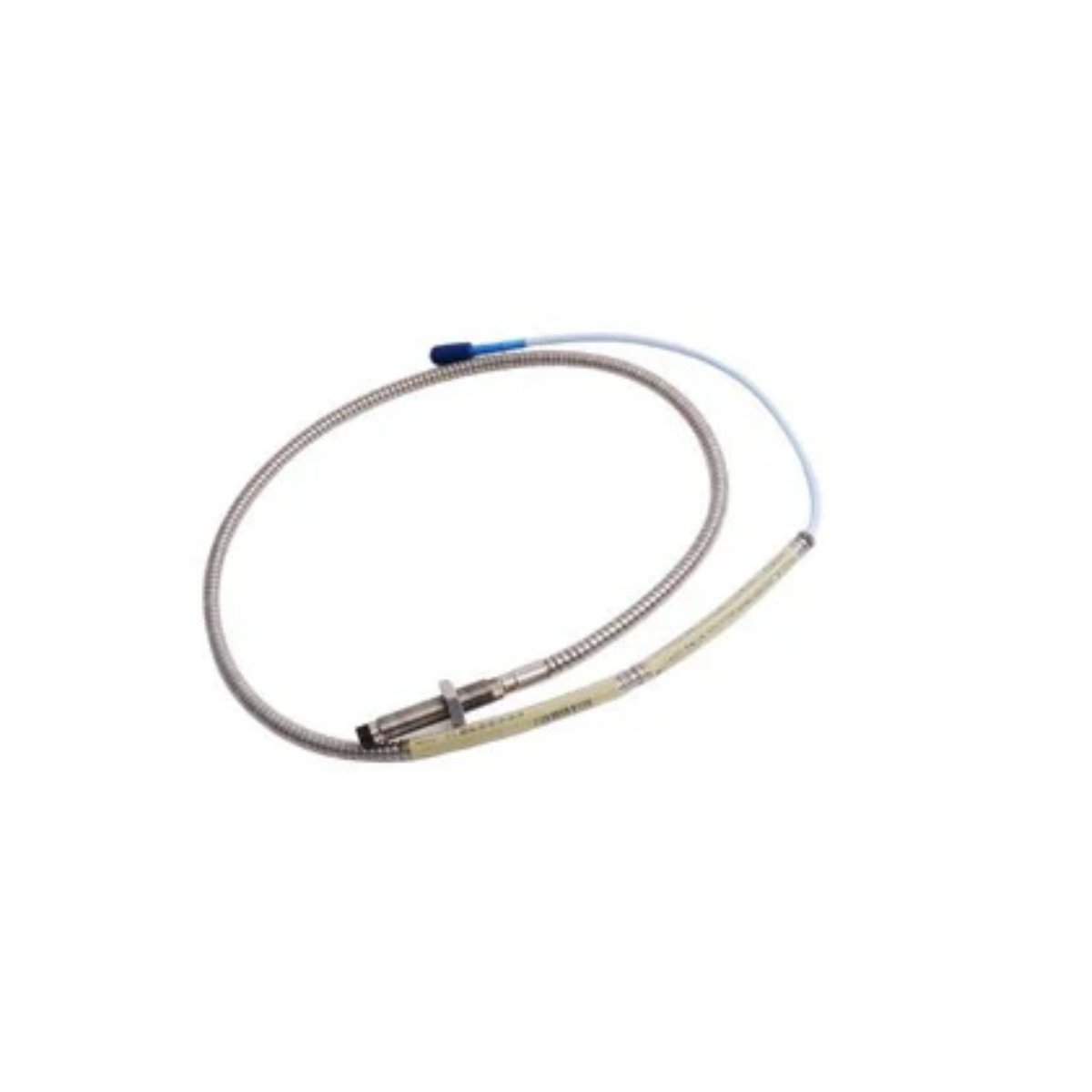

The 330104-00-08-10-01-05 proximity probe from Bently Nevada provides precise shaft displacement measurements in demanding industrial environments. Part of the 3300 XL series, this 8 mm probe combines robust construction with high-frequency response, making it ideal for turbines, compressors, and high-speed rotating machinery.
High-Precision Measurement
The 330104-00-08-10-01-05 delivers reliable readings across a wide temperature range from –35 °C to +120 °C (–31 °F to +248 °F). Its frequency response spans 0 to 10 kHz with up to 305 meters (1000 feet) of field wiring, ensuring accurate data even in extended installations.
Rugged Mechanical Design
Bently Nevada manufactures the probe housing using stainless steel with armored construction. The M10 x 1 threaded tip and 80 mm overall case length provide durability while minimizing mechanical stress during installation. The miniature coaxial ClickLoc connector comes with a protector for secure and easy connection.
Electrical Characteristics
This probe has a nominal DC resistance of 7.59 ± 0.50 Ω and an output resistance of 50 Ω. These parameters ensure stable signal transmission for real-time monitoring systems, supporting consistent diagnostics in critical machinery.
Technical Specifications
General Information
- Manufacturer: Bently Nevada
- Model: 330104-00-08-10-01-05
- Series: 3300 XL 8 mm Proximity Probe
- Approvals: CSA, ATEX, IECEx
Mechanical Properties
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Case Length | 80 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Minimum Unthreaded Length | 0 mm |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Housing | Stainless Steel with armor |
Electrical Properties
| Parameter | Value |
|---|---|
| Nominal Probe DC Resistance | 7.59 ± 0.50 Ω |
| Output Resistance | 50 Ω |
| Frequency Response | 0–10 kHz (±0, –3 dB) up to 305 m wiring |
Environmental
| Parameter | Value |
|---|---|
| Operating Temperature | –35 °C to +120 °C (–31 °F to +248 °F) |
Origin
- Country of Manufacture: USA
Size & Weight
- Probe Cable Length: 1.0 m (3.3 ft)
- Overall Case Length: 80 mm
Details
| Weight | 0.3 kg |
|---|
