High-Precision Vibration Monitoring for Extreme Industrial Environments

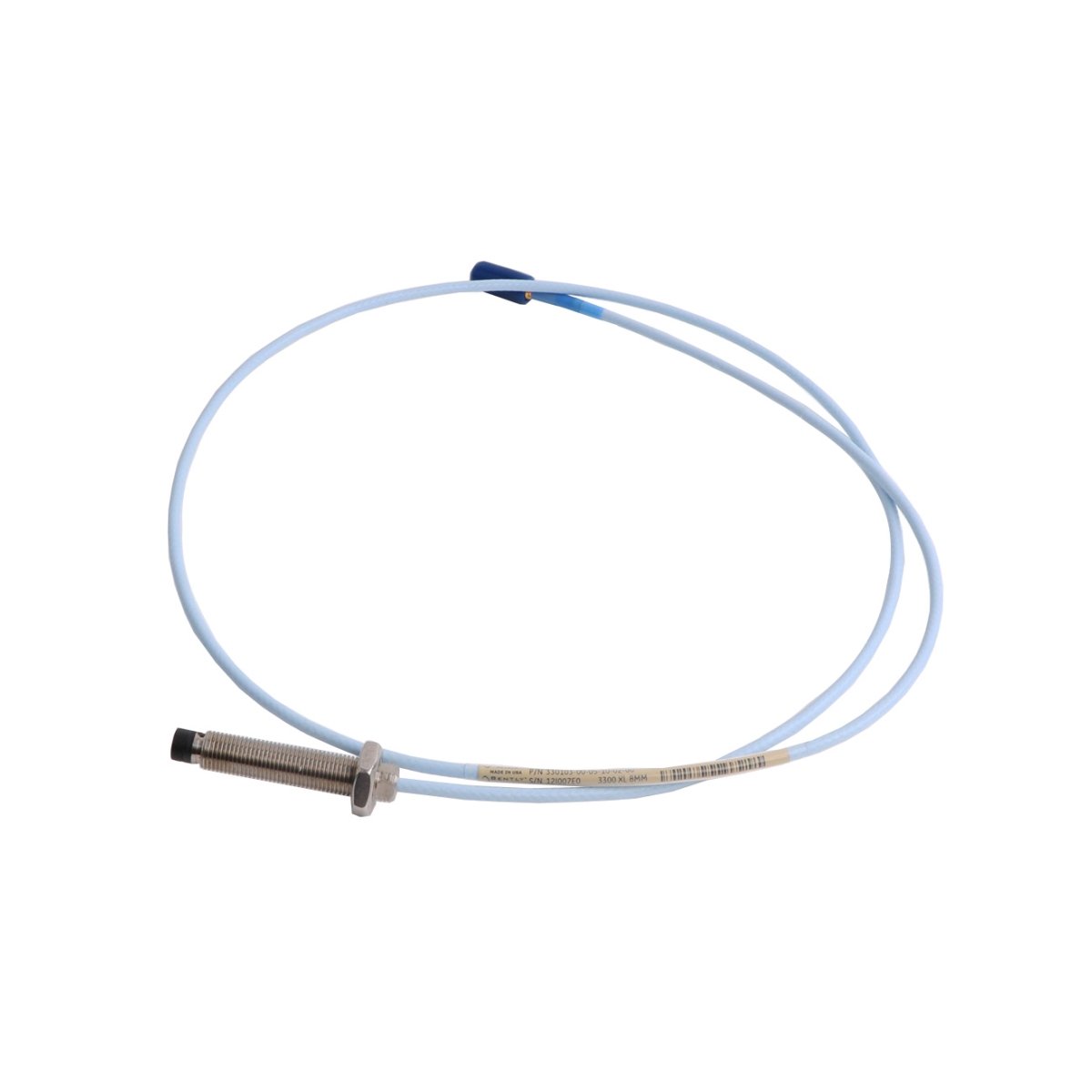

The Bently Nevada 330103-08-13-10-02-05 8mm Proximity Probe provides precise vibration measurement for high-temperature machinery. Its robust construction, extended temperature range, and ATEX/IECEx certification guarantee safe and reliable operation in hazardous areas.
Key Features
- Operates in temperatures ranging from -60°F to +350°F with standard probes.
- Extended range supports probe tip up to +425°F and cable up to +500°F.
- Compact 8mm sensing tip with M10 x 1 thread enables easy installation.
- Lightweight at 0.131 kg, minimizing stress on mounting points.
- Includes 1-meter ClickLoc coaxial cable for flexible industrial connections.
Part Number Breakdown
| Suffix | Description |
|---|---|
| 330103 | 3300 XL 8mm probe base, M10 x 1 thread, no armor |
| 08 | Unthreaded length 80mm |
| 13 | Overall case length 130mm |
| 10 | Cable length 1.0 m (3.3 ft) |
| 02 | Miniature coaxial ClickLoc connector, standard cable |
| 05 | CSA, ATEX, IECEx approved |
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Thread | M10 x 1 metric |
| Sensing Tip Diameter | 8 mm |
| Case Length | 130 mm |
| Cable Length | 1 m (3.3 ft) |
| Connector | ClickLoc coaxial |
| Weight | 0.131 kg |
| Frequency Response | 0–10 kHz |
| Shock Resistance | 100g peak |
| Humidity | 100% non-condensing |
| Temperature Range | Standard: -51°C to +177°C Extended Probe: -51°C to +425°C Extended Cable: -51°C to +500°C |
Product Origin & Physical Details
- Made in: USA
- Weight: 0.131 kg
- Dimensions: 8mm tip diameter, 130mm case length, M10 x 1 thread
Support & Services
- Warranty: 12 months
- Shipping: Fast delivery via FedEx, UPS, DHL
- Calibration: Pre-calibrated for immediate installation
- Authenticity: 100% Bently Nevada genuine product
FAQs
- Q: Is this compatible with all 3300 XL systems?
A: Yes, fully compatible with 3300 XL monitors. - Q: Maximum cable length?
A: Up to 10m using proper extensions. - Q: Can I install in high-temperature steam turbines?
A: Yes, designed for extreme heat environments. - Q: Are custom cable lengths available?
A: Yes, contact us for custom configurations. - Q: Typical replacement interval?
A: Replace every 5–7 years with proper maintenance.
Details
| Weight | 0.131 kg |
|---|
