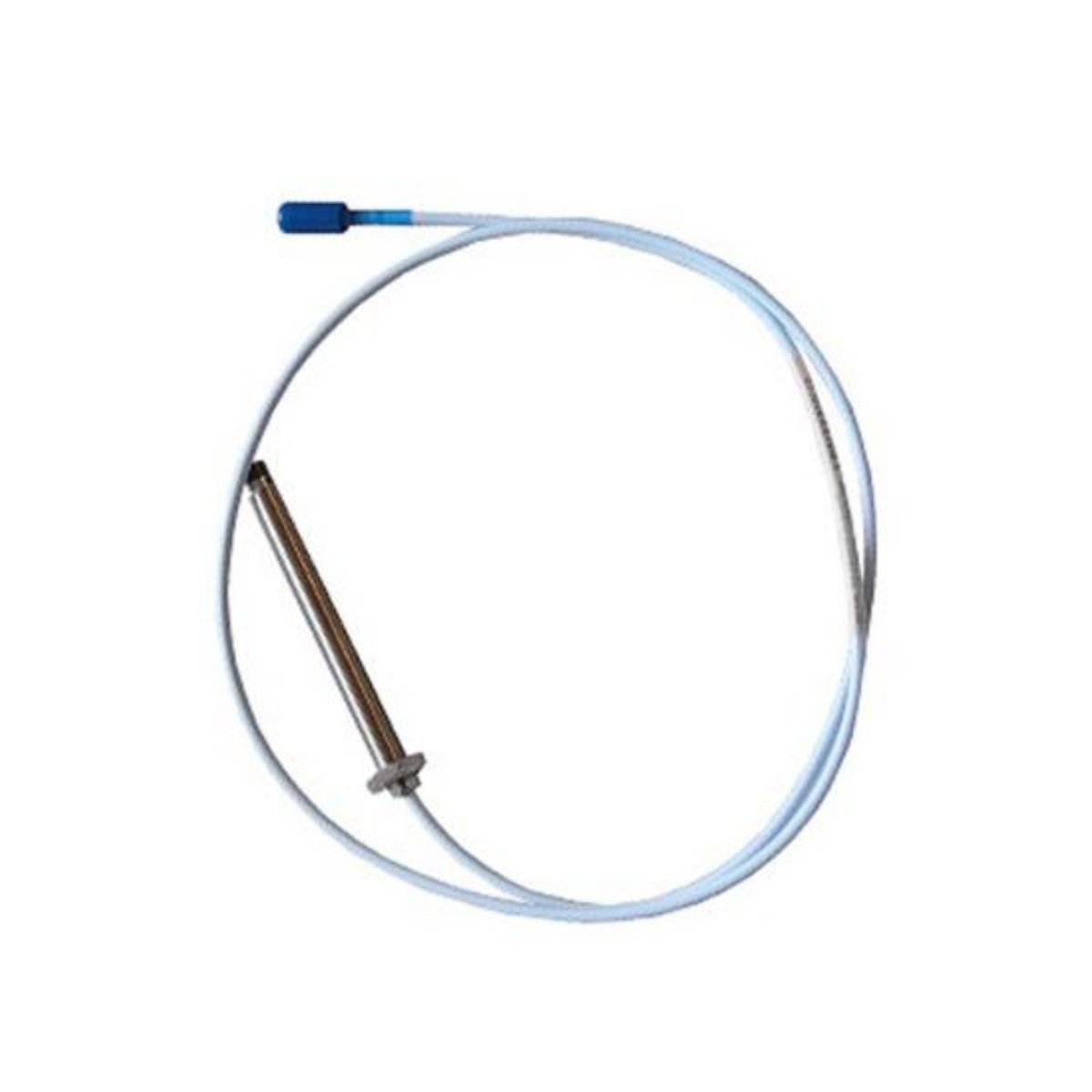

The Bently Nevada 330102-00-17-50-11-CN provides highly accurate vibration monitoring for critical rotating equipment. This 8 mm proximity transducer belongs to the 3300 XL series, ensuring seamless integration with Bently Nevada systems. Its robust design supports high-frequency vibration measurement in demanding industrial environments.
Key Features
- Measures rotor displacement from 0 to 8 mm with exceptional precision
- Operates reliably across a wide temperature range of -40°C to +85°C
- Gold-plated 5-pin connector guarantees stable and low-noise signal transmission
- Polyphenylene sulfide (PPS) probe tip resists wear in harsh environments
- Compatible with Bently Nevada 3300 XL systems for straightforward integration
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330102-00-17-50-11-CN |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Maximum Cable Length | 30 meters (standard configuration) |
| Mounting Type | 4-hole mounting base |
| Mounting Hole Diameter | 6.35 mm (1/4 inch) |
| Mounting Depth | 17.5 mm |
| Mounting Torque | 6.8 Nm (50 lb-in) |
| Connector Type | 5-pin, gold-plated brass or beryllium copper |
| Measurement Range | 0 to 8 mm displacement |
| Response Time | 0.3 ms |
| Vibration Range | Up to 10 kHz, suitable for high-frequency use |
| Power Supply Voltage | 24 VDC |
| Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Agency Approvals | Country-specific certifications |
| Operating Environment | Industrial and hazardous locations |
| Weight | 320 g |
| Origin | USA |
Applications
The 330102-00-17-50-11-CN excels in monitoring high-speed rotating machinery in oil, gas, petrochemical, and municipal plants. Its durable stainless steel housing and PPS probe tip allow reliable performance under extreme temperatures and vibrations. Engineers trust it for predictive maintenance and system protection.
Installation
This transducer installs easily using a 4-hole mounting base and standard mounting hardware. Tightening to 6.8 Nm ensures secure attachment while maintaining accurate measurement.
Details
| Weight | 0.32 kg |
|---|---|
| Dimensions | 3000 × 8 × 8 mm |
