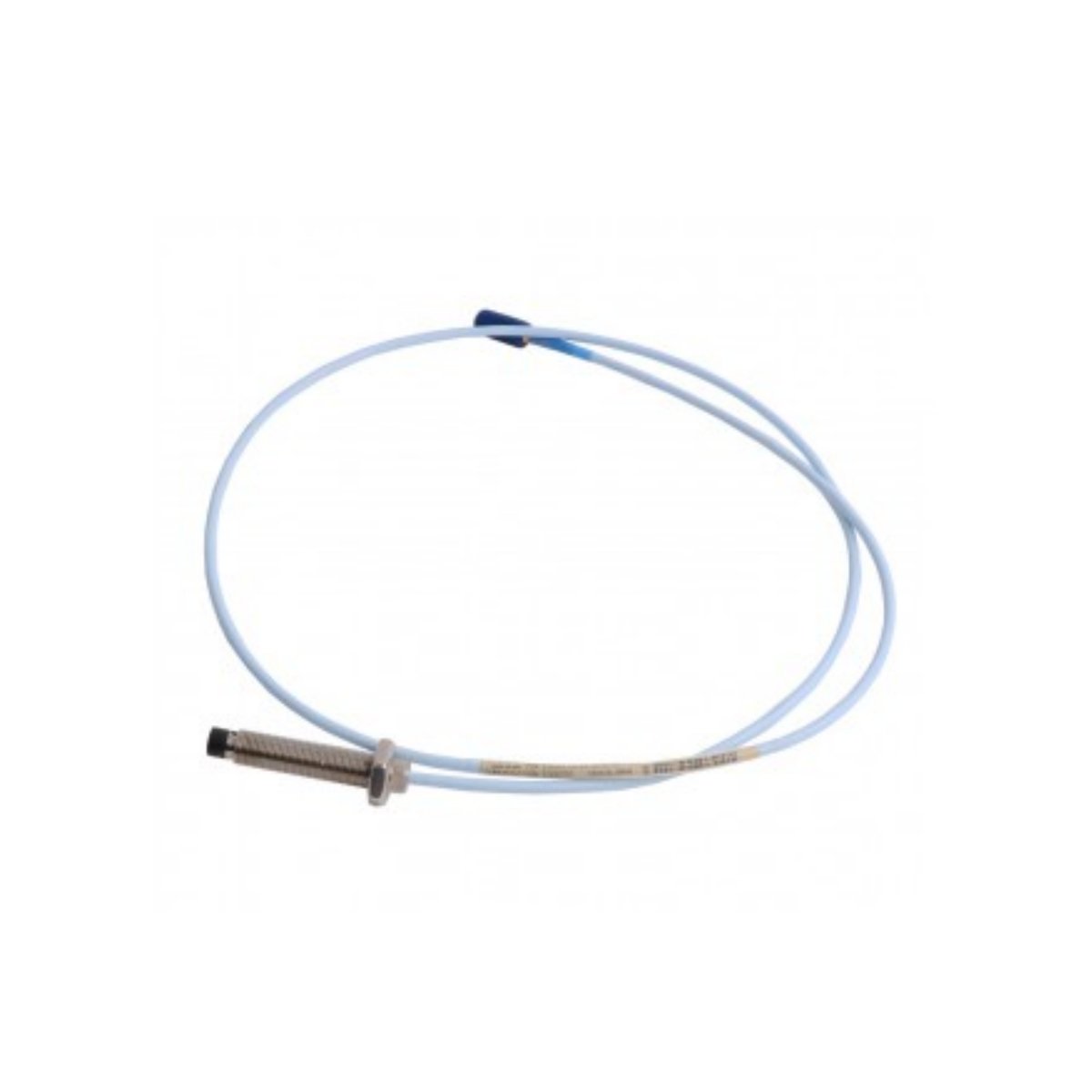

Overview of Bently Nevada 330101-46-65-10-02-CN
The Bently Nevada 330101-46-65-10-02-CN is an 8mm 3300 XL Proximity Probe engineered for precise industrial vibration monitoring. It provides high-resolution measurements, withstands harsh conditions, and ensures reliable operation for critical machinery.
Key Features
- High-precision 8mm Proximitor Probe for industrial applications
- Measurement range: 0.5–2.3mm for accurate shaft monitoring
- Frequency response from 0–12 kHz supports various rotational speeds
- Resolution of 0.01mm ensures fine detection of vibrations
- IP68 waterproof rating protects against submersion and moisture
- EMI protection: 30 V/m at 1 GHz enhances signal integrity
- ClickLoc™ connector with protective design for secure installation
Product Identification & Suffix Guide
| Suffix | Meaning |
|---|---|
| 3300 XL | Probe series |
| 46 | 4.6″ unthreaded sensor length |
| 65 | 6.5″ case length |
| 10 | 1.0m cable length |
| 02 | ClickLoc connector type |
| CN | China approvals |
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330101-46-65-10-02-CN |
| Sensor Diameter | 8mm |
| Case Length | 6.5 inches (165 mm) |
| Unthreaded Length | 4.6 inches (117 mm) |
| Cable Length | 1.0 meter |
| Measurement Range | 0.5–2.3 mm |
| Sensitivity | 8.0 V/mm ±5% |
| Frequency Response | 0–12 kHz |
| Resolution | 0.01 mm |
| EMI Protection | 30 V/m at 1 GHz |
| Waterproof Rating | IP68 submersible |
| Maximum Vibration | 20 g continuous |
| Chemical Resistance | Oils and coolants |
Package & Support
- Includes: Probe with 1m cable, mounting bracket kit, calibration certificate
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL worldwide
Installation Guidelines
- Supports monitoring of slow-speed machinery down to 5 RPM
- Cable extensions up to 10 meters are possible
- Recommended calibration interval: every 24 months
- Ensure secure ClickLoc™ connection to maintain accurate readings
Origin, Dimensions & Weight
- Origin: USA
- Dimensions: 8mm diameter, 6.5″ case length, 4.6″ unthreaded length
- Weight: Approx. 0.17 kg
Details
| Weight | 0.17 kg |
|---|
