Product Overview

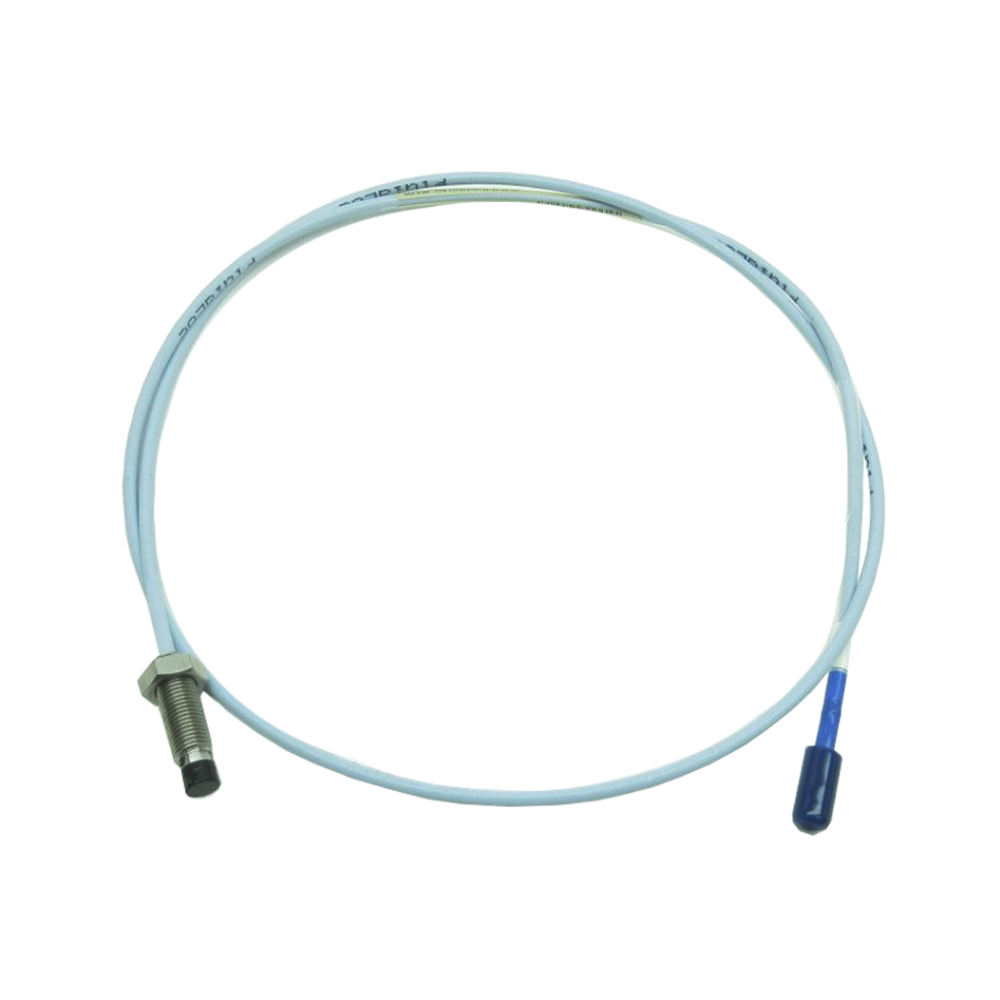

The Bently Nevada 330101-23-38-10-02-00 3300 XL 8 mm Proximity Probe provides precise measurement of vibration and position on rotating machinery. Moreover, it integrates seamlessly with 3300 XL monitoring systems, ensuring reliable condition monitoring and predictive maintenance. Its compact 8 mm diameter allows for installation in high-density or constrained spaces.
Key Functional Highlights
- High Accuracy: Maintains output within 2 mV per volt of input voltage change.
- Wide Temperature Range: Operates from -52°C to +177°C (-62°F to +350°F) for standard probes.
- Extended Cable Options: Supports triaxial FEP or PFA cables up to 9 meters for harsh environments.
- Durable Design: Lightweight 323 g/m probe resists mechanical stress and vibration.
- Threaded Installation: 3/8-24 UNF threads with maximum engagement of 0.563 inches allow secure mounting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330101-23-38-10-02-00 |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max; -23 Vdc to -26 Vdc with barriers |
| Sensitivity | <2 mV per volt input change |
| Output Resistance | 50 Ω |
| Probe Cable Options | Standard: FEP-insulated 75 Ω Extended: PFA-insulated 75 Ω |
| Cable Lengths | 0.5–9 meters |
| Probe Length | 1 meter (Probe Only) |
| System Length | 5 or 9 meters including extension cable |
| Weight | 323 g/m (11.4 oz) |
| Thread Engagement | 3/8-24 UNF, max 0.563 in |
| Operating Temperature | Standard: -52°C to +177°C Extended: -52°C to +218°C (probe tip), -51°C to +260°C (cable/connector) |
Applications & System Integration
- Machinery Protection: Measures real-time vibration and position on critical rotating equipment.
- Condition Monitoring: Enables predictive maintenance to reduce unexpected downtime.
- High-Temperature Environments: Extended temperature cables provide reliable performance in harsh conditions.
- Compact Spaces: 8 mm diameter allows installation where space is constrained without sacrificing accuracy.
Details
| Weight | 0.323 kg |
|---|
