Overview of Bently Nevada 330101-12-30-10-02-CN

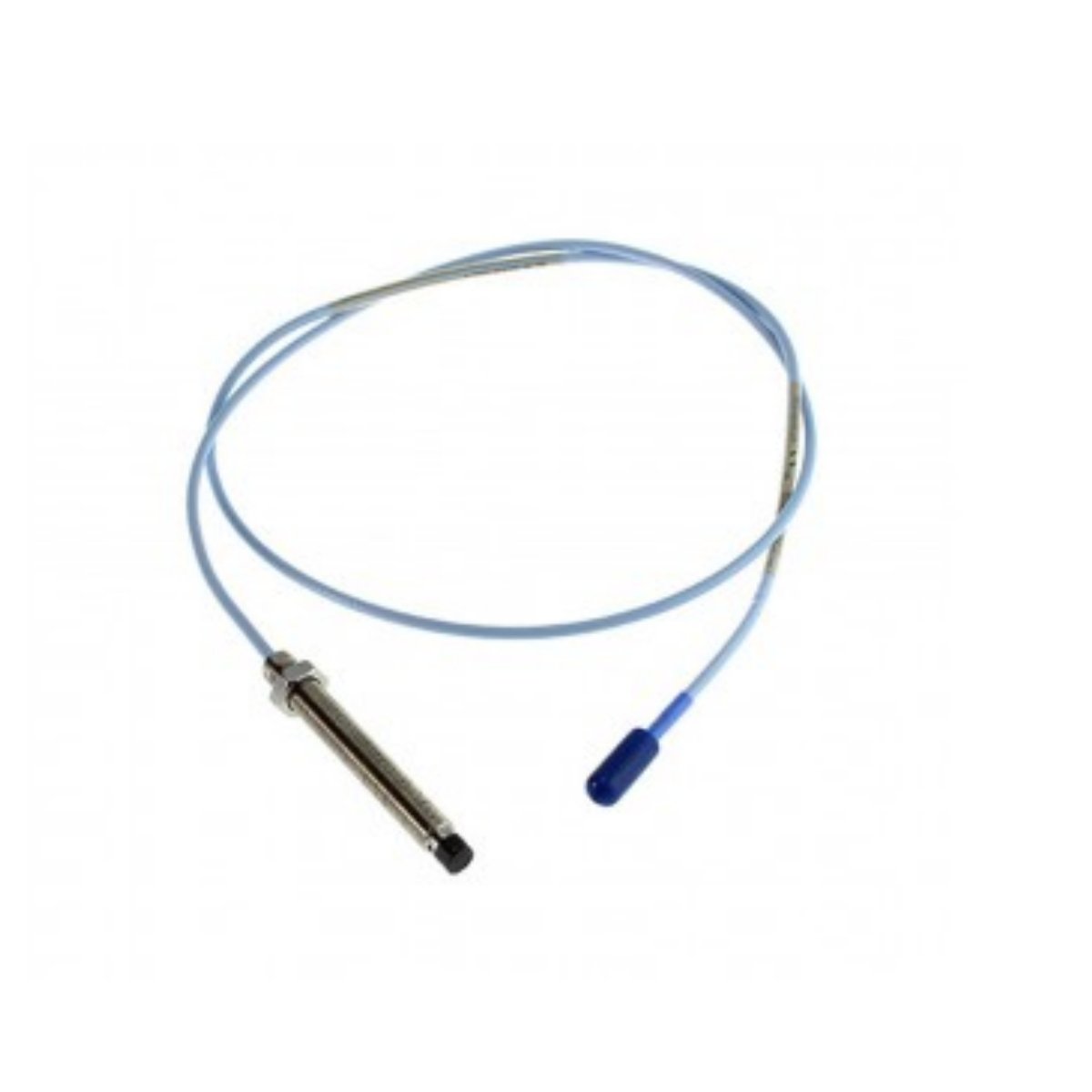

The Bently Nevada 330101-12-30-10-02-CN is a compact 8mm 3300 XL Proximity Probe designed for precision vibration monitoring in industrial machinery. It offers high-resolution measurement and reliable performance even under extreme temperature conditions.
Key Features
- Compact 8mm probe with short 1.2″ unthreaded section for tight installations
- Chemical-resistant PPS sensing tip protects against oils and coolants
- Wide temperature operation from -51°C to +177°C
- ClickLoc™ coaxial connector ensures secure, easy installation
- Linearity ±1% across the full measurement range
- IP67-rated for submersion up to 1 meter
- Compatible with all Bently Nevada 3300 XL monitoring systems
Product Identification & Suffix Guide
| Suffix | Meaning |
|---|---|
| 330101 | Base 8mm Proximity Probe series |
| 12 | 1.2″ unthreaded section |
| 30 | 3.0″ total case length |
| 10 | 1.0m cable |
| 02 | ClickLoc™ connector |
| CN | China agency approvals |
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330101-12-30-10-02-CN |
| Sensor Diameter | 8 mm |
| Unthreaded Section | 1.2 inches (30.5 mm) |
| Case Length | 3.0 inches (76.2 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Thread | 3/8-24 UNF (no armor) |
| Resolution | 0.1 mil (2.54 μm) |
| Linearity | ±1% full scale |
| Frequency Response | 0–10 kHz |
| EMI Protection | 20 V/m at 1 GHz |
| Waterproof Rating | IP67 submersible |
| Vibration Detection | Shaft cracks via vibration patterns |
| Compatibility | All Bently Nevada 3300 XL systems |
Installation Guidelines
- Minimum target size: 1.5× probe diameter (12 mm)
- Cable replacement supported via ClickLoc™ connector
- Calibration recommended every 24 months
- Factory pre-calibrated for immediate deployment
Package & Support
- Includes: Probe, mounting accessories, optional documentation/COO
- Warranty: 12 months
- Global shipping: FedEx, UPS, DHL
Origin, Dimensions & Weight
- Origin: USA
- Dimensions: 8 mm diameter, 3.0″ total case length, 1.2″ unthreaded section
- Weight: Approx. 0.12 kg
Details
| Weight | 0.12 kg |
|---|
