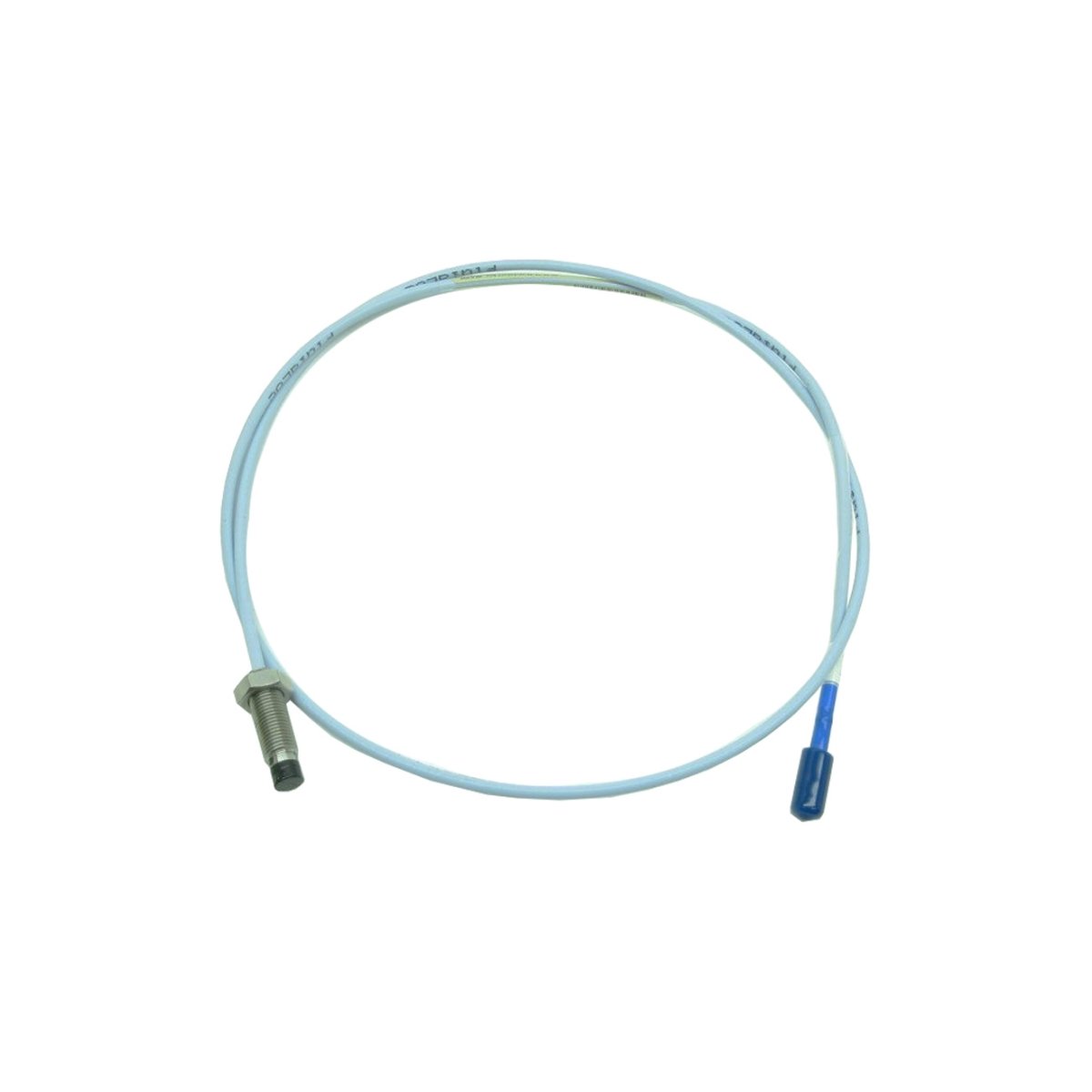

Overview of Bently Nevada 330101-00-40-10-01-CN
The Bently Nevada 330101-00-40-10-01-CN is an 8mm 3300 XL Proximity Probe engineered for precise industrial machinery monitoring. It delivers high-resolution measurements and ensures reliable operation in extreme industrial conditions. The probe supports rapid installation and global deployment for critical applications.
Key Features
- High-sensitivity Proximity Probe for critical equipment
- Resolution down to 0.0001 inches for accurate shaft monitoring
- Frequency range from 0.5 Hz to 12 kHz supports slow and fast shafts
- IP68-rated submersible sensor ensures water resistance
- ClickLoc™ connector with protector for secure installation
- EMI resistance: 30 V/m at 1–2000 MHz
Product Identification & Suffix Explanation
| Suffix | Meaning |
|---|---|
| 330101 | Base model |
| 00 | 0.0″ unthreaded |
| 40 | 4.0″ case length |
| 10 | 1.0m cable length |
| 01 | ClickLoc™ connector with protector |
| CN | China approvals |
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330101-00-40-10-01-CN |
| Case Length | 4.0 inches (101.6 mm) |
| Cable Length | 1.0 meter |
| Sensitivity | 200 mV/mil ±3% |
| Frequency Range | 0.5 Hz – 12 kHz |
| Resolution | 0.0001 inches |
| Vibration Limit | 250 g peak |
| Pressure Rating | 5000 psi non-shock |
| EMI Resistance | 30 V/m at 1–2000 MHz |
| Waterproof Rating | IP68 submersible |
| Compatible Systems | 3300 XL vibration monitoring |
Installation Guidelines
- Minimum cable bending radius: 1.5 inches
- Installation torque: 25–30 lb-in (2.8–3.4 Nm)
- Supports slow-rotating shafts down to 0.5 RPM
- Compatible with hazardous areas using certified barriers
Support & Delivery
- Warranty: 12 months against defects
- Shipping: FedEx, UPS, DHL worldwide
- Origin: USA (Certificate of Origin included)
- Includes: Probe and mounting accessories
Origin, Dimensions & Weight
- Origin: USA
- Dimensions: 8mm probe diameter, 4.0″ case length
- Weight: Approx. 0.15 kg
Details
| Weight | 0.15 kg |
|---|
