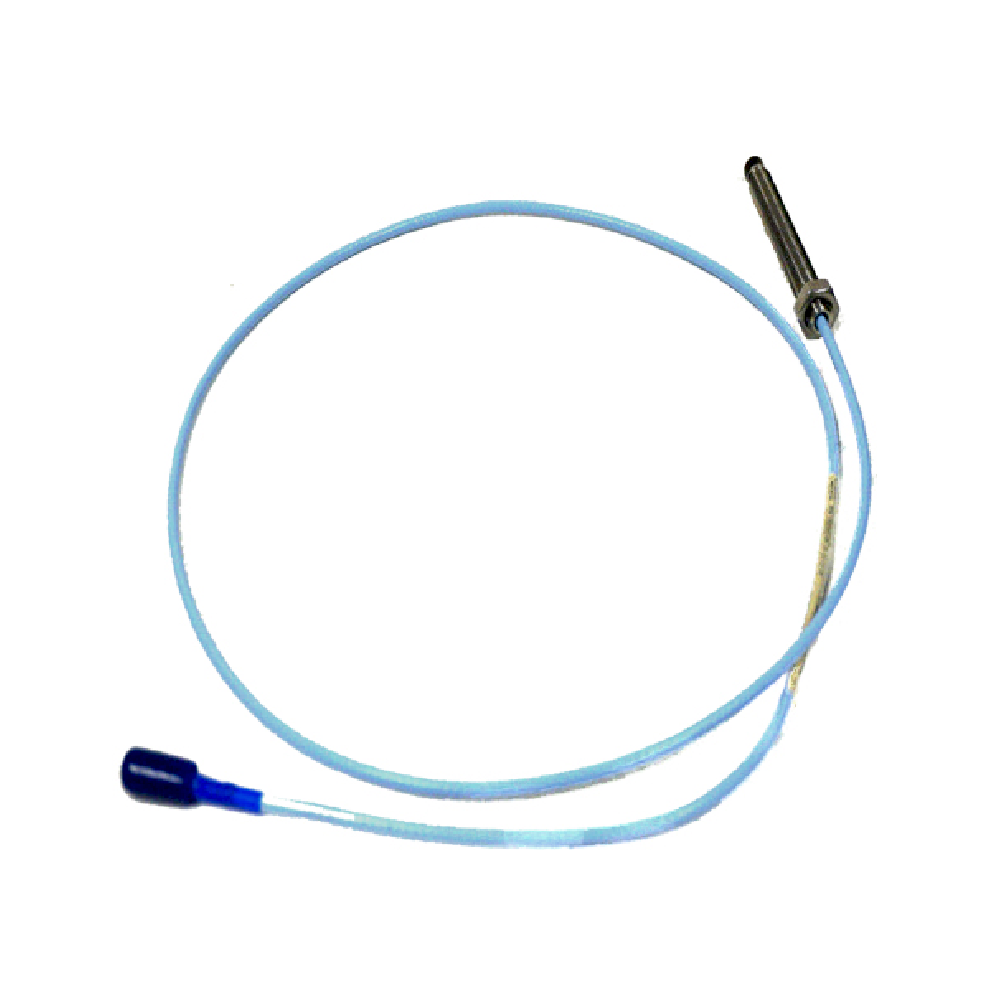

The Bently Nevada 3300 XL 8 mm Probe (Part Number: 330101-00-36-10-02-05) delivers precise vibration measurements for industrial machinery. Designed with a 3/8-24 UNF thread and without armor², this probe integrates easily into monitoring systems. Its robust design ensures reliable performance in demanding environments, supporting both standard and extended temperature ranges.
Key Features
- Model: 3300 XL 8 mm Probe, 3/8-24 UNF thread
- Condition: New & Original in factory packing
- Manufacturer: Bently Nevada
- Warranty: 12 months factory warranty
- Connector & Cable: Miniature coaxial ClickLoc connector, standard cable
- Agency Approvals: CSA, ATEX, IECEx
Ordering Information
| Parameter | Option | Description |
|---|---|---|
| Model | 330101 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor² |
| Unthreaded Length | 00 | 0.0 in |
| Overall Case Length | 36 | 3.6 in |
| Total Length | 10 | 1.0 metre (3.3 feet) |
| Connector and Cable Type | 02 | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval | 05 | CSA, ATEX, IECEx approvals |
Environmental Limits
| Parameter | Standard Probe | Extended Temperature Probe |
|---|---|---|
| Operating & Storage Temperature | -51 °C to +177 °C (-60 °F to +350 °F) | Probe tip: -51 °C to +218 °C (-60 °F to +425 °F) Probe cable & connector: -51 °C to +260 °C (-60 °F to +500 °F) |
| Probe Pressure | Differential pressure sealed by Viton® O-ring | Probes are not pressure tested prior to shipment. Contact custom design department for testing. |
Note: Customers must ensure safe containment of all liquids and gases if leakage occurs. High or low pH solutions may erode the tip assembly, and Bently Nevada is not responsible for damages due to probe leakage. Leaking 3300 XL 8 mm probes are not replaced under the service plan.
Technical Data
- Weight: 323 g (11.4 oz)
Details
| Weight | 0.255 kg |
|---|
