Product Description

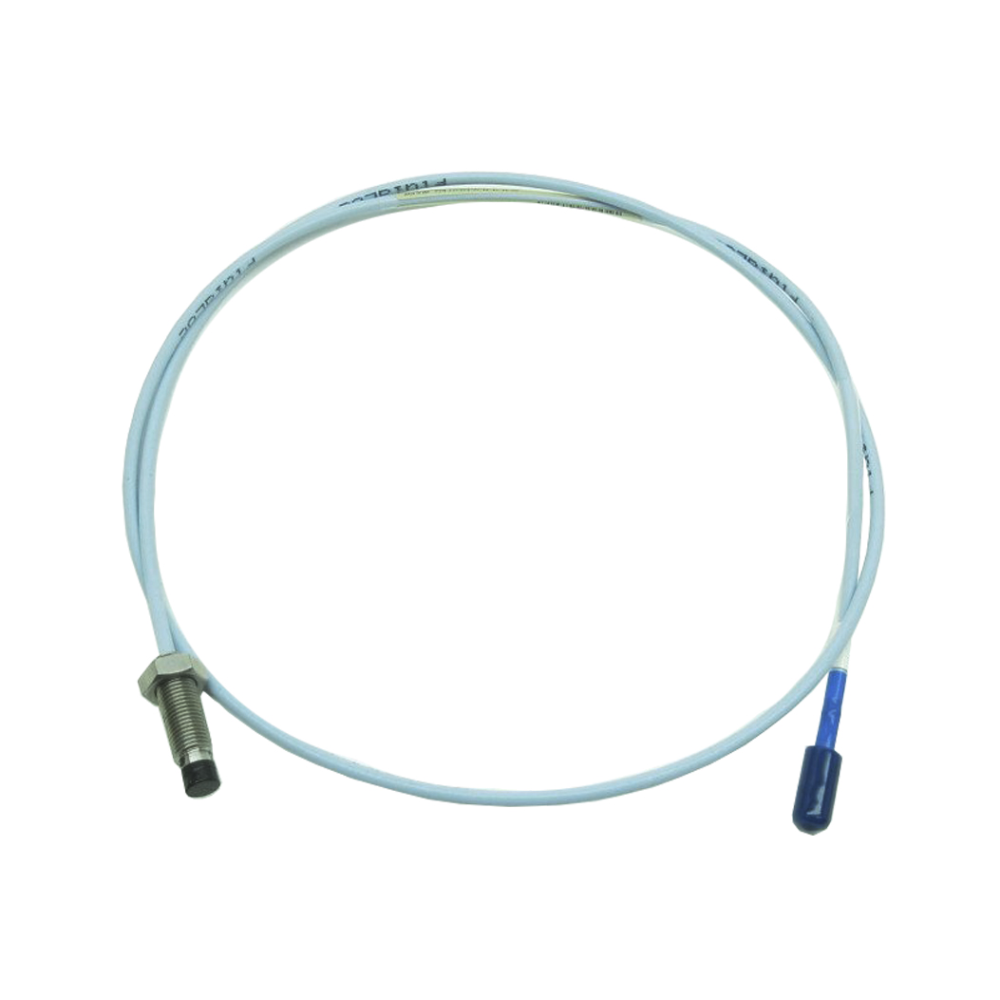

The Bently Nevada 330101-00-18-10-02-05 3300 XL 8 mm Proximity Probe delivers accurate, stable measurements of shaft vibration and position in rotating machinery. It is engineered for critical monitoring applications where precision and durability are vital. Moreover, its rugged construction and FEP-insulated cable provide reliable performance in demanding industrial environments.
This probe uses a miniature ClickLoc connector, ensuring secure attachment and quick installation. Therefore, maintenance teams benefit from reduced setup time and consistent data accuracy.
Key Benefits
The 3300 XL 8 mm proximity probe stands out for its mechanical strength and electrical stability. It supports extended temperature ranges, making it suitable for both standard and extreme industrial conditions. In addition, the probe maintains accurate readings even under variable power supply levels.
Main Advantages:
- Consistent sensitivity across voltage variations (<2 mV per volt change)
- Flexible cable options up to 9 meters for diverse installations
- Sealed with Viton® O-rings for environmental protection
- Fully compatible with Bently Nevada 3300 XL Proximitor Sensors
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330101-00-18-10-02-05 |
| Type | 3300 XL 8 mm Proximity Probe |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA |
| Sensitivity | < 2 mV output variation per volt input change |
| Output Resistance | 50 Ω |
| Cable Type | 75Ω triaxial FEP or PFA insulated |
| Available Cable Lengths | 0.5 to 9 meters |
| Thread / Mounting | 3/8-24 UNF thread |
| Temperature Range | Standard: -52°C to +177°C; Extended: up to +260°C |
| Seal Material | Viton® O-ring |
| Connector Type | Miniature coaxial ClickLoc |
| Part Options | A: 00 (0.0 in) • B: 18 (1.8 in) • C: 10 (1 m) • D: 02 (ClickLoc) |
Furthermore, this model’s robust design ensures minimal drift under high vibration and temperature fluctuations, supporting continuous monitoring in dynamic systems.
System Integration
The Bently Nevada 330101-00-18-10-02-05 integrates seamlessly with 3300 XL proximity measurement systems and Bently Nevada 3500 monitoring platforms. For instance, it can be paired with matching extension cables and Proximitor sensors to form a complete vibration monitoring circuit.
Typical Applications Include:
- Gas and steam turbines
- Centrifugal pumps and compressors
- Electric motors and gearboxes
- Predictive maintenance systems in refineries and power plants
Therefore, its compatibility and reliability make it an excellent choice for long-term asset protection and process safety.
Details
| Weight | 0.323 kg |
|---|
