Product Overview

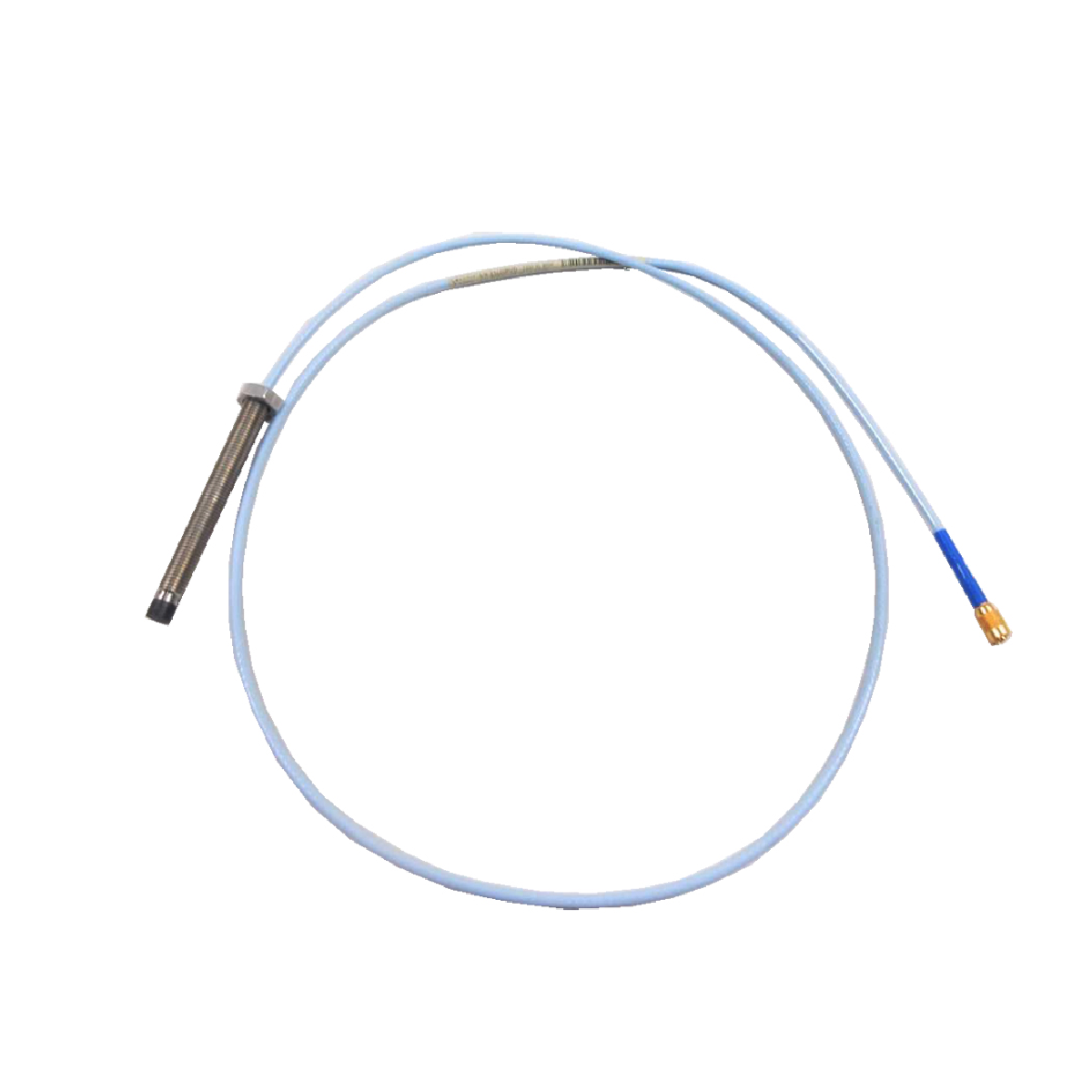

The Bently Nevada 330101-00-16-10-02-00 is part of the 3300 XL 8 mm Proximity Probe System, engineered for superior vibration and shaft position measurement. It provides consistent performance across a wide range of industrial applications, including turbines, compressors, and rotating machinery.
Its TipLoc molding process forms a robust bond between the probe tip and housing, increasing mechanical strength and durability. Moreover, the integrated CableLoc design resists cable pull forces up to 330 N (75 lbf), ensuring long-term reliability even under vibration and temperature fluctuations.
Key Functional Advantages
This 3300 XL proximity probe delivers excellent linearity, high signal accuracy, and improved environmental resistance. Therefore, it provides dependable vibration data for predictive maintenance and machinery protection systems.
Notable Benefits:
- Accurate non-contact shaft vibration and position measurement
- TipLoc molding prevents probe-tip detachment during extended use
- CableLoc reinforcement ensures stable sensor connections
- Optional FluidLoc cable feature prevents oil or fluid leakage
- Backward compatible with 3300 and 3300 XL Proximitor® systems
In addition, its compact and rugged design simplifies installation and reduces maintenance frequency.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 330101-00-16-10-02-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Compatible Sensors | 3300-series 5 mm, 3300 8 mm, 3300 XL 8 mm |
| Power Requirements | -17.5 Vdc to -26 Vdc (max 12 mA) without barriers; -23 Vdc to -26 Vdc with barriers |
| Output Resistance | 50 Ω |
| Supply Sensitivity | < 2 mV change in output per volt input variation |
| Standard Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Extended Range (Probe Tip) | -51°C to +218°C (-60°F to +425°F) |
| Extended Range (Cable/Connector) | -51°C to +260°C (-60°F to +500°F) |
| Unthreaded Length Option | 00 – 0 mm |
| Overall Case Length | 16 – 160 mm |
| Total Cable Length | 10 – 1.0 m (3.3 ft) |
| Connector Type | 02 – Miniature coaxial ClickLoc connector |
| Agency Approval | 00 – Not required |
Operating above –23.5 Vdc may slightly reduce linear range, though system performance remains within acceptable limits.
System Integration
The Bently Nevada 330101-00-16-10-02-00 easily integrates into the 3300 XL Proximitor® Sensor system, connecting directly to an extension cable and Proximitor® unit. For instance, it plays a key role in continuous vibration monitoring systems across power generation, petrochemical, and aerospace industries.
Typical Applications:
- Shaft position and radial vibration measurement
- Compressor and turbine condition monitoring
- Integration with 3300 XL and 3500 Series monitoring racks
- Predictive maintenance and fault detection systems
Furthermore, its flexible configuration options support a wide range of machinery layouts and environments.
Details
| Weight | 0.4 kg |
|---|
