Product Overview

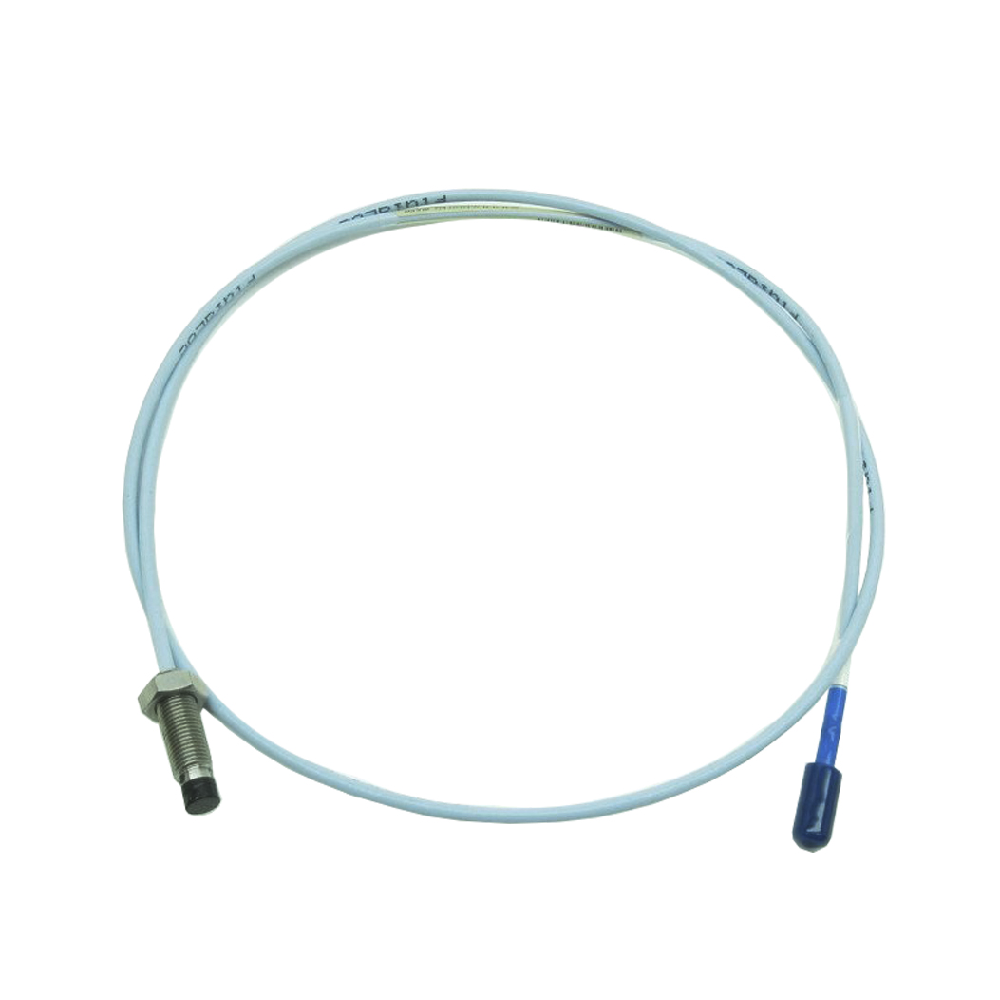

The Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probe provides reliable, high-precision measurements for critical machinery. Moreover, its robust construction ensures long-term durability in harsh industrial environments. In addition, it integrates seamlessly with the 3300 XL monitoring system for vibration and position analysis.
Key Benefits
High-Performance Sensor: Delivers accurate readings for shafts, bearings, and rotating equipment monitoring.
Robust Construction: Probe tip made of PPS, housing in AISI 303/304 stainless steel, providing chemical and mechanical resistance.
Flexible Cable Options: Standard FEP and extended-range PFA insulated cables for various temperature conditions.
Connector Reliability: Miniature ClickLoc connector with gold-plated contacts ensures consistent signal transmission.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330101-00-12-10-02-05 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Torque Specs (Forward) | Maximum: 33.9 N•m; Recommended: 11.2 N•m |
| Torque Specs (Reverse) | Maximum: 22.6 N•m; Recommended: 7.5 N•m |
| Cable Type | Standard: FEP; Extended: PFA |
| Cable Length Options | 0.5, 1, 1.5, 2, 3, 5, 9 meters |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass or beryllium copper |
| Maximum Connector Torque | 0.565 N•m (5 in•lbf) |
| Weight | 323 g/m (11.4 oz) |
| System Length Options | 1, 5, or 9 meters |
| Agency Approvals | CSA, ATEX, IECEx |
System Integration
The 330101-00-12-10-02-05 probe integrates easily into the 3300 XL monitoring system. Therefore, it provides reliable data for rotating machinery, supporting vibration, position, and proximity analysis across turbines, compressors, and pumps. Moreover, it is compatible with standard 3300 XL racks and extension cables.
Details
| Weight | 0.323 kg |
|---|
