Overview

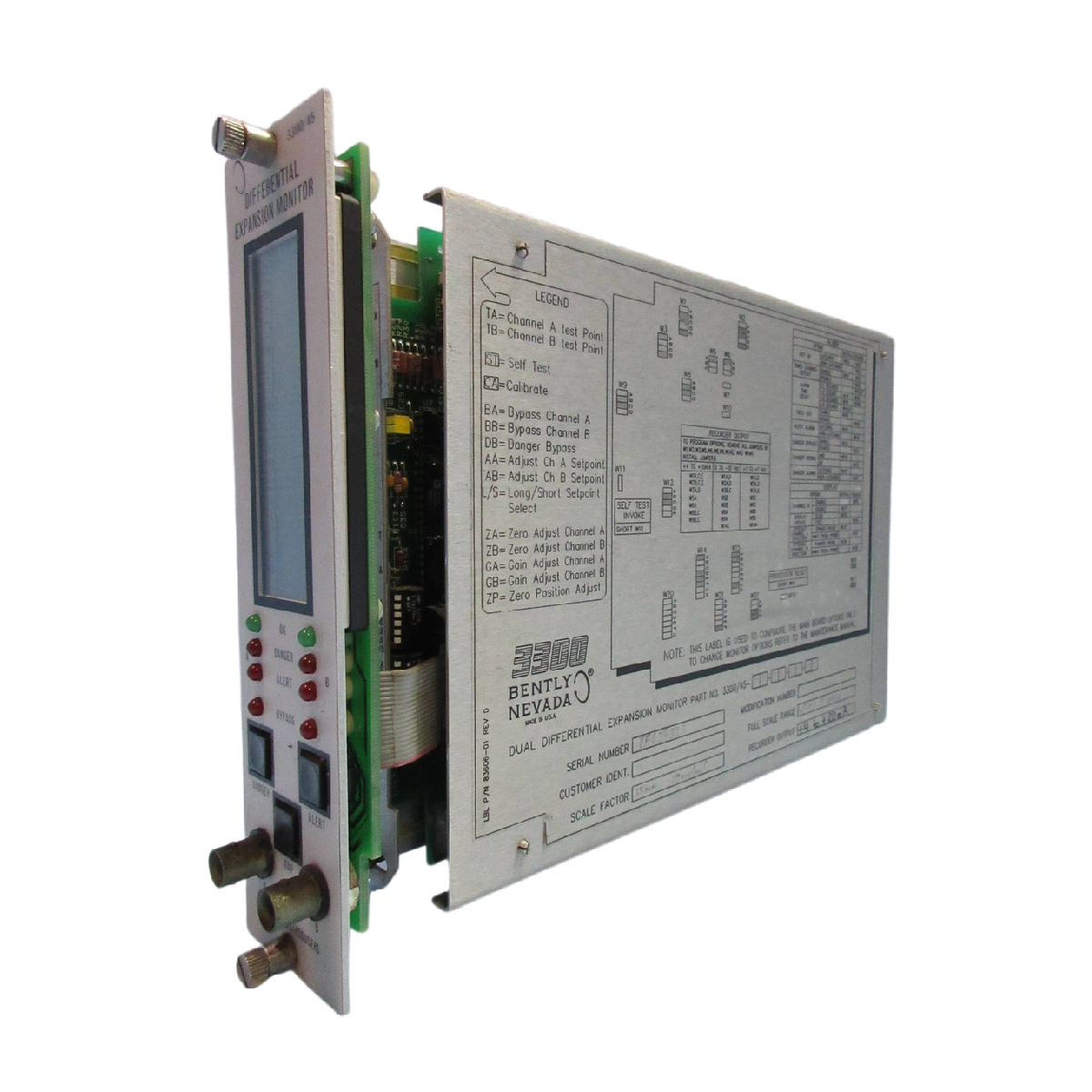

The Bently Nevada 3300/45-02-01-03-00 Dual Differential Expansion Monitor offers advanced monitoring for industrial machinery. It features two channels of continuous differential expansion monitoring, precisely measuring both the magnitude and direction of expansion. The monitor is ideal for applications where accurate expansion measurements are critical.

This model allows for easy alarm configuration with four adjustable alarm setpoints per channel. One channel (Channel B) can be disabled, making it suitable for machines that only require monitoring at a single location.

Technical Specifications

Inputs

• Signal: Accepts two proximity probe transducer signals
• Input Impedance: 10 kΩ
• Signal Scale Factor: 20 mV/mil (0.787 V/mm) or 10 mV/mil (0.392 V/mm), jumper-selectable
• Power Consumption: 1.5 watts nominal

Signal Conditioning

• Accuracy:
  • Typical: ±0.33% of full-scale
  • Maximum: ±1% of full-scale
  • Specified at: Ambient temperature of +25°C (+77°F)

Outputs

• Recorder Outputs (user-programmable):
  • +4 to +20 mA
  • 0 to -10 Vdc
  • +1 to +5 Vdc
• Recorder Accuracy at +25°C / +77°F:
  • +4 to +20 mA: ±0.7% of signal, ±0.09 mA offset
  • +1 to +5 Vdc: ±1.1% of signal, ±10 mV offset
  • 0 to -10 Vdc: ±1.1% of signal, ±15 mV offset
• Output Impedance:
  • Voltage Outputs: 100 Ω (minimum load resistance: 10 kΩ)
  • Current Compliance: 0 to +12 Vdc range across load (0 to 600 Ω for +4 to +20 mA option)

Buffered Transducer Outputs

• One coaxial connector per transducer on the front panel
• One terminal connection per channel on the rear panel
• Short-circuit protection
• Output Impedance: 100 Ω

Transducer Supply Voltage

• -24 Vdc, current-limited per channel

Alarms

• Alarm Setpoints:
  • Both Alert and Danger alarms are adjustable from 0 to 100% of full-scale
  • Alarms adjustable within LCD resolution (±1.6%)
  • Repeatable within ±0.4% of full-scale

Relay Modules

• One relay module can be installed behind each monitor
• Requirement: At least one relay module must be ordered with each 3300 System

Display & Indicators

• Meter Display: Non-multiplexing vertical bargraph LCD
  • Resolution: ±1.6% of monitor full-scale
  • Size: 83 mm (3.25 inches) vertical dimension
• LED Indicators:
  • OK LED: Green (constant ON) for good condition
  • Alarm LEDs: Two red LEDs per channel (independent for Alert and Danger)
  • Bypass LEDs: Red LEDs show Danger Bypass and Rack/Channel Bypass status

Environmental Specifications

• Operating Temperature: 0°C to +65°C (+32°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: Up to 95%, non-condensing

Physical Specifications

• Weight: 1 kg (2.2 lbs.)
• Rack Space:
  • First and second slots reserved for Power Supply and System Monitor
  • Rack size depends on the number of monitors used

Ordering Information

• Part Number: 3300/45-02-01-03-00
• Option Descriptions:
  • A: Full-scale Range Option
  • B: Transducer Input Option
  • C: Alarm Relay Option
  • D: Agency Approval Option

FAQ

Q1: What is the monitoring range of the Bently Nevada 3300/45-02-01-03-00 Dual Differential Expansion Monitor?
A1: The monitor has a full-scale range of up to 10 mm, with jumper-selectable scale factors.

Q2: Can I monitor both channels independently?
A2: Yes, you can configure each channel with different alarm setpoints. Additionally, Channel B can be turned off for single-location measurements.

Q3: How do I configure alarms for the monitor?
A3: Alarms are digitally adjustable from 0 to 100% of full-scale. Both Alert and Danger alarms can be set with ease.

Q4: What kind of power supply does the monitor require?
A4: The monitor operates with a nominal power consumption of 1.5 watts.

Q5: Can I return the monitor if it has quality issues?
A5: Yes, we offer a 30-day return policy for quality-related issues.
